Brother CS8000 Series User Manual

2 - 35
Thread hook mechanism
Main unit
Disassembly
3

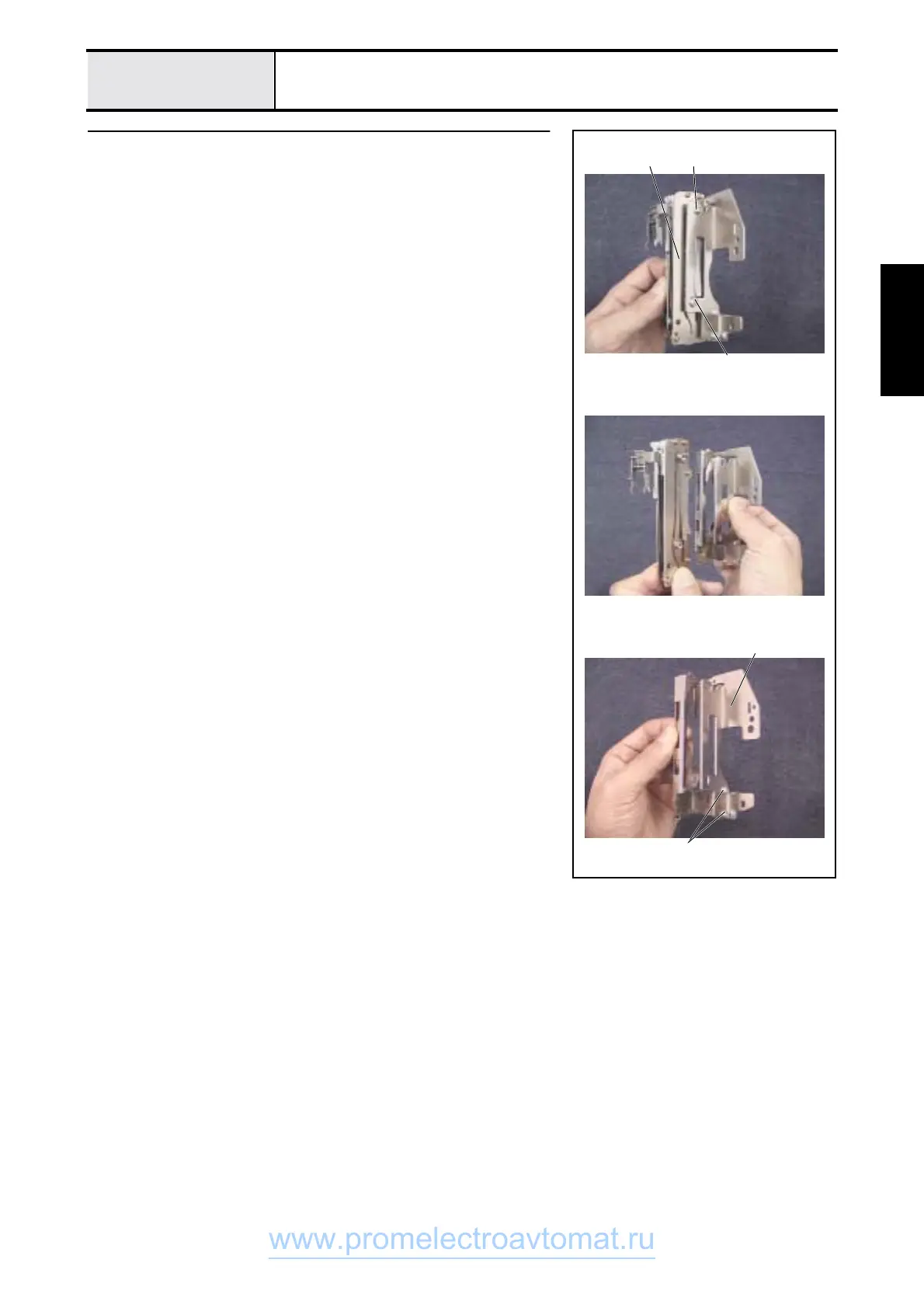

Thread guide base assy. removal
1. Remove screw 1 and screw 2, remove the plain M3 washer, and remove
the thread guide base assy. 1.
2. Remove screws 3 (two), and remove thread take-up lever guide A from
the thread guide base supporter 2.
2
1 1
2
3
