Thread tension mechanism
Main unit
Assembly
7
Cassette hold plate attachment

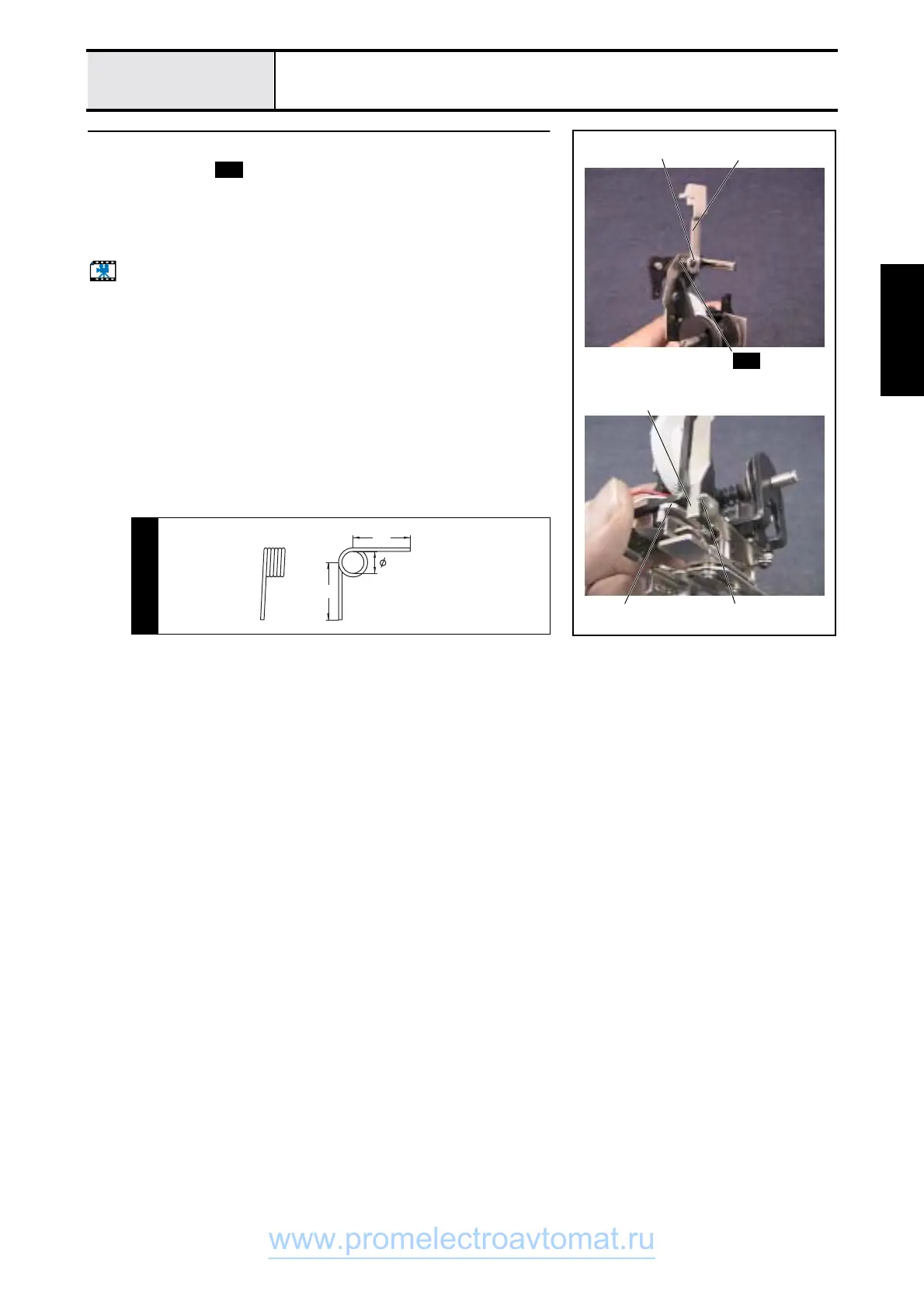

1. Attach spring and the cassette hold plate 1 to the thread tension
holder assy., and attach retaining ring E3.
*Key point
• The end 2 of the cassette hold plate runs between tension
release plate C 3 and tension release plate D 4.
Start movie clip (CD-ROM version only)
S35
1
Retaining ring E3
2
4
S35
3
S35
SPRING
XC3817***
13
13
5
