3 - 9
Thread tension mechanism
Main unit
Assembly
9

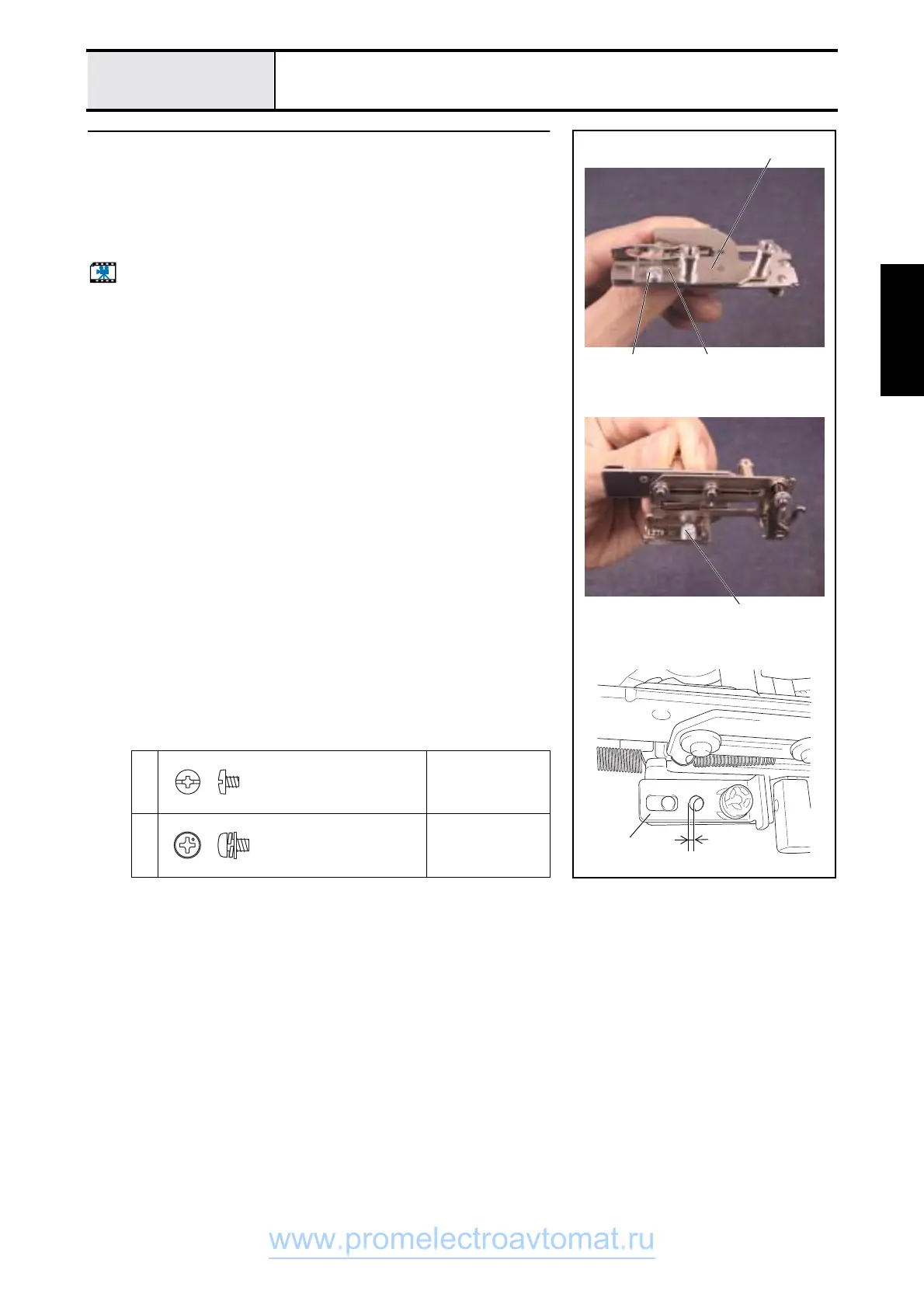

Thread hook assy. assembly 2
1. Attach the link D guide 1 to the supporting plate assy. 2 using screw 1.
2. Attach the link stopper 3 to the supporting plate assy. 2 using screw 2.
*Key point
• Offset the positioning hole in the link stopper approximately
0.8 mm to the right from the positioning hole in the link A assy.
Start movie clip (CD-ROM version only)
1
Torque
0.57 - 0.78 N-m
2
Torque
0.57 - 0.78 N-m
2
1
2
1
2
Link stopper
Approx. 0.8 mm
Screw, Bind
M2.6X3
Color; Silver
Screw, Pan (S/P washer)
M3X5DA
Color; Gold
