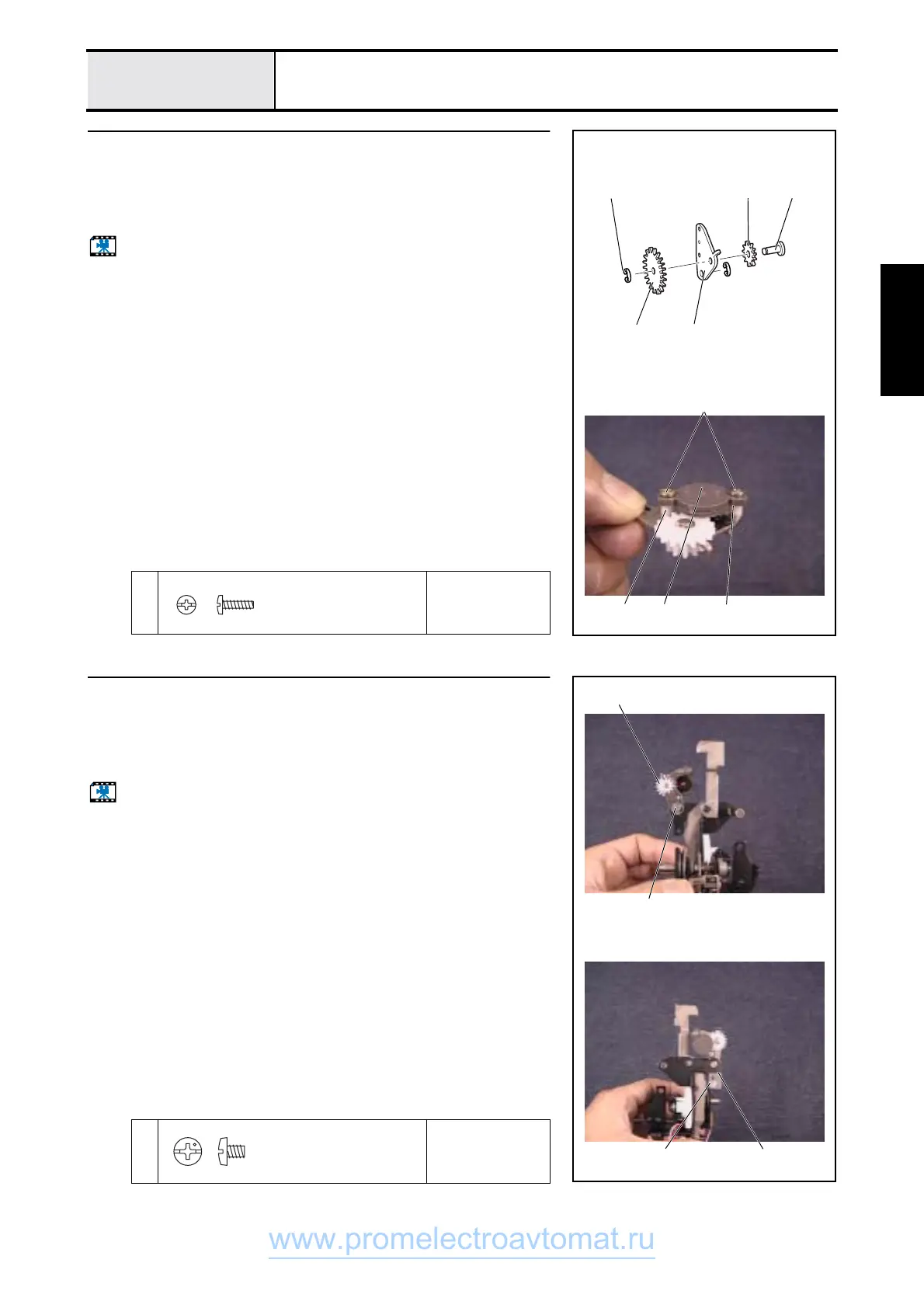

3 - 11
Thread tension mechanism
Main unit
Assembly
11
Damper holder assy. assembly
1. Attach the damper gear shaft 1, gear A 2 and gear B 3 to the damper
holder assy. 4, and attach retaining ring E2.
2. Attach spacers 5 (two) and the oil damper 6 to the damper holder assy.
4 using screws 1 (two).
Start movie clip (CD-ROM version only)
1
Torque
0.29 - 0.49 N-m
1
5 6 7
34
21
Retaining ring E2
Screw, Bind
M2X7
Color; Silver
12
Damper holder assy. attachment
1. Attach the damper holder assy. 1 to the thread tension holder assy., and
attach retaining ring E3.
2. Attach the damper holder spring 2 to the thread tension holder assy. using
screw 1.
Start movie clip (CD-ROM version only)
1
Torque
0.78 - 1.18 N-m
1
Retaining ring E3
1 2
Screw, Bind
M3X4
Color; Silver
