Brother CS8000 Series User Manual

3 - 15
Thread hook mechanism
Main unit
Assembly
2

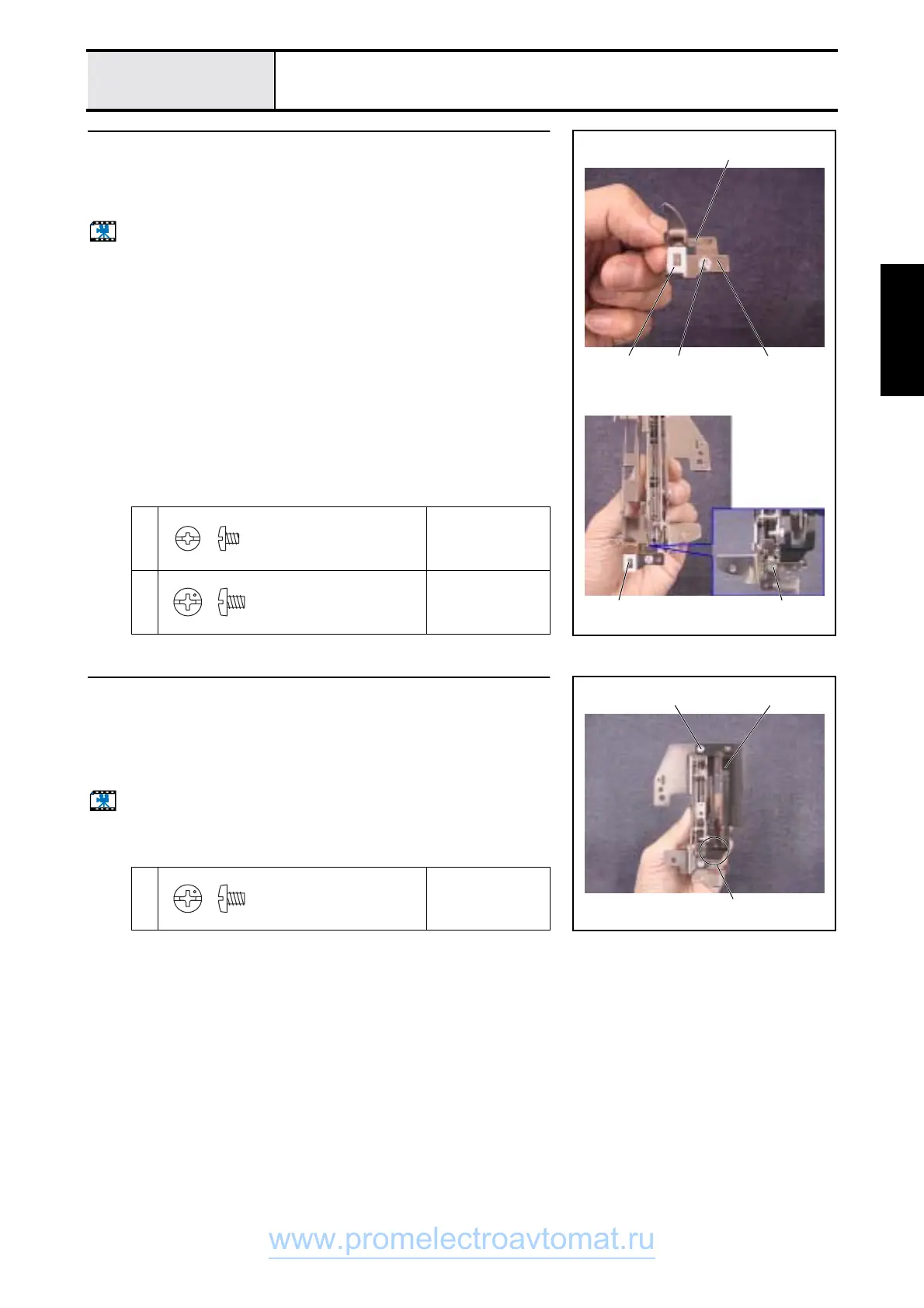

Thread take-up lever guide C attachment
1. Attach the pile cap 2 to the pile holder 1.
2. Attach the pile holder to thread take-up lever guide C 3 using screw 1.
3. Attach thread take-up lever guide C 3 using screw 2.
Start movie clip (CD-ROM version only)
1
Torque
0.29 - 0.57 N-m
2
Torque
0.79 - 1.18 N-m
3
1
3
2
1
2
Rear
Screw, Bind
M2.6X3
Color; Silver
Screw, Bind
M3X4
Color; Silver
3
Thread take-up lever guide B attachment
1. Attach thread take-up lever guide B 1 using screw 1.
*Key point
• Insert the hook on the lower part of thread take-up lever guide
B 1 into the hole in thread take-up lever guide C.
Start movie clip (CD-ROM version only)
1
Torque
0.57 - 0.79 N-m
1 1
Insert the hook in the hole.
Screw, Bind
M3X4
Color; Silver
