Brother DCP-8157DN User Manual

3-18
Confidential

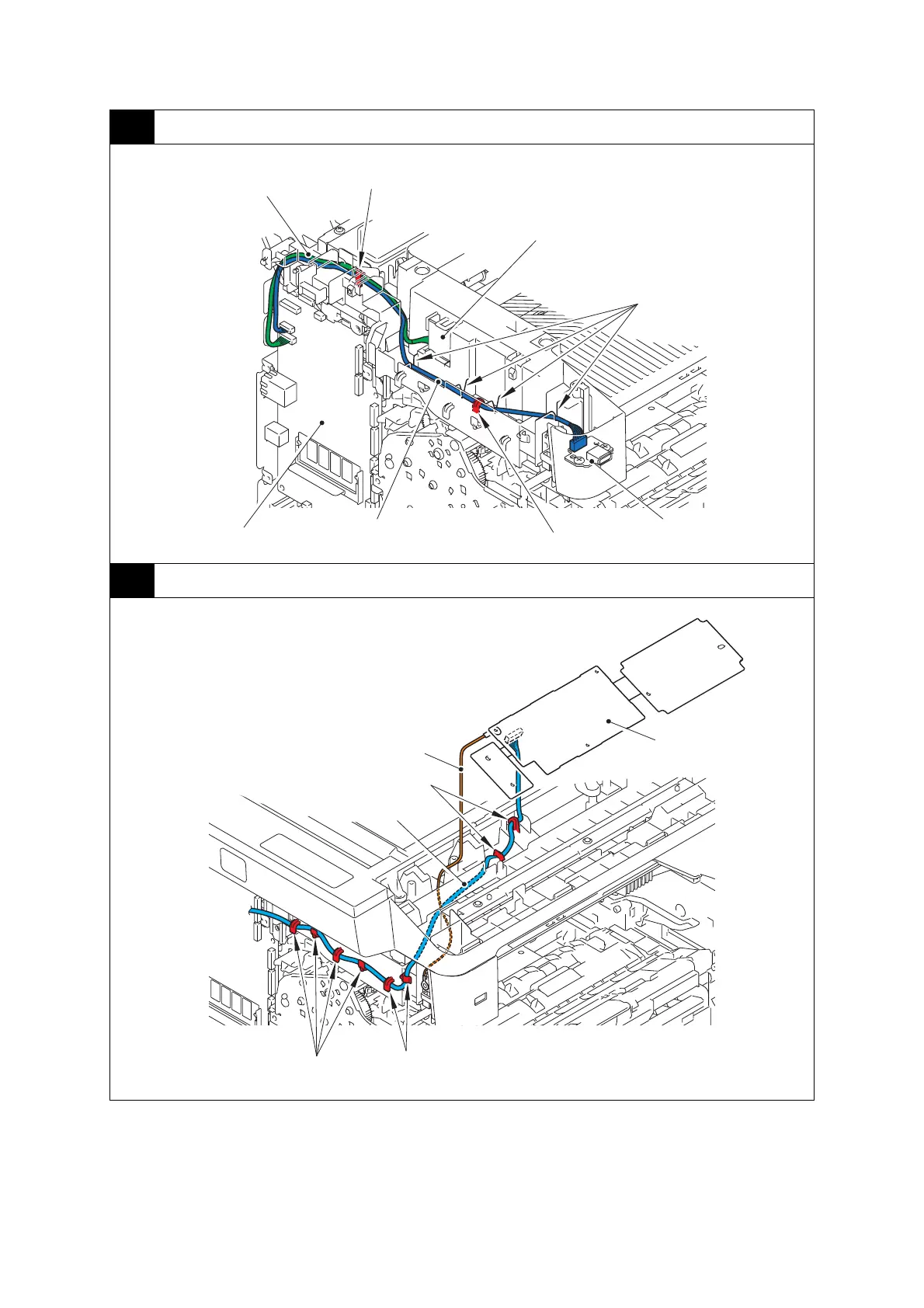

9 Wireless LAN PCB ASSY / USB host PCB ASSY
10 Panel PCB ASSY
Harness colors may be changed for any reason.
Main PCB ASSY
Guide
Guide grooves
Guide
USB host harness (Shield)
Wireless LAN
harness (Shield)
Wireless LAN PCB ASSY
USB host PCB ASSY
Guides
Guides
Panel PCB
harness (BL)
Guides
Panel PCB ASSY
Touch panel PCB harness (BL)

Brother DCP-8157DN Specifications

General

Print Technology	Laser
Max Resolution (B&W)	1200 x 1200 dpi
Duplex Printing	Yes
Scan Resolution	1200 x 1200 dpi
Network Ready	Yes
Functions	Copier, Printer, Scanner
Scanner Type	Flatbed, ADF
Interface	USB, Ethernet
Print Resolution	1200 x 1200 dpi
Connectivity	USB, Ethernet
Operating Systems Compatibility	Windows, Mac, Linux
