Brother DCP-8157DN User Manual

3-83
Confidential
(2) Remove the two taptite bind B M4x12 screws, and release the hook to open the upper
side of the hold cover 2.
(3) Release the main fan harness from the securing fixtures, and remove the main fan from
the machine.

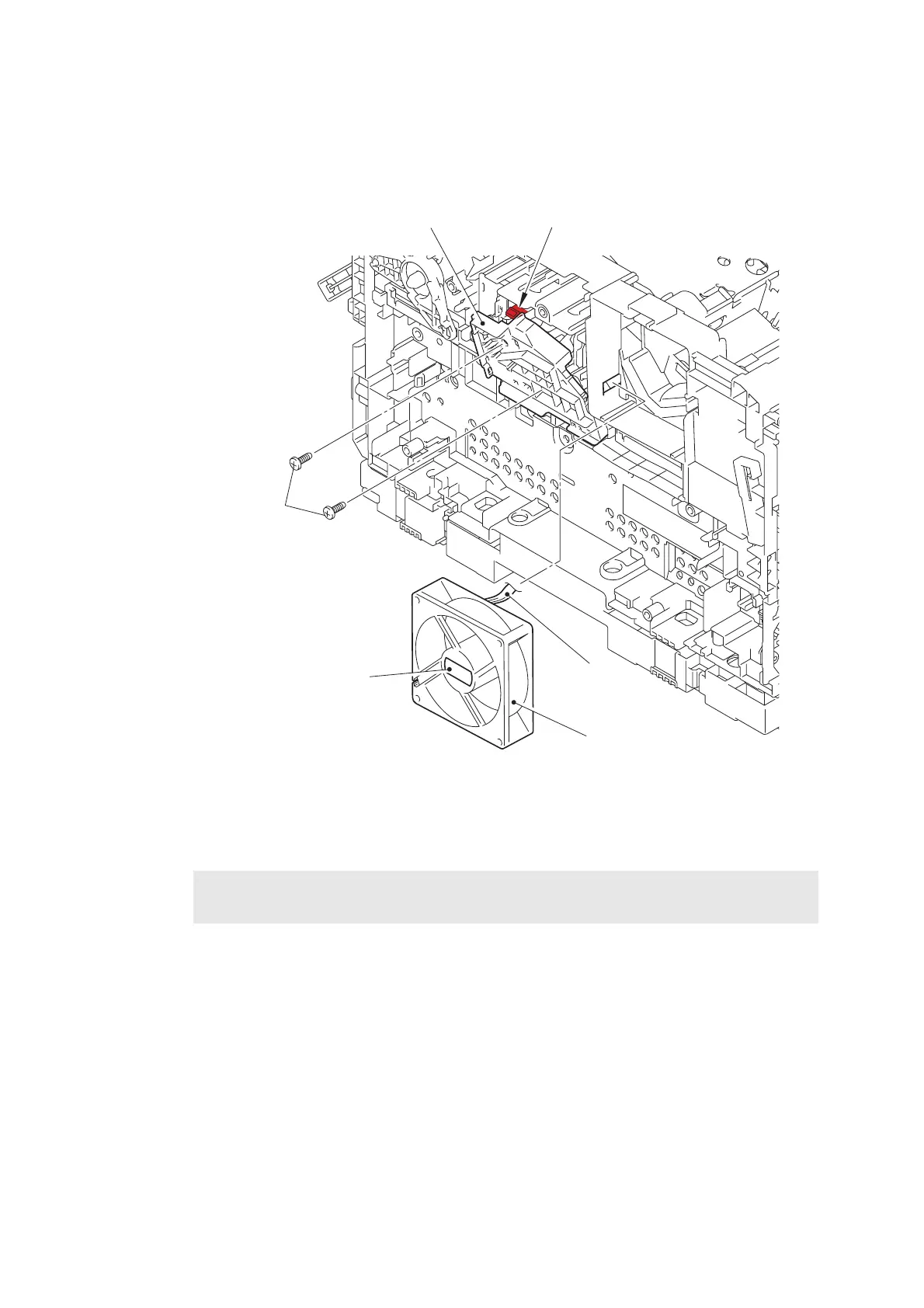

Fig. 3-112
Harness routing: Refer to “5.Toner LED PCB ASSY/Main fan”.
Assembling Note:
• Attach the main fan so that the surface with the label faces out.
Main fan
Label
Taptite bind B M4x12
Hold cover 2 Hook
Main fan
harness

Brother DCP-8157DN Specifications

General

Print Technology	Laser
Max Resolution (B&W)	1200 x 1200 dpi
Duplex Printing	Yes
Scan Resolution	1200 x 1200 dpi
Network Ready	Yes
Functions	Copier, Printer, Scanner
Scanner Type	Flatbed, ADF
Interface	USB, Ethernet
Print Resolution	1200 x 1200 dpi
Connectivity	USB, Ethernet
Operating Systems Compatibility	Windows, Mac, Linux
