Brother DCP-8157DN User Manual

3-113
Confidential
(5) Turn MP paper empty actuator 2 in the direction of arrow 5a, and push the hook in the
direction of arrow 5b to slide MP paper empty actuator 1 in the direction of arrow 5c to
remove it from the MP feed frame in the direction of arrow 5d.
(6) Turn MP paper empty actuator 2 in the direction of arrow 5a, and remove it from the MP
feed frame in the direction of arrow 6.
(7) Remove the taptite bind B M3x10 screw, and remove the MP paper empty sensor PCB
ASSY from the MP feed frame.

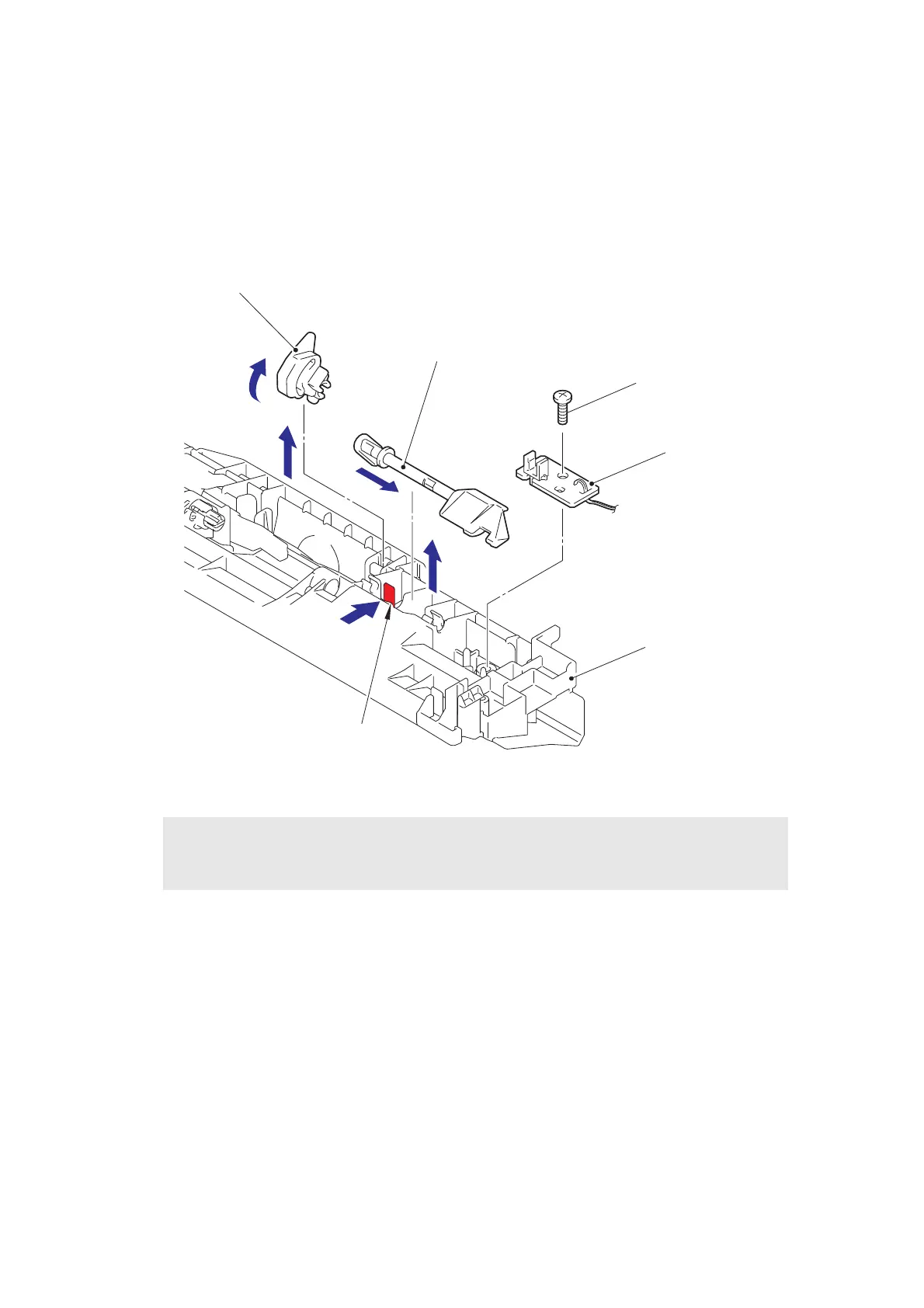

Fig. 3-142
Assembling Note:
• Insert the end of MP paper empty actuator 1 into the groove on MP paper empty
actuator 2.
Taptite bind B M3x10
MP paper empty sensor
PCB ASSY
MP feed frame
Hook
MP paper empty actuator 2
MP paper empty actuator 1
6
5c
5d
5a
5b
