(6) Remove the taptite bind B M3x10 screw, and release the hook to remove the T2 paper
feed actuator holder ASSY from the T2 paper feed frame unit. Then pull out the T2 paper
feed sensor harness from the T2 paper feed frame unit.

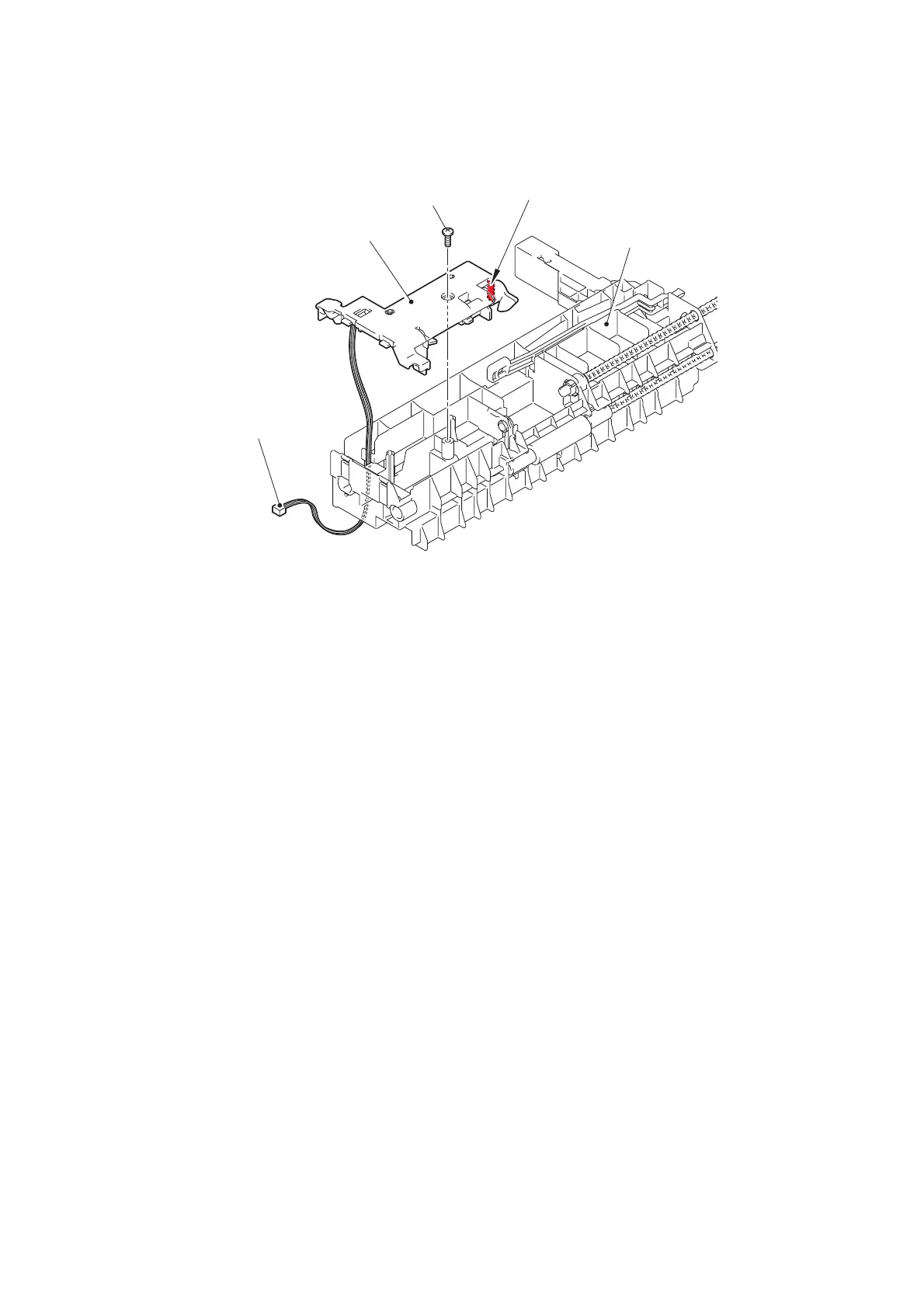

Fig. 3-161
Taptite bind B M3x10
Hook
T2 paper feed frame unit
T2 paper feed actuator holder ASSY
T2 paper feed sensor harness
To Next Page
