7-9
Confidential

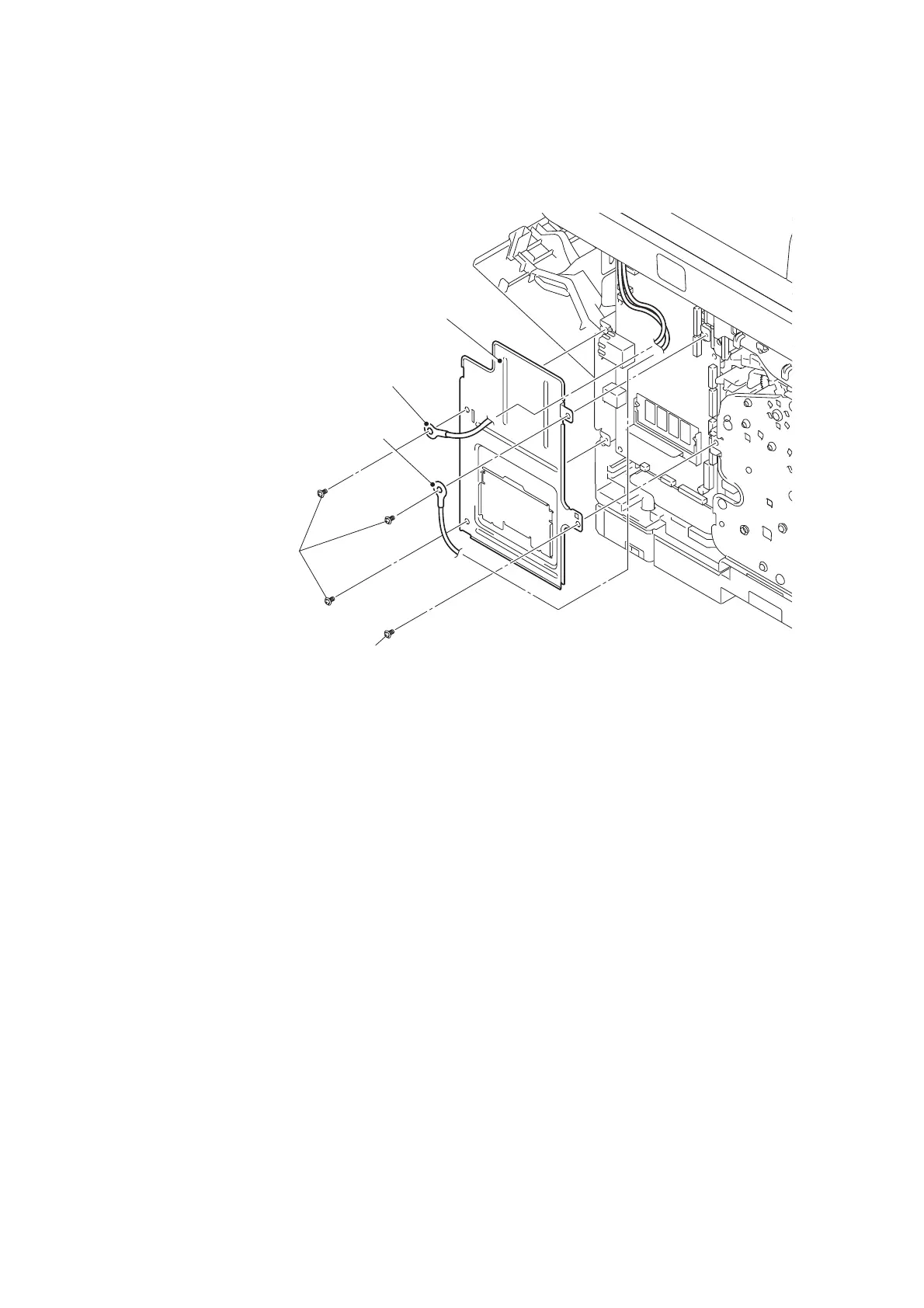

(7) Remove the four taptite cup S M3x8 SR screws to remove the ADF earth harness,
document scanner earth harness, and main shield cover plate from the machine.
The main shield cover plate is not provided for models with a tray capacity of 500 sheets.
Therefore, remove the screw securing the ADF earth harness, the screw securing the
document scanner earth harness, and screw A.
Fig. 7-13
Harness routing: Refer to “1.Main PCB ASSY”.
Taptite cup S M3x8 SR
Taptite cup S M3x8 SR “A”
Main shield cover plate
ADF earth harness
Document scanner earth harness

Brother DCP-8157DN Specifications

General

Print Technology	Laser
Max Resolution (B&W)	1200 x 1200 dpi
Duplex Printing	Yes
Scan Resolution	1200 x 1200 dpi
Network Ready	Yes
Functions	Copier, Printer, Scanner
Scanner Type	Flatbed, ADF
Interface	USB, Ethernet
Print Resolution	1200 x 1200 dpi
Connectivity	USB, Ethernet
Operating Systems Compatibility	Windows, Mac, Linux
