Brother DCP-8157DN User Manual

7-11
Confidential
(9) Pull out the wireless LAN harness and the USB host harness from the main PCB shield
calking ASSY.
(10) Remove the screw pan (S/P washer) M3.5x6 DA screw to release the NCU earth
harness, and remove the NCU earth harness from the guide on the machine.
(11) Remove the four taptite bind B M4x12 screws and the taptite cup S M3x8 SR screw.
(12) Release the six hooks, and slide the joint cover in the direction of the arrow to remove it
from the machine.

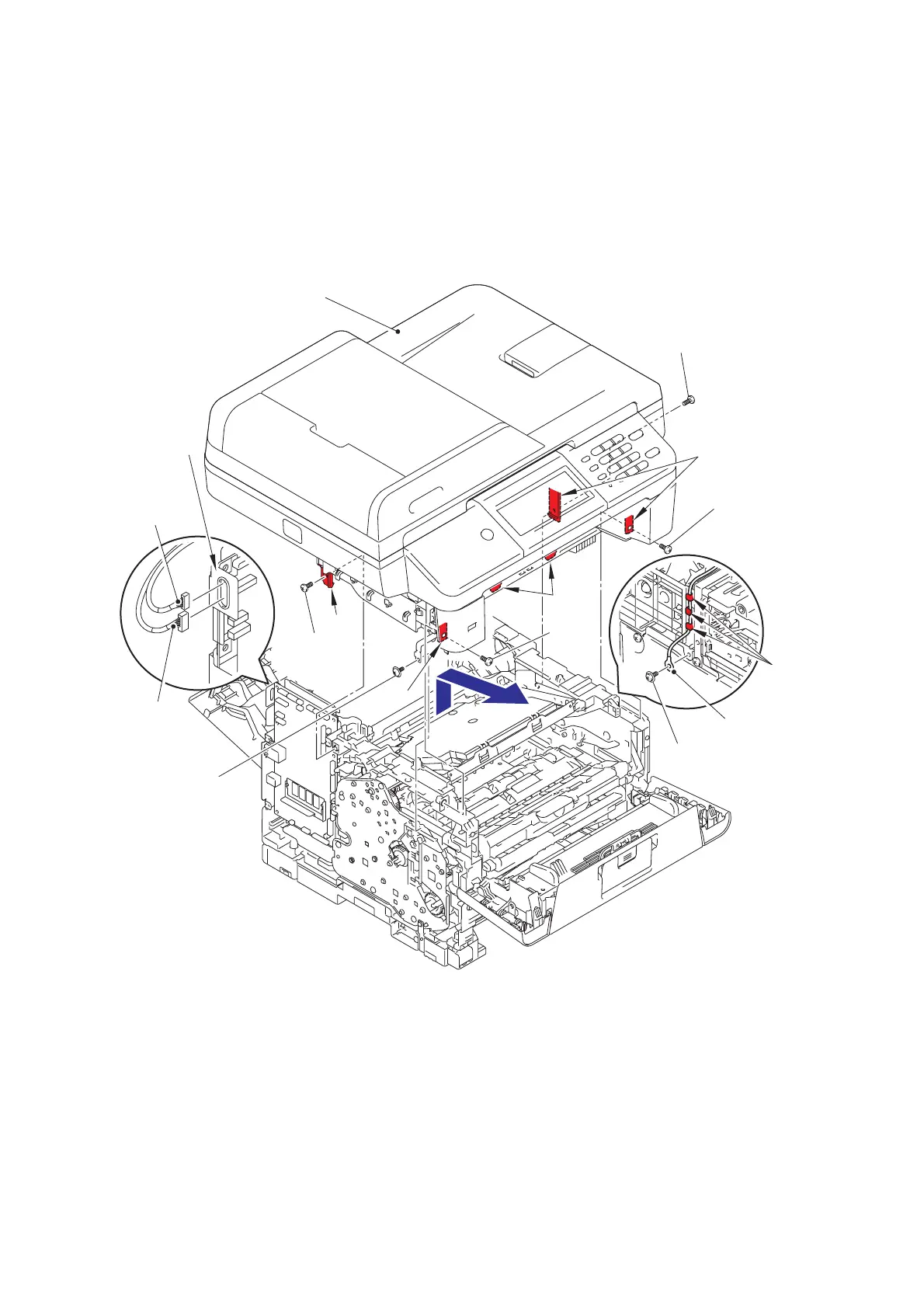

Fig. 7-15
Joint cover
Taptite bind B M4x12
Main PCB
shield calking
ASSY
USB host
harness
Wireless LAN
harness
Taptite bind B
M4x12
Hooks
Pan (S/P washer)
M3.5x6 DA
NCU earth harness
Guides
Taptite bind B
M4x12
Hooks
Taptite
bind B
M4x12
Taptite cup S M3x8 SR
Hook
Hook

Brother DCP-8157DN Specifications

General

Print Technology	Laser
Max Resolution (B&W)	1200 x 1200 dpi
Duplex Printing	Yes
Scan Resolution	1200 x 1200 dpi
Network Ready	Yes
Functions	Copier, Printer, Scanner
Scanner Type	Flatbed, ADF
Interface	USB, Ethernet
Print Resolution	1200 x 1200 dpi
Connectivity	USB, Ethernet
Operating Systems Compatibility	Windows, Mac, Linux
