Before Using Your Printer for the First Time

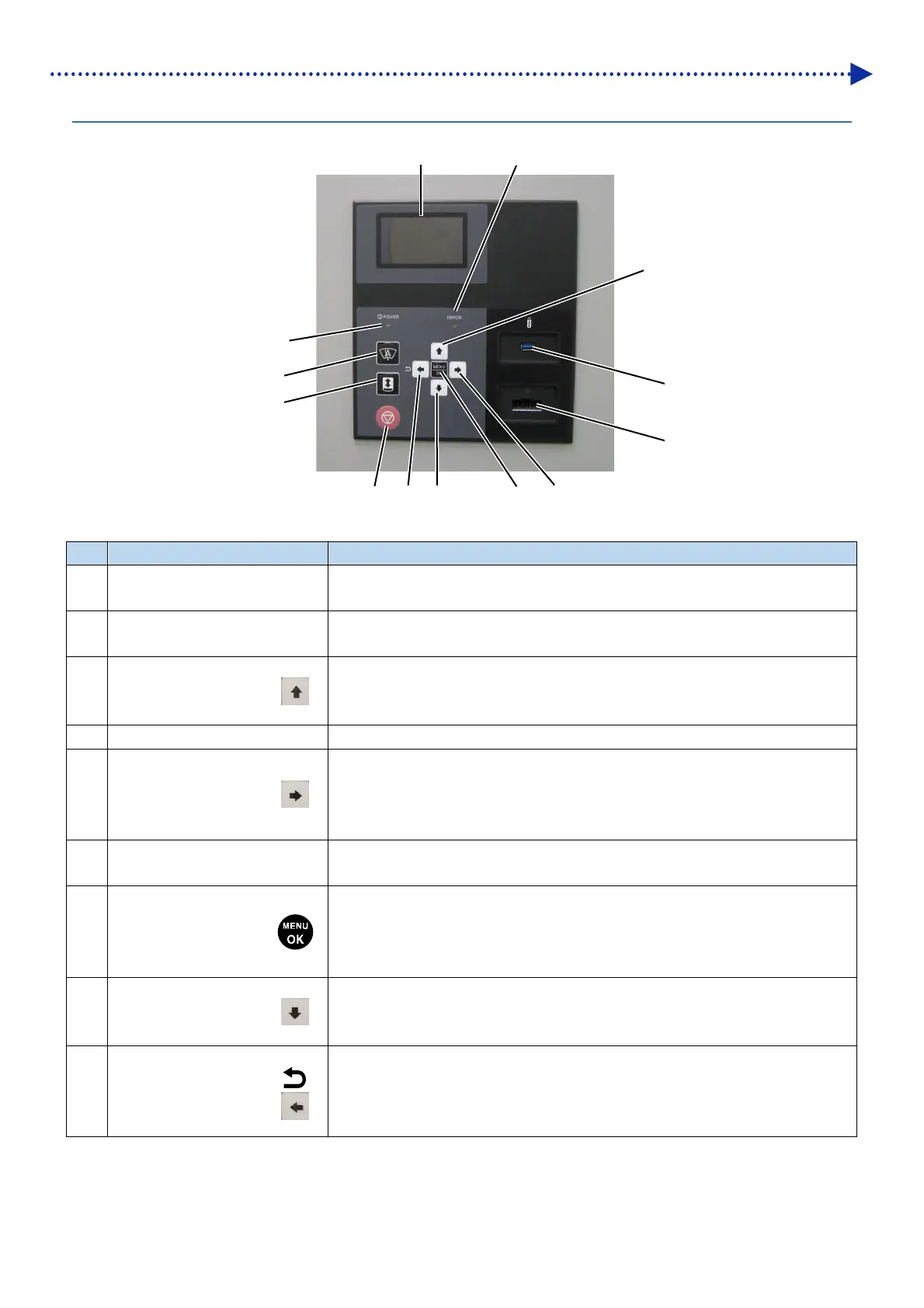

1-4-5. Operation panel

No. Name Function

1 Liquid crystal panel

It indicates the job name or file name of print data, the active status of the

printer, and the menu for various settings.

2 Error LED

When it remains off: No error has occurred.

When it remains on: One or more errors have been detected.

3 Up-arrow button

While the menu screen is being displayed, use this button to select your

desired menu item.

In the numeric value setting menu, use this button to increase the target value.

4 USB flash insertion slot Insert a USB flash memory into this slot.

5 Right-arrow button

While the menu screen is being displayed, use this button to select your

desired lower-level (right) menu item.

While the standby mode screen is being displayed, use this button to display a

warning when any warning message appears.

6 IC stick insertion slot

This slot accommodates the IC stick that contains the color information for use

when refilling the ink.

7 MENU/OK button

If this button is pressed when the printer is placed in the standby state, the

menu screen will appear.

While the menu screen or the error screen is being displayed, use this button to

finalize and accept the currently displayed content.

8 Down-arrow button

While the menu screen is being displayed, use this button to select your

desired menu item.

In the numeric value setting menu, use this button to decrease the target value.

Back button /

Left-arrow button

While the menu screen is being displayed, use this button to return to only one

upper-level (left) menu screen.

If this button is pressed when the printer is placed in the standby state, the

printer status will be displayed.
