Brother HL-4150CDN - Page 398

7-8
Confidential

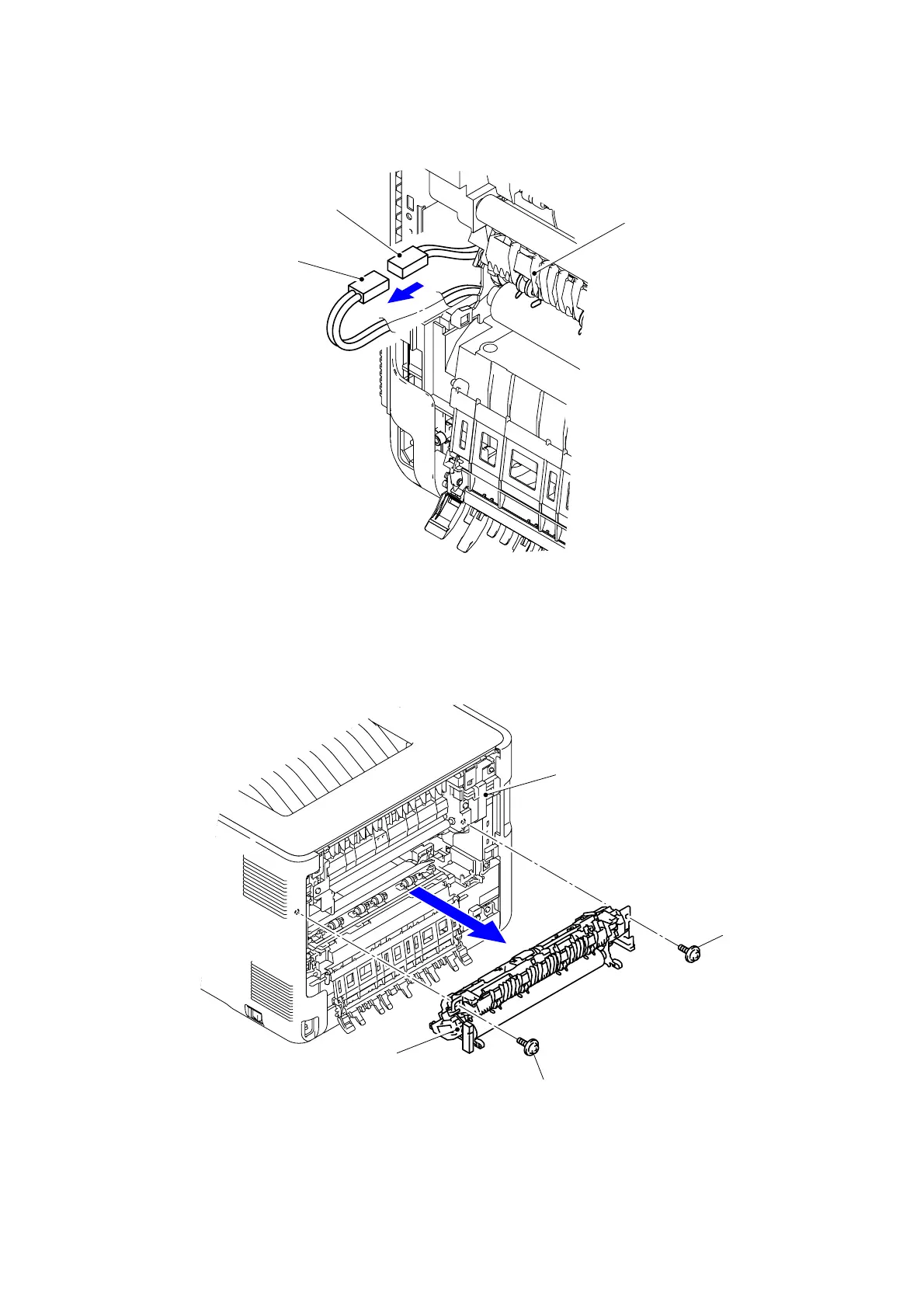

(13) Disconnect the Electrode terminal from the Fuser unit.
Fig. 7-11
(14) Remove the two Taptite pan B M4x14 screws to remove the Fuser unit from the Main
body.
Fig. 7-12
Fuser unit
Electrode terminal (small)
Electrode terminal (large)
Main body
Taptite pan B M4x14
Taptite pan B M4x14
Fuser unit
<Back side>
