Brother HL-4570CDW - Page 267

3-119
Confidential

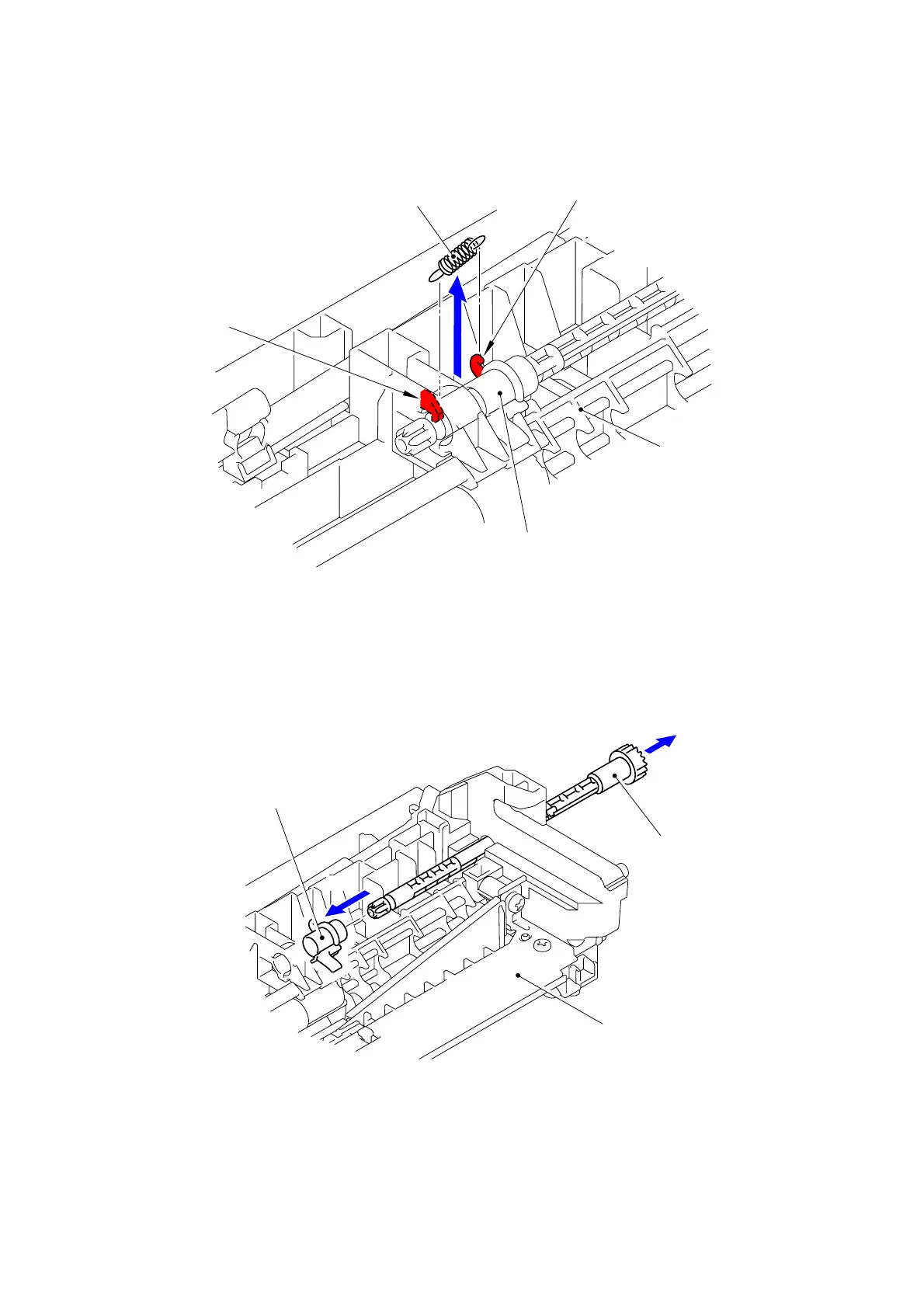

(5) Remove the T1 paper edge actuator spring from the Hook of the PF ASSY and the Hook
of the T1 paper edge actuator.
Fig. 3-160
(6) Take out the T1 drive shaft gear Z17M07 from the PF ASSY, and then remove the T1
paper edge actuator.
Fig. 3-161
Hook
T1 paper edge actuator spring
PF ASSY
T1 paper edge actuator
Hook
PF ASSY
T1 drive shaft gear Z17M07
T1 paper edge actuator
6a
6b
