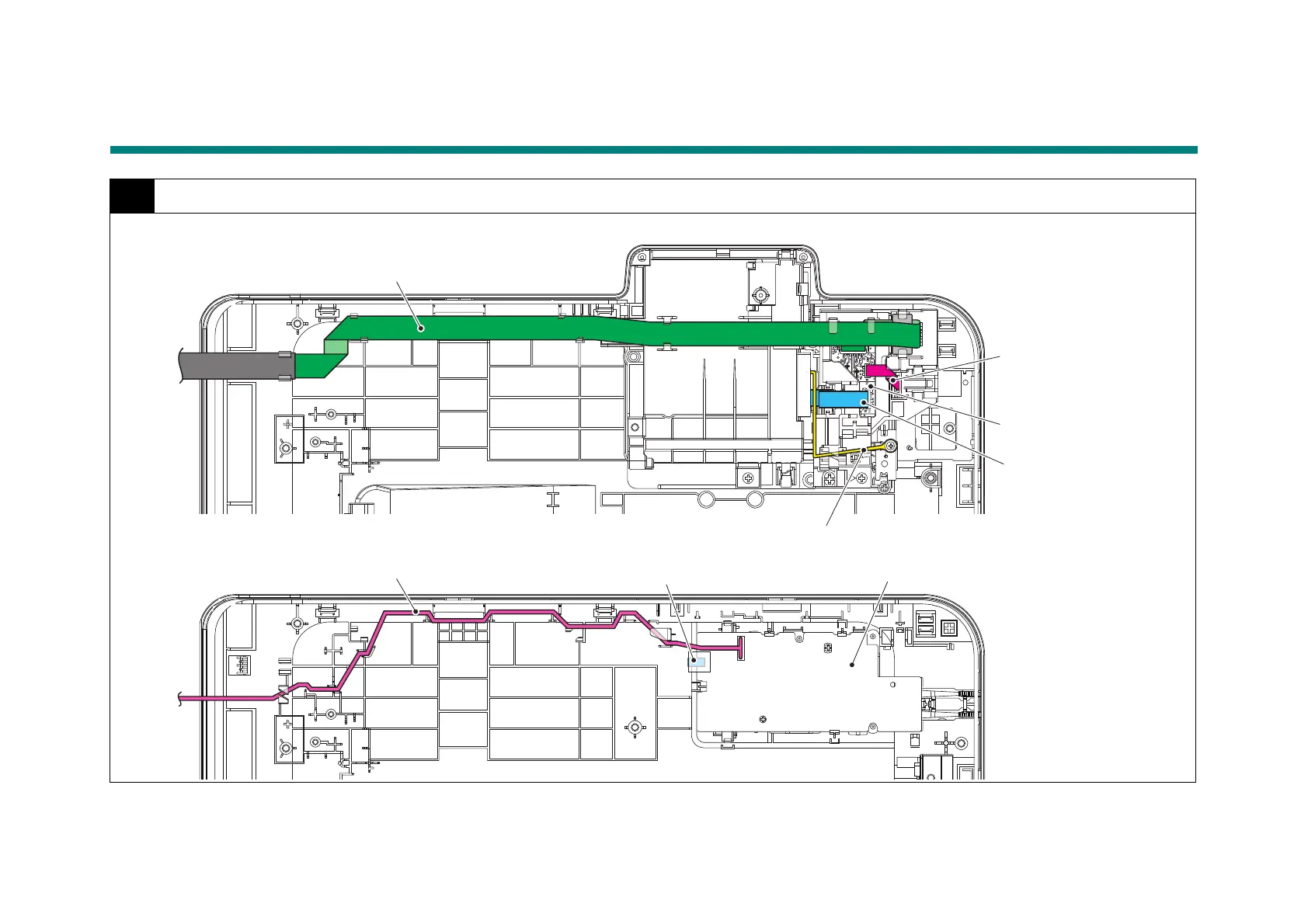

7. HARNESS ROUTING
1
Top cover ASSY
Harness colors are subject to change for some reason.
Panel flat cable
NFC flat cable
Panel relay PCB
Panel relay flat cable
Panel ground wire (BL)
<Touch panel models>
<Non-touch panel models>
LCD flat cable
Panel harness (WH)
Panel PCB
