Brother HL-L3210CW - Eject Sensor PCB

3-71
Confidential
9.20 Eject sensor PCB
(1) Disconnect the Registration mark sensor L harness, the Registration mark sensor R
harness, and the Internal temperature sensor harness from the Eject sensor PCB.
(2) Release the Eject sensor harness from the securing fixtures. Release the Hook to remove
the Eject sensor PCB. Disconnect the Eject sensor harness from the Eject sensor PCB.

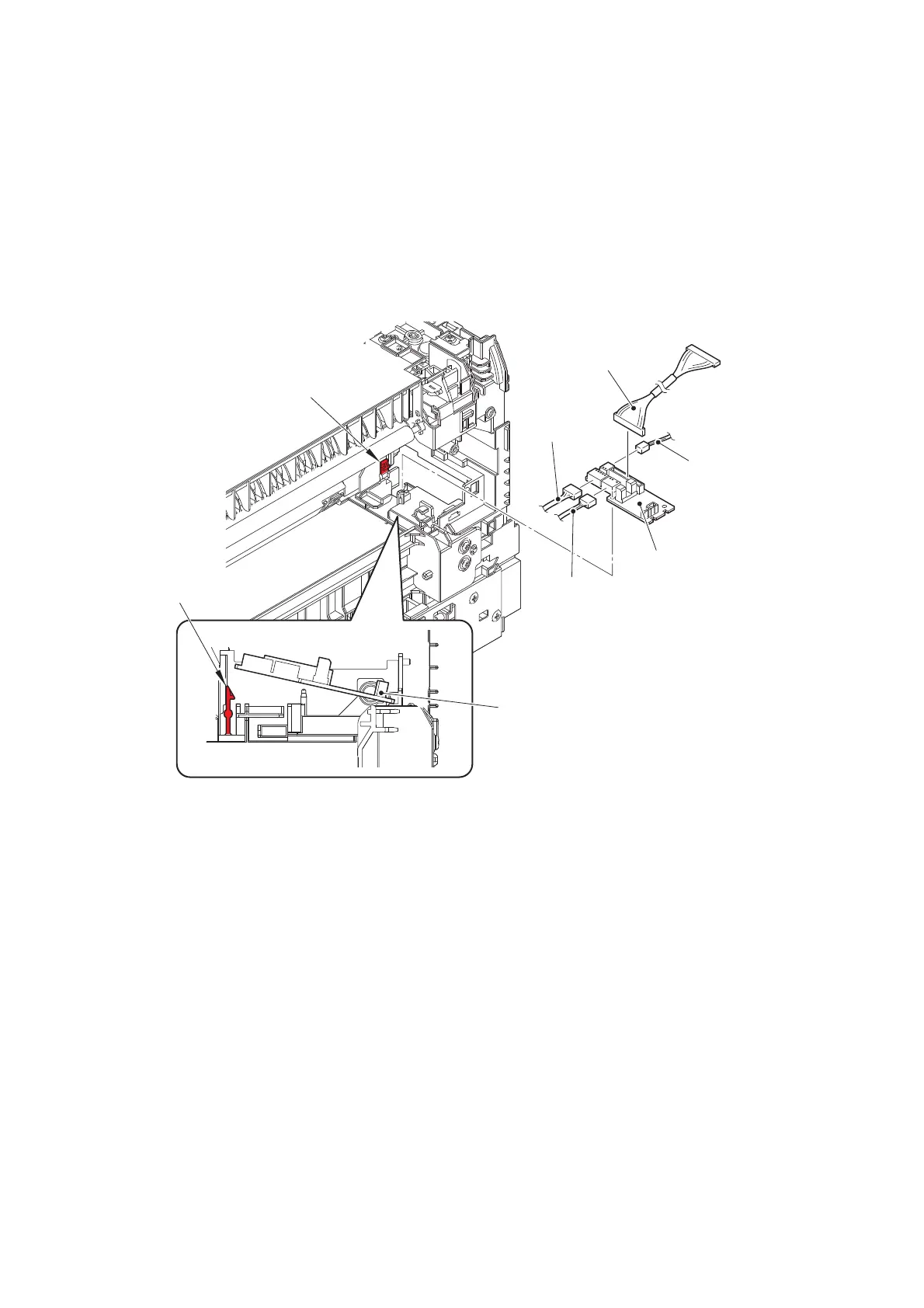

Fig. 3-62
Harness routing: Refer to “7. Registration mark sensor ASSY, Eject sensor PCB”.
Hook
Eject sensor PCB
Hook
Eject sensor PCB
Eject sensor
harness
Registration
mark sensor L
harness
Registration mark
sensor R harness
Internal
temperature
sensor harness
<Back side>
