9.21 Manual feed cover ASSY

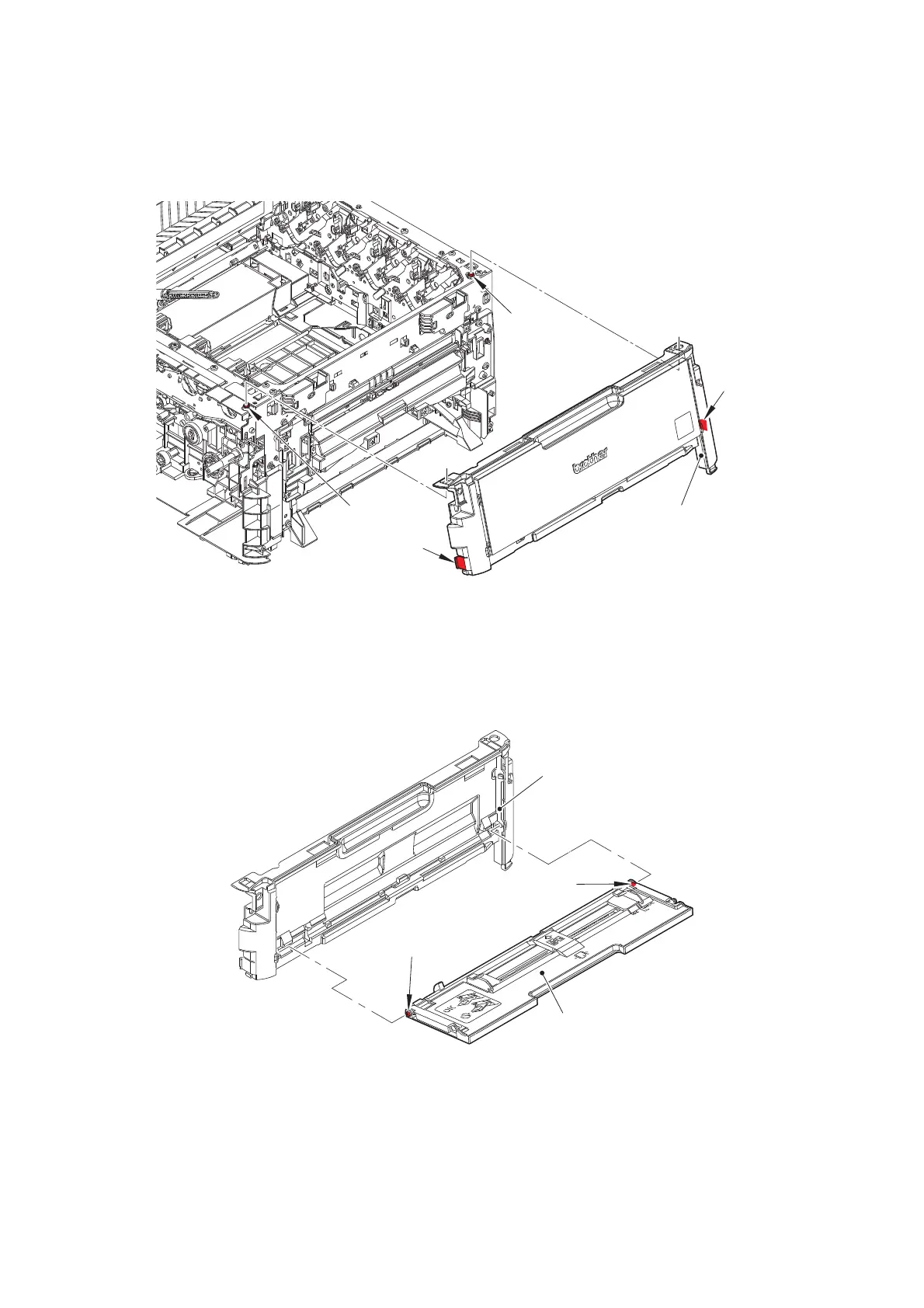

(1) Release each Hook to remove the Inner front cover from the Bosses of the machine.
Fig. 3-63
(2) Open the Manual feed cover ASSY. Release each Boss to remove the Manual feed cover
ASSY from the Inner front cover.
Fig. 3-64
Hook
Inner front cover
Hook
Boss
Boss
Inner front cover
Boss
Boss
Manual feed cover ASSY
