9. DISASSEMBLY PROCEDURE
9.1 Preparation
 Disconnecting cables and removing accessories
Prior to proceeding with the disassembly procedure,
(1) Unplug
- the AC cord, and
- the LAN cable, if connected.
(2) Remove
- the Toner cartridge & Drum unit,
- the Belt unit,
- the Waste toner box,
- the Paper tray, and
- the LAN port cap.

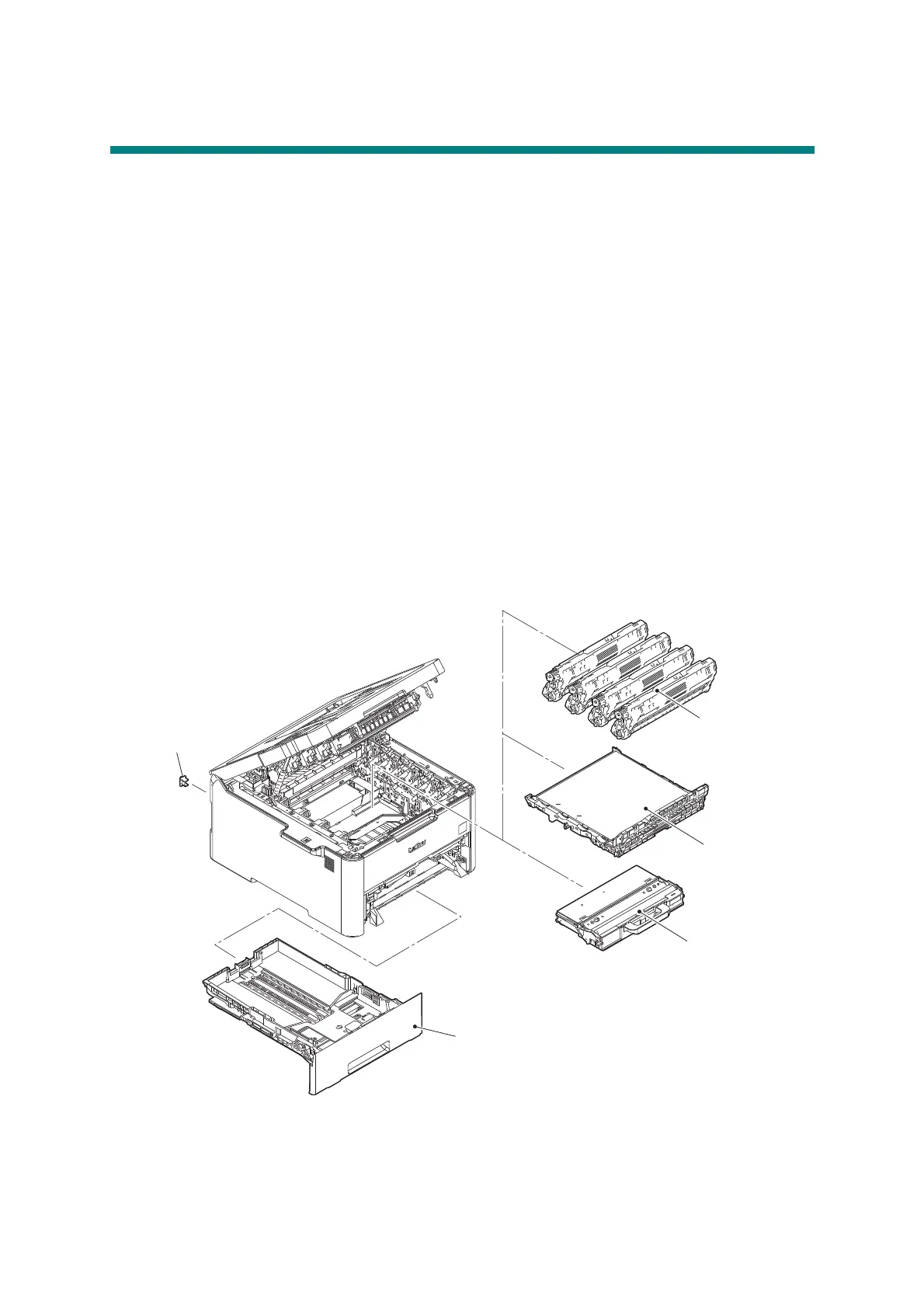

Fig. 3-1
LAN port cap
Toner cartridge &
Drum unit
Belt unit
Waste toner box
Paper tray
