9.5 Fuser cover ASSY / Fuser unit

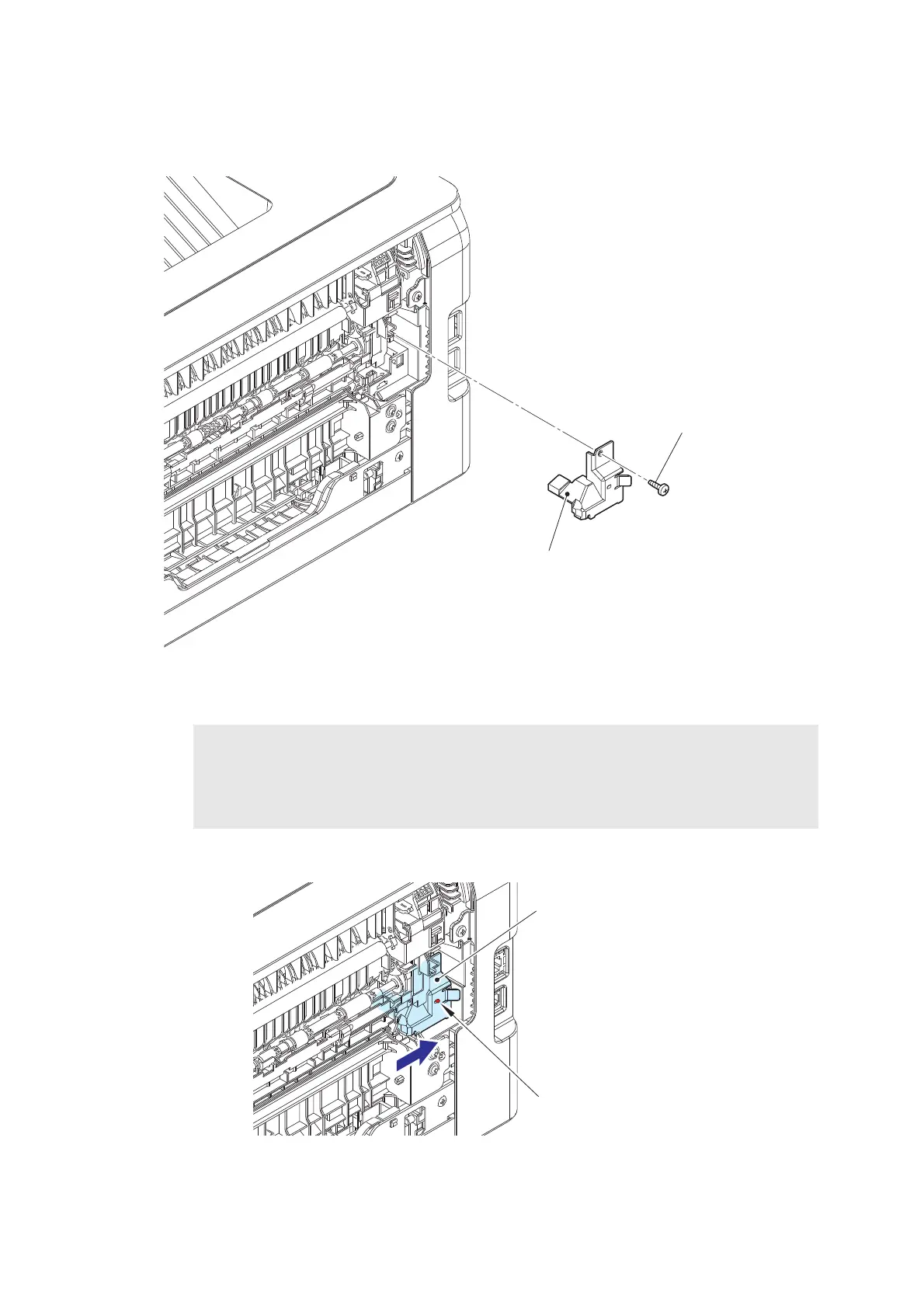

(1) Remove the Taptite bind B M3x10 screw to remove the Fuser cover L.
Fig. 3-7
Fig. 3-8
Assembling Note:
• When attaching the Fuser cover L, tighten the screw while pushing the Fuser cover L in
the direction of the arrow. When the Fuser cover L is attached without pushing it, the
Boss of the Frame L may come off.
Fuser cover L
Taptite bind B M3x10
<Back side>
Fuser cover L
Boss of the Frame L
