Brother HL-L3210CW Service Manual

3-77
Confidential
9.25 Duplex tray
(1) Turn the machine upside down.
(2) Remove the Taptite bind B M4x12 screw to remove the DX drive cover.
(3) Slide the DX input gear Z15 and the DX drive coupling in the direction of the arrow a.
(4) Remove the two Taptite bind B M4x12 screws. Lift the A part of the Duplex tray to remove
it in the direction of arrow b.

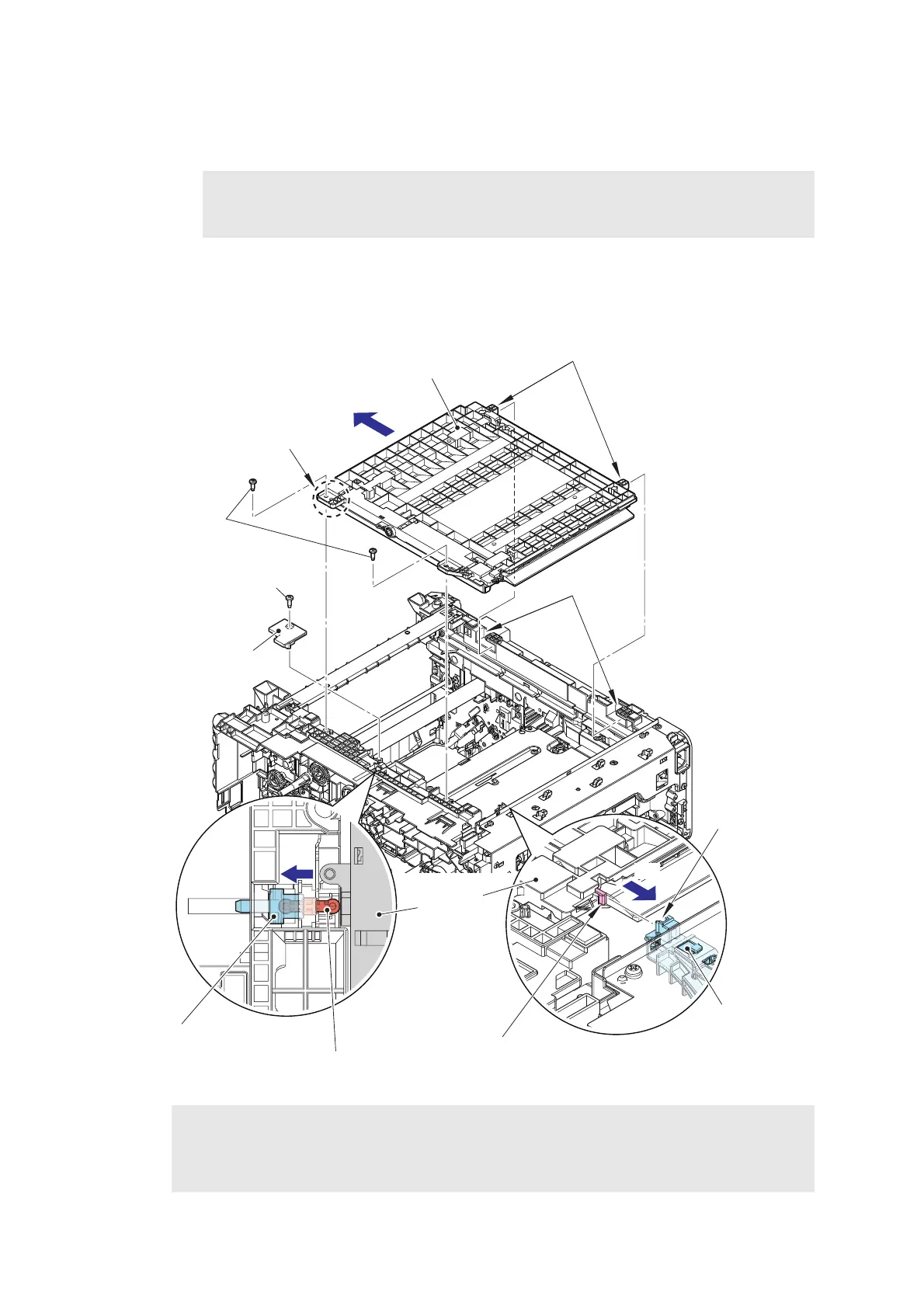

Fig. 3-69
Note:
• When turning the machine upside down, make sure to lay down the Damper L/R
ASSY to prevent breakage of the Damper L/R ASSY.
Assembling Note:
• When assembling the Duplex tray, engage the two B parts with the two grooves of the
machine and slide the Duplex tray in the direction of arrow c, and then insert the C part
into the groove of the DX side chute.
Grooves
Taptite bind
B M4x12
B parts
Duplex tray
b
c
A part
C part
DX side chute
Groove
<Bottom side>
Duplex tray
DX input gear Z15
DX drive coupling
a
Taptite bind B M4x12
DX drive cover

Brother HL-L3210CW Specifications

General

N-up printing	2, 4, 9, 16, 25
Duplex printing	No
Print technology	LED
Maximum resolution	2400 x 600 DPI
Warm-up time (from sleep mode)	24 s
Time to first page (black, normal)	14 s
Print speed (black, normal quality, A4/US Letter)	18 ppm
Duplex print speed (black, normal quality, A4/US Letter)	6 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Recommended duty cycle	300 - 1500 pages per month
Number of print cartridges	-
Page description languages	BR-Script 3, PCL 6, PDF, PostScript 3, XPS
Display	LCD
Product color	Gray
Market positioning	Home & office
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	64-bit WEP, 128-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPA2-TKIP
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print, Kindle Fire Printing, Mopria Print Service
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, SMTP Client, IPP/IPPS, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Print/Scan), SNTP Client
Supported network protocols (IPv6)	NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, SMTP Client, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMPv6, SNTP Client, Web Services (Print/Scan)
Paper input type	Cassette, Sheetfed
Total input capacity	250 sheets
Total output capacity	100 sheets
Total number of input trays	1
Sustainability certificates	Blue Angel, ENERGY STAR
Maximum internal memory	- MB
Sound pressure level (printing)	45 dB
Envelopes sizes	C5, Com-10, DL, Monarch
Custom media width	76.2 - 215.9 mm
Custom media length	116 - 355.6 mm
Paper tray media types	Envelopes, Glossy paper, Labels, Plain paper, Recycled paper, Thick paper, Thicker paper, Thin paper
Paper tray media weight	60 - 163 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Package depth	589 mm
Package width	513 mm
Package height	372 mm
Package weight	20700 g
Power consumption (off)	0.04 W
Power consumption (standby)	8.8 W
Power consumption (printing)	390 W
Power consumption (PowerSave)	1 W
Energy Star Typical Electricity Consumption (TEC)	0.9 kWh/week
Standard interfaces	USB 2.0, Wireless LAN
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Cables included	AC
Bundled software	Nuance PaperPort 14 SE
Included black & color (CMYK) cartridges capacity	1000 pages
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	461 mm
Width	410 mm
Height	252 mm
