Brother HL-L3210CW - Fan

3-55
Confidential
9.14 Fan

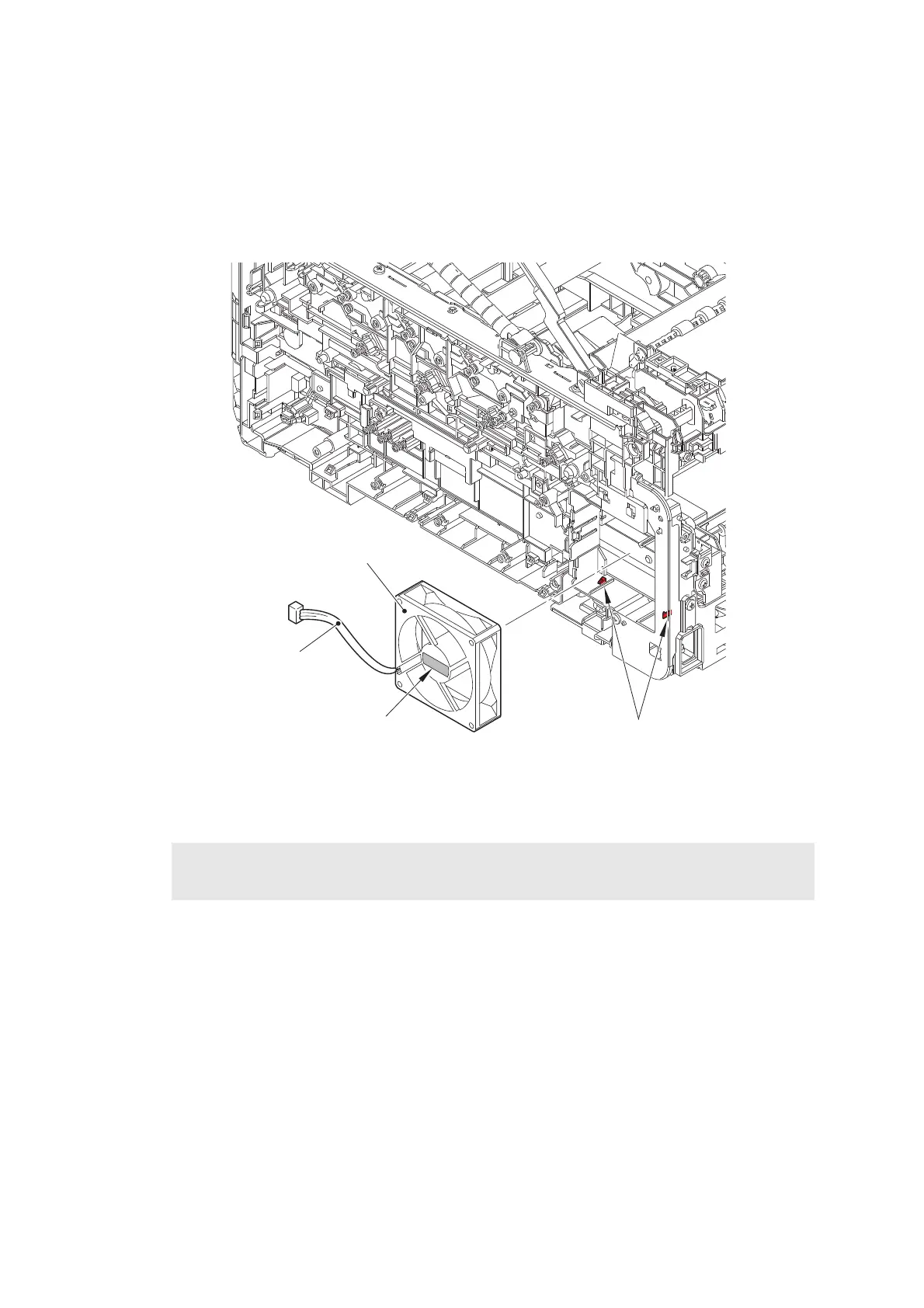

(1) Release the Fan harness from the securing fixtures. Release each Hook to remove the
Fan.
Fig. 3-46
Harness routing: Refer to “3. High-voltage power supply PCB, Fan harness, LED ground
wire”.
Assembling Note:
• When assembling the Fan, be sure to assemble it in a way that the Label side faces out.
Hooks
Fan
Fan harness
<Right side>
Label
