Brother HL-L3210CW - Page 148

3-10
Confidential
3

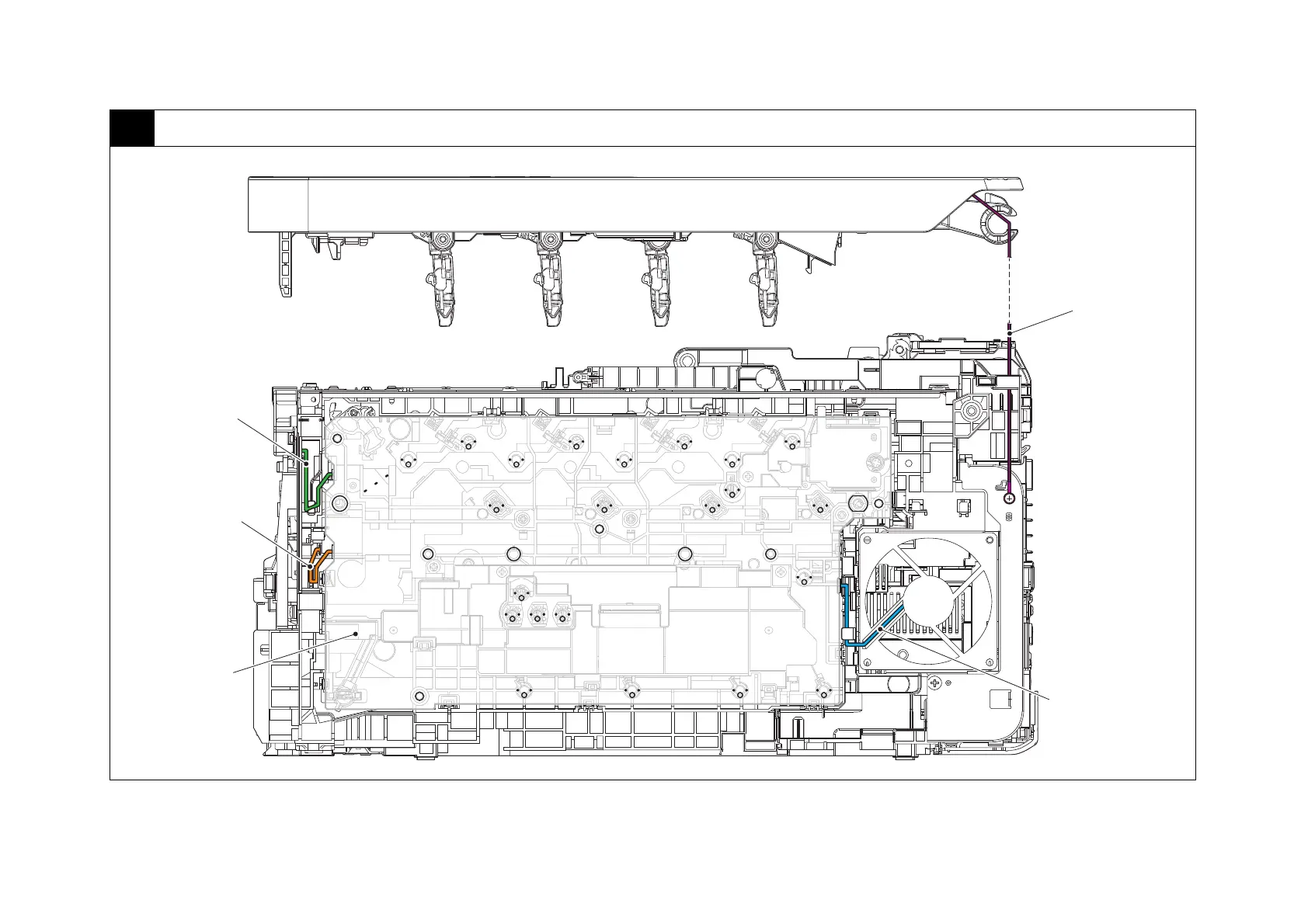

High-voltage power supply PCB, Fan harness, LED ground wire
Harness colors are subject to change for some reason.
HVPS harness (WH)
LED ground wire
(BK)
Fan harness
(BR, BK, GY)
Develop release
sensor harness
(WH, BL, RD)
High-voltage power
supply PCB
