9.15 WLAN PCB
(1) Release each Hook to remove the WLAN cap from the Line holder upper.
(2) Disconnect the WLAN PCB from the Main PCB.

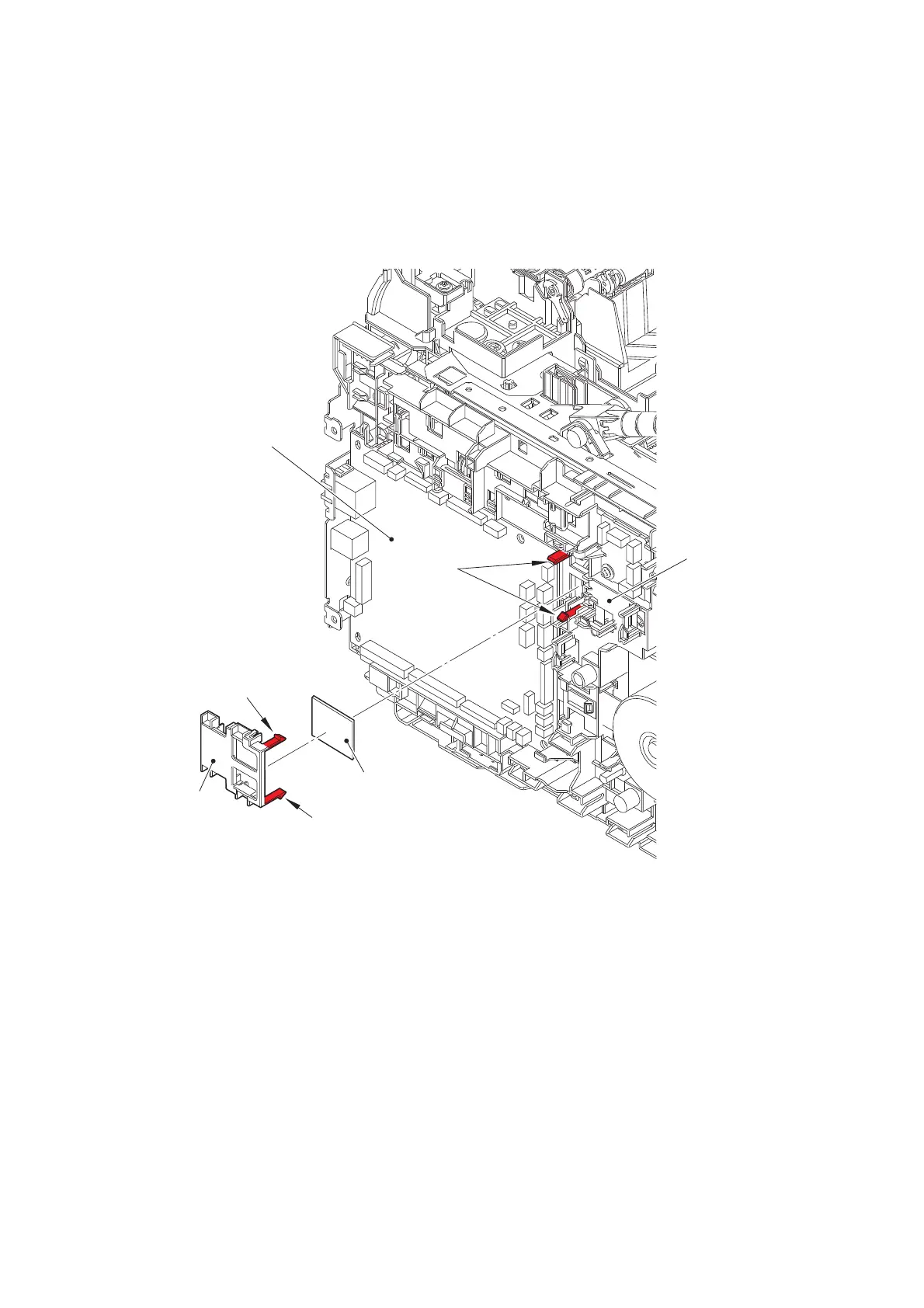

Fig. 3-47
Hooks
Hook
Hook
Line holder upper
WLAN PCB
WLAN cap
Main PCB
