Brother HL-L3210CW - Develop Release Clutch; Process Drive Unit; High-Voltage Power Supply Flat Cable; Process Motor Flat Cable; Paper Feed Motor Flat Cable

3-60
Confidential
9.18 Develop release clutch / Process drive unit /
High-voltage power supply flat cable /
Process motor flat cable / Paper feed motor flat cable
(1) Release the Back cover sensor harness, the Cartridge sensor harness K, the Develop
release clutch K harness, the External temperature/humidity sensor harness, the T1
paper empty/paper feed sensor harness, and the Manual feed paper empty/regist rear/
regist front sensor harness from the Line holder upper.

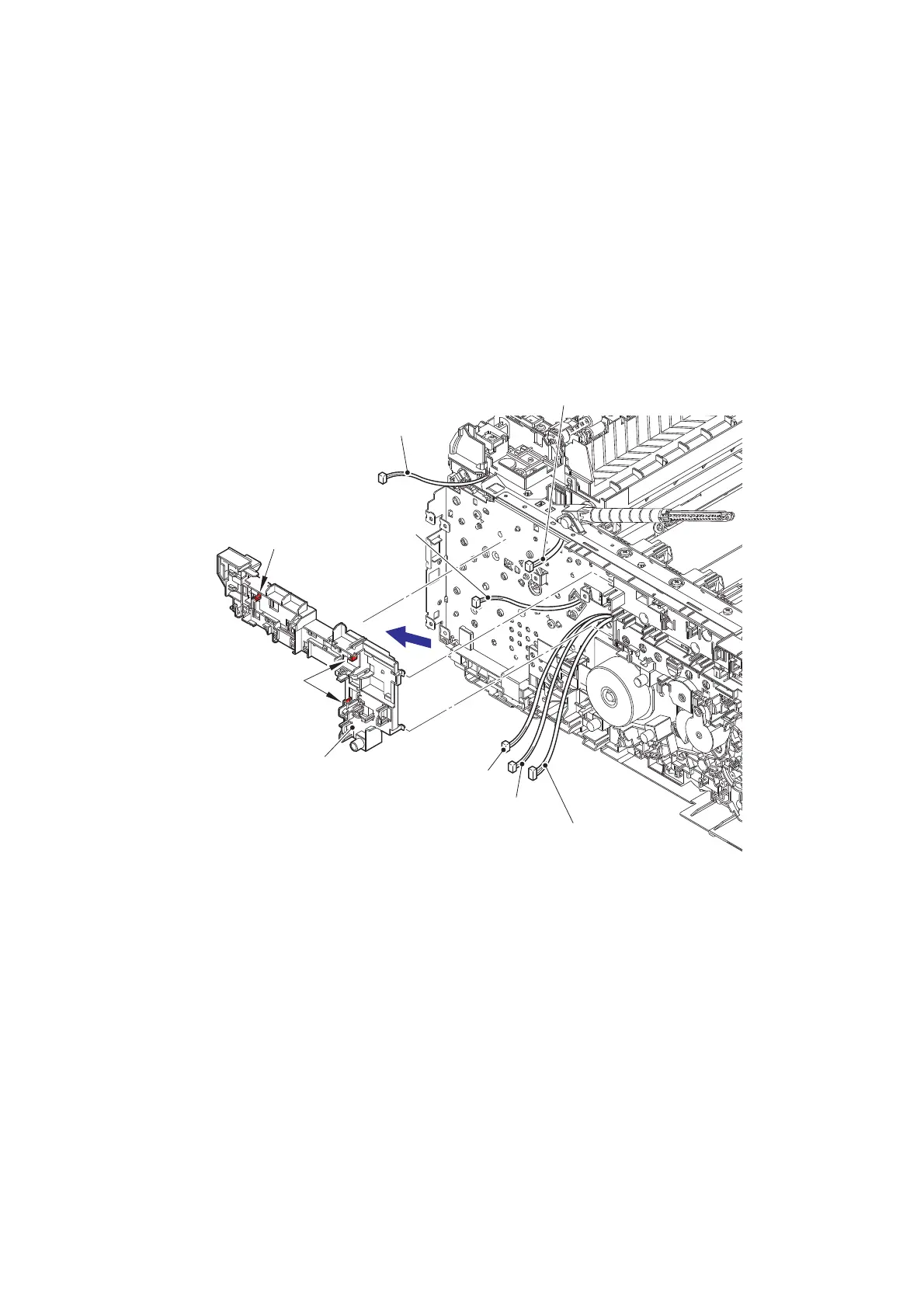

(2) Release each Hook to remove the Line holder upper in the direction of the arrow.
Fig. 3-51
Harness routing: Refer to “2. Main PCB, Cartridge sensor relay PCB”.
Line holder upper
Hooks
Hook
Back cover sensor harness
External temperature/
humidity sensor harness
T1 paper empty/paper feed sensor harness
Manual feed paper empty/regist
rear/regist front sensor harness
Develop release
clutch K harness
Cartridge sensor harness K
