9.11 LED control flat cable / LED control PCB
(1) Remove the three Screw cup M3x8 SR screws to remove the LED PCB shield plate.

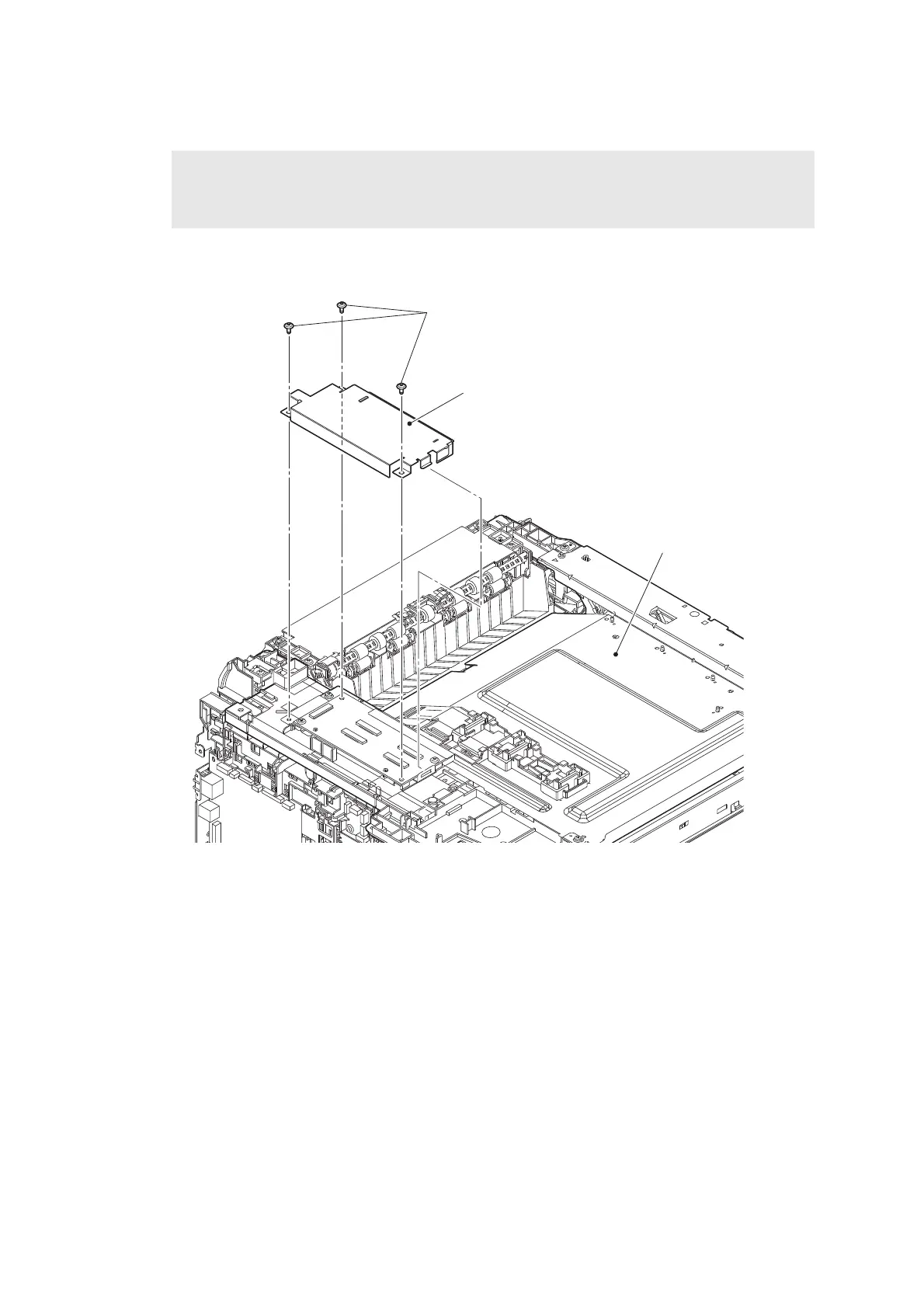

Fig. 3-37
Note:
• When disassembling/assembling the LED unit, attach it to the machine to prevent
breakage of the LED ASSYs.
LED unit
LED PCB shield plate
Screw cup M3x8 SR
