3-47
Confidential
(2) Release the Lock to disconnect the LED control flat cable from the LED control PCB.
Remove the LED control flat cable from the Double-sided tape to release it from the
securing fixtures.
(3) Release each Lock to disconnect the LED ASSY flat cable C, the LED ASSY flat cable K,
the LED ASSY flat cable M, and the LED ASSY flat cable Y from the LED control PCB.
Release each LED ASSY flat cable from the securing fixtures.
(4) Remove the two Screw cup M3x8 SR screws to remove the LED control PCB and the
LED PCB insulation sheet from the LED unit.
(5) Remove the LED unit from the machine.

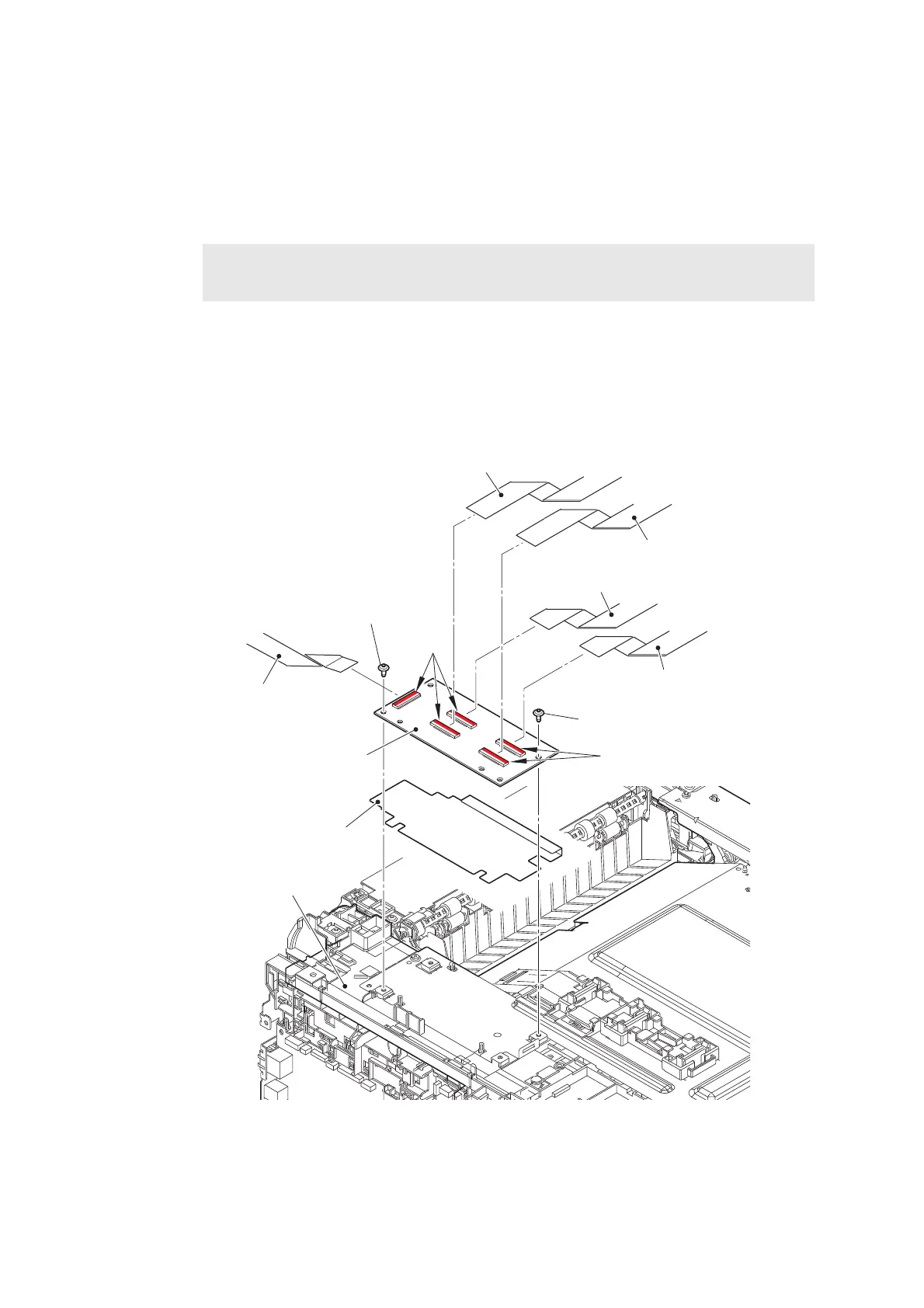

Fig. 3-38
Harness routing: Refer to “4. LED unit”.
Note:
• Remove the LED ASSY flat cable K from the Double-sided tape.
LED ASSY flat cable M
LED ASSY flat cable Y
LED control flat cable
LED ASSY flat cable C
LED ASSY flat cable K
Locks
Locks
Screw cup M3x8 SR
Screw cup M3x8 SR
LED PCB insulation sheet
LED control PCB
LED unit
To Next Page
