2. OVERVIEW

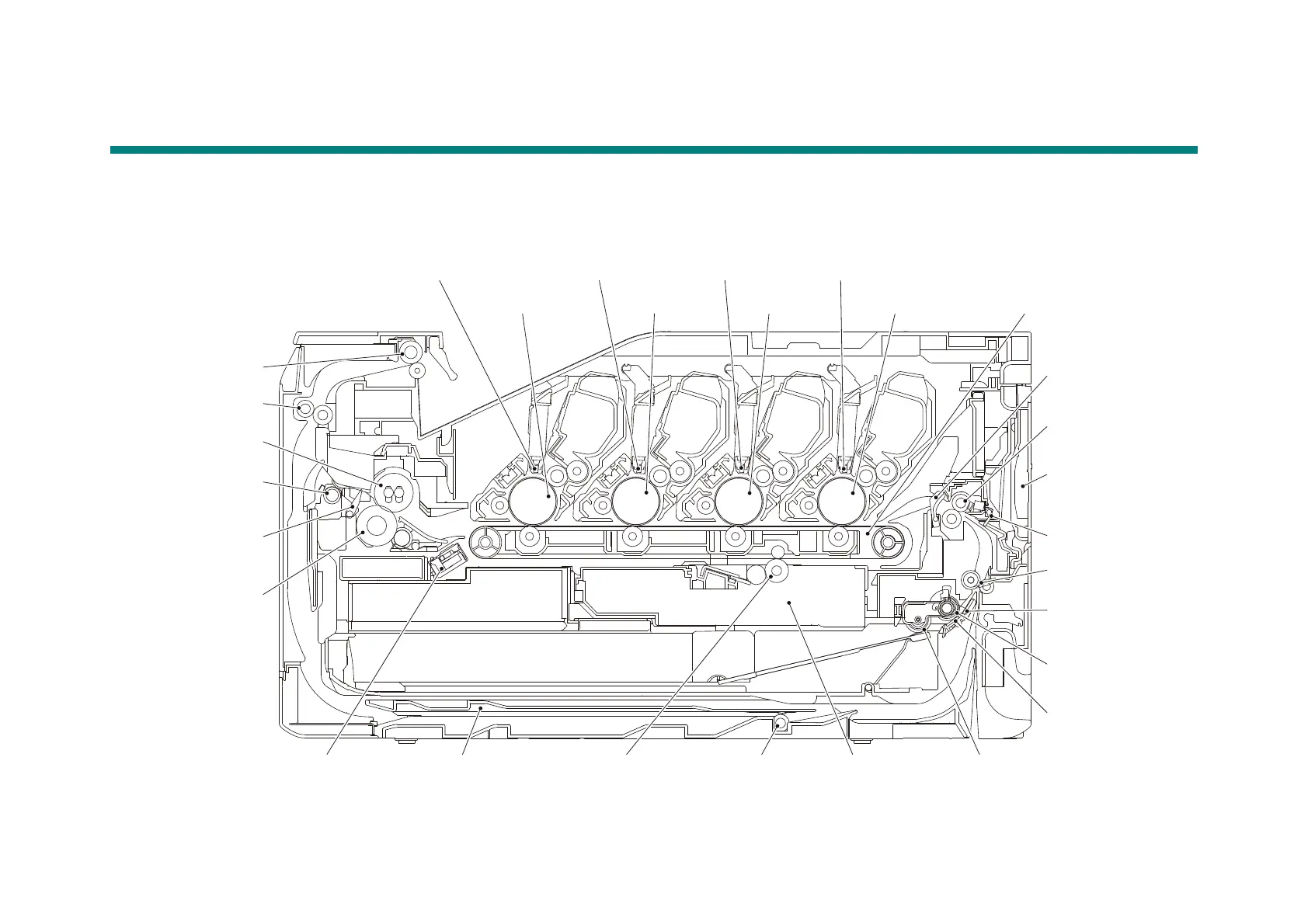

2.1 Cross-section Drawing
Fig. 2-1
Registration mark sensor ASSY
Registration rear
actuator
<Back side> <Front side>
Registration roller
Manual feed slot
Manual feed paper
actuator
Registration front
actuator
T1 paper feed actuator
T1 separation roller
T1 separation pad ASSY
T1 pick-up rollerWaste toner box
Pressure roller
Eject/fuser cover
actuator
Eject roller 1
Heat roller
Exposure drum
(Black)
LED ASSY
(Black)
Belt unit
Belt cleaning roller
Eject roller 3
Exposure drum
(Cyan)
LED ASSY
(Cyan)
Exposure drum
(Magenta)
LED ASSY
(Magenta)
Exposure drum
(Yellow)
LED ASSY
(Yellow)
Eject roller 2
Duplex tray Duplex paper feed roller
