Brother HL-L3210CW - Paper Eject ASSY

3-76
Confidential
9.24 Paper eject ASSY
(1) Raise the Arm R approximately 135 degrees to remove it from the Paper eject ASSY.
(2) Pull out the Eject gear shaft.
(3) Remove the three Taptite bind B M4x12 screws. As shown in the figure, use a screwdriver
to release the Boss on the right of the Paper eject ASSY, and then remove the Paper eject
ASSY.

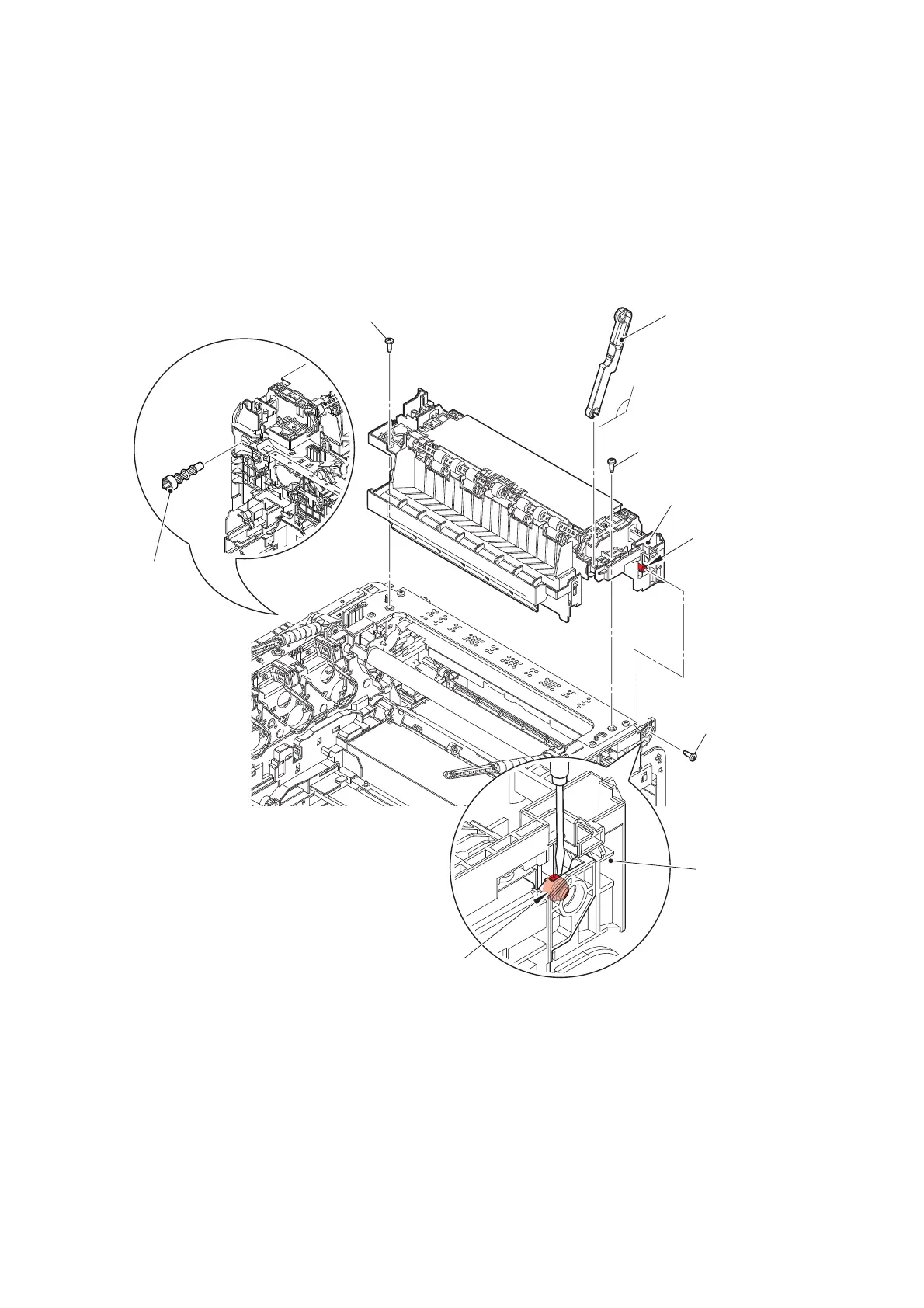

Fig. 3-68
Taptite bind B M4x12
Taptite bind B M4x12
Taptite bind B M4x12
Paper eject ASSY
Boss
Paper eject ASSY
Boss
Arm R
Approx.135°
<Back side>
Eject gear
shaft
