3-75
Confidential
(2) Turn the machine face up.
(3) Release the HVPS harness from the Hook A and the Hook B.
(4) Release the T1 paper empty/paper feed sensor harness and the Manual feed paper
empty/regist rear/regist front sensor harness from the Hook A.
(5) Remove the four Taptite bind B M4x12 screws to remove the Paper feed unit.

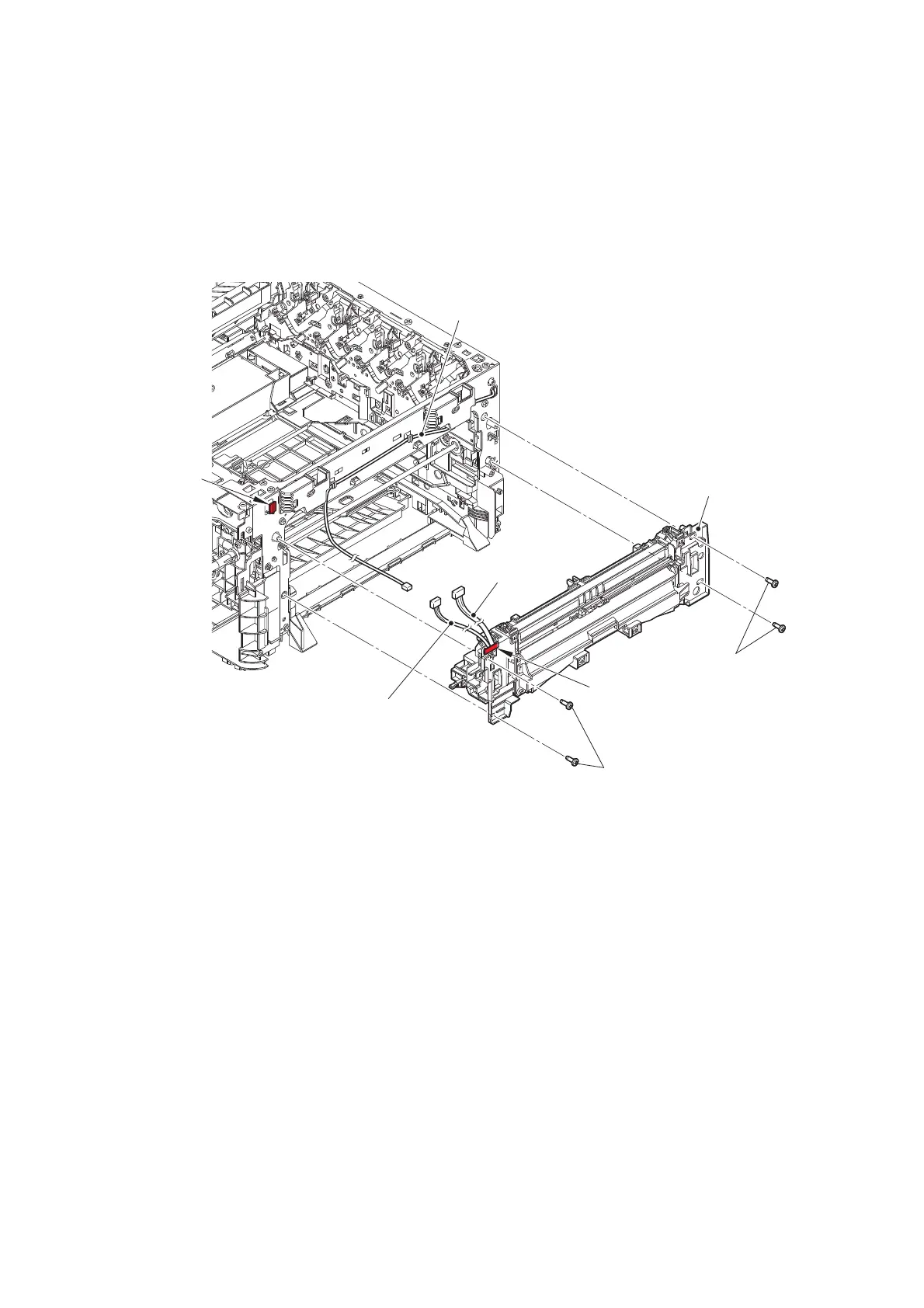

Fig. 3-67
Harness routing: Refer to “8. Front side of the machine”.
Paper feed unit
Hook A
HVPS harness
Taptite bind B M4x12
Taptite bind B M4x12
Hook B
T1 paper empty/paper
feed sensor harness
Manual feed paper empty/regist rear/
regist front sensor harness
