2.5 Main Components

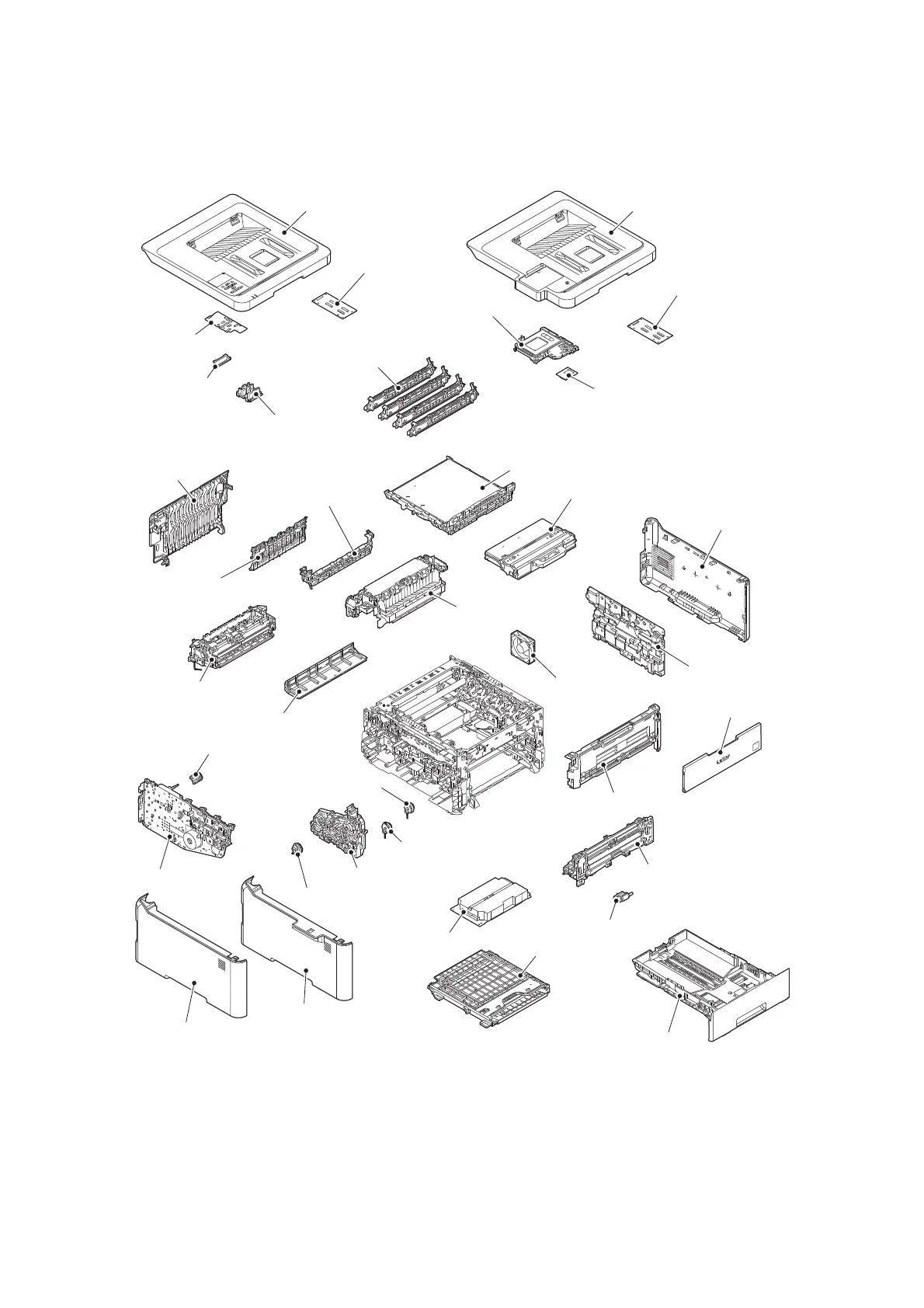

Fig. 2-5
Panel PCB
Top cover ASSY
LED control PCB
NFC PCB
Top cover ASSY
Back light guide
Rubber key
LED control PCB
LED ASSY
Panel sub ASSY
Waste toner box
Belt unit
Side cover R
High-voltage
power supply PCB
Manual feed cover ASSY
Fan
Inner front cover
Paper feed unit
Back cover
Fuser unit
Back cover lower
Fuser cover ASSY
Paper eject ASSY
Registration clutch
Process drive unit
Side cover L
Side cover L
Low-voltage power
supply PCB
Duplex tray
Roller holder ASSY
Paper tray
T1 pick-up clutch
Paper feed drive unit
Develop release clutch
Fuser drive gear Z25
Rear flapper
sub ASSY
