Brother HL-L3210CW - Cartridge Sensor Relay Flat Cable

3-59
Confidential
9.17 Cartridge sensor relay flat cable
(1) Release the Cartridge sensor relay flat cable from the securing fixtures. Disconnect the
Cartridge sensor relay flat cable from the Cartridge sensor relay PCB.
(2) Disconnect all the Harnesses that are connected to the Cartridge sensor relay PCB.
(3) Remove the Screw cup M3x8 (black) screw. Release the Hook to remove the Cartridge
sensor relay PCB from the Line holder upper.

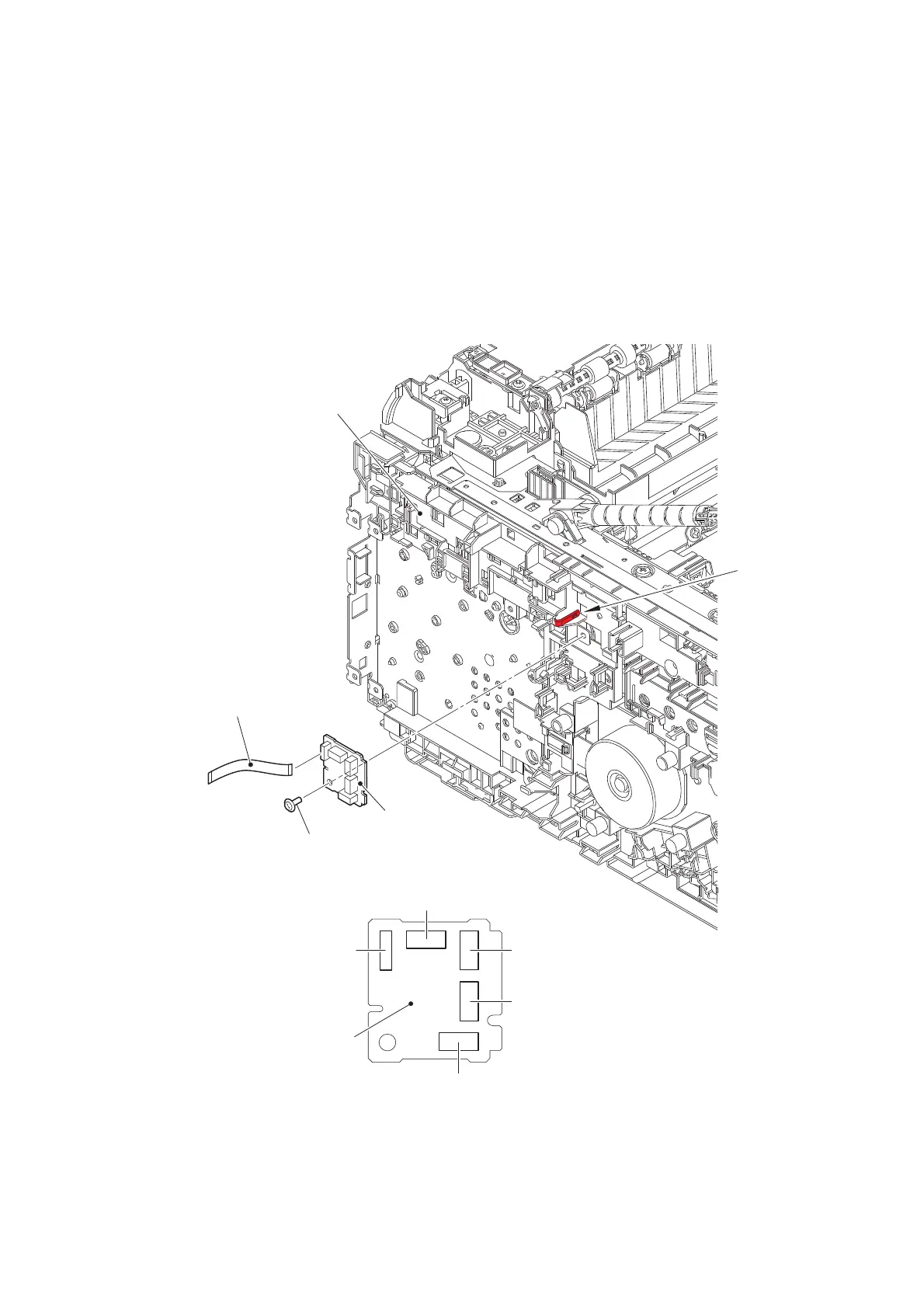

Fig. 3-50
Harness routing: Refer to “2. Main PCB, Cartridge sensor relay PCB”.
Line holder upper
Hook
Cartridge sensor
relay PCB
Screw cup M3x8 (black)
Cartridge sensor relay flat cable
Cartridge sensor relay PCB
Cartridge sensor relay flat cable
Cartridge sensor harness K
Cartridge sensor
harness Y
Cartridge sensor
harness M
Cartridge sensor harness C
