Brother HL-L3210CW - LED ASSY (Y;M;C;K); LED ASSY Flat Cable (Y;M;C;K)

3-49
Confidential
9.12 LED ASSY (Y/M/C/K) / LED ASSY flat cable (Y/M/C/K)
(1) Release each Hook to remove the two Holder hooks from the LED ASSY.
(2) Remove the LED ASSY, and pull out the LED ASSY flat cable through the Flat core on the
LED unit.

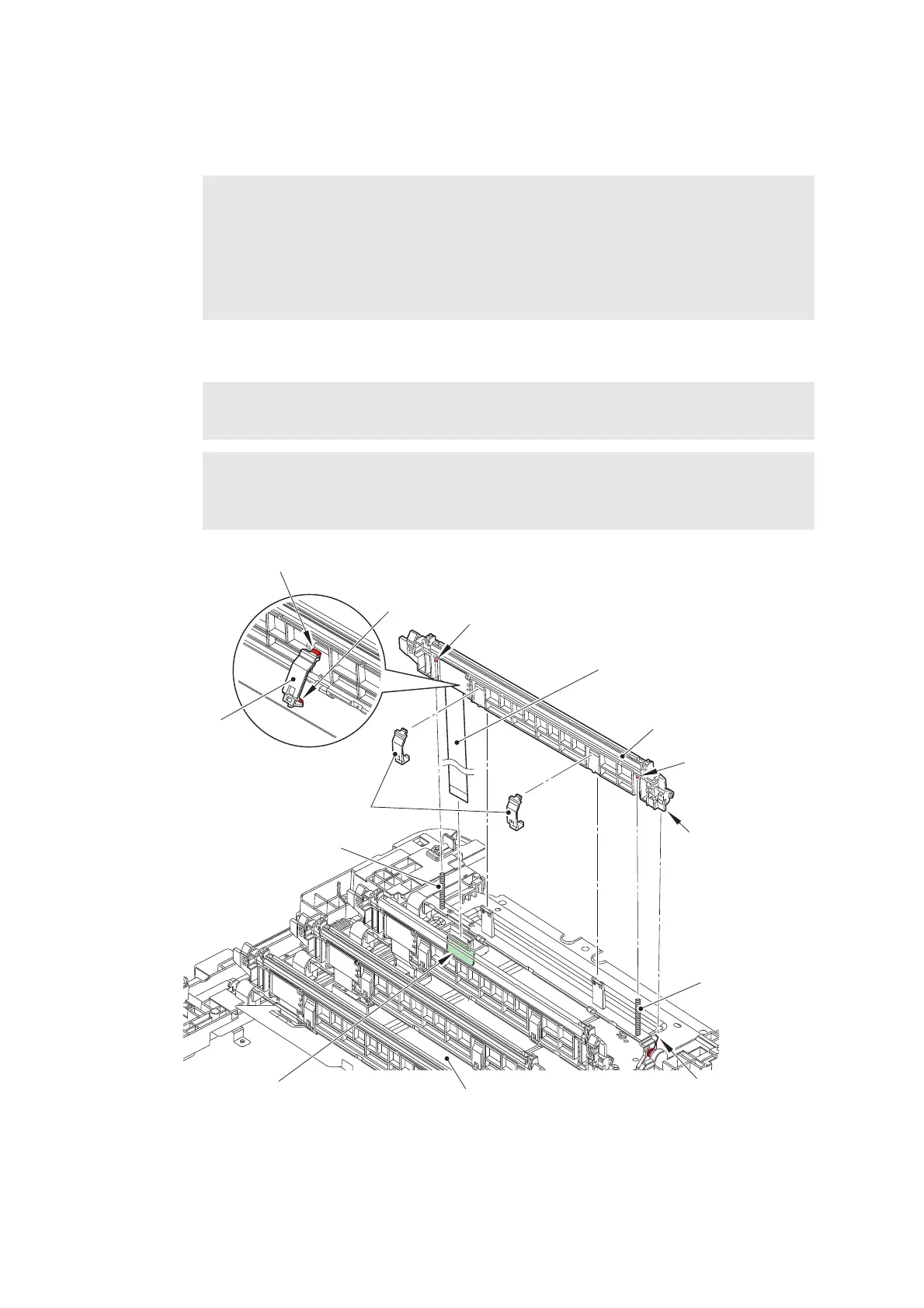

Fig. 3-40
Assembling Note:
• When assembling the Holder hook, make sure to insert the Hook A of the Holder
hook into the groove of the LED ASSY first, and then assemble the Hook B of the
Holder hook.
• After assembling, make sure to check that the Hook A is firmly engaged to the LED
ASSY. If the Holder hook is not engaged firmly, it might cause an image failure.
Note:
• The LED ASSY flat cable K does not pass through the Flat core.
Assembling Note:
• When assembling the LED ASSY, insert the two Springs A into each Boss of the
LED ASSY and insert the tip end of Spring B in the Hole of the LED ASSY.
LED ASSY flat cable
LED ASSY
Hook B
Holder hook
Hook A
LED unit
Boss
Boss
Holder hooks
Spring A
Spring A
Flat core
Hole
Tip end of
Spring B
