3-50
Confidential

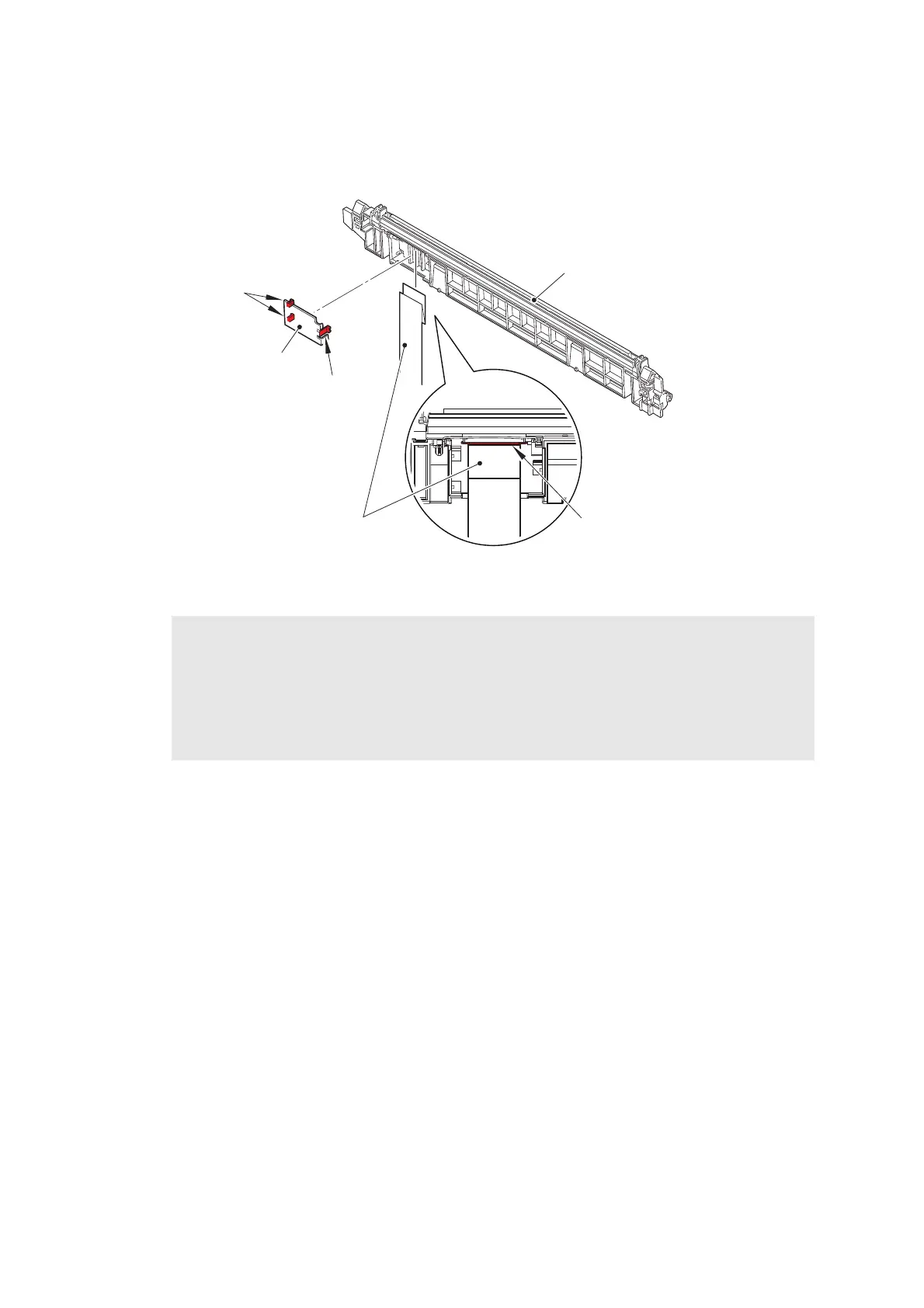

(3) Release each Hook to remove the FFC cover from the LED ASSY.
(4) Release the Lock to disconnect the LED ASSY flat cable from the LED ASSY.
Fig. 3-41
Assembling Note:
• The LED parts of the LED ASSY for replacement are covered with protection tapes.
Make sure not to remove the protection tapes until assembling of the LED ASSY is
completed. After it is assembled, make sure to remove the protection tapes.
• If the LED parts get smeared, make sure to wipe smears on the LED parts with a clean
and soft cloth.
LED ASSY
LED ASSY flat cable
Lock
FFC cover
Hooks
Hook
To Next Page
