3-48
Confidential

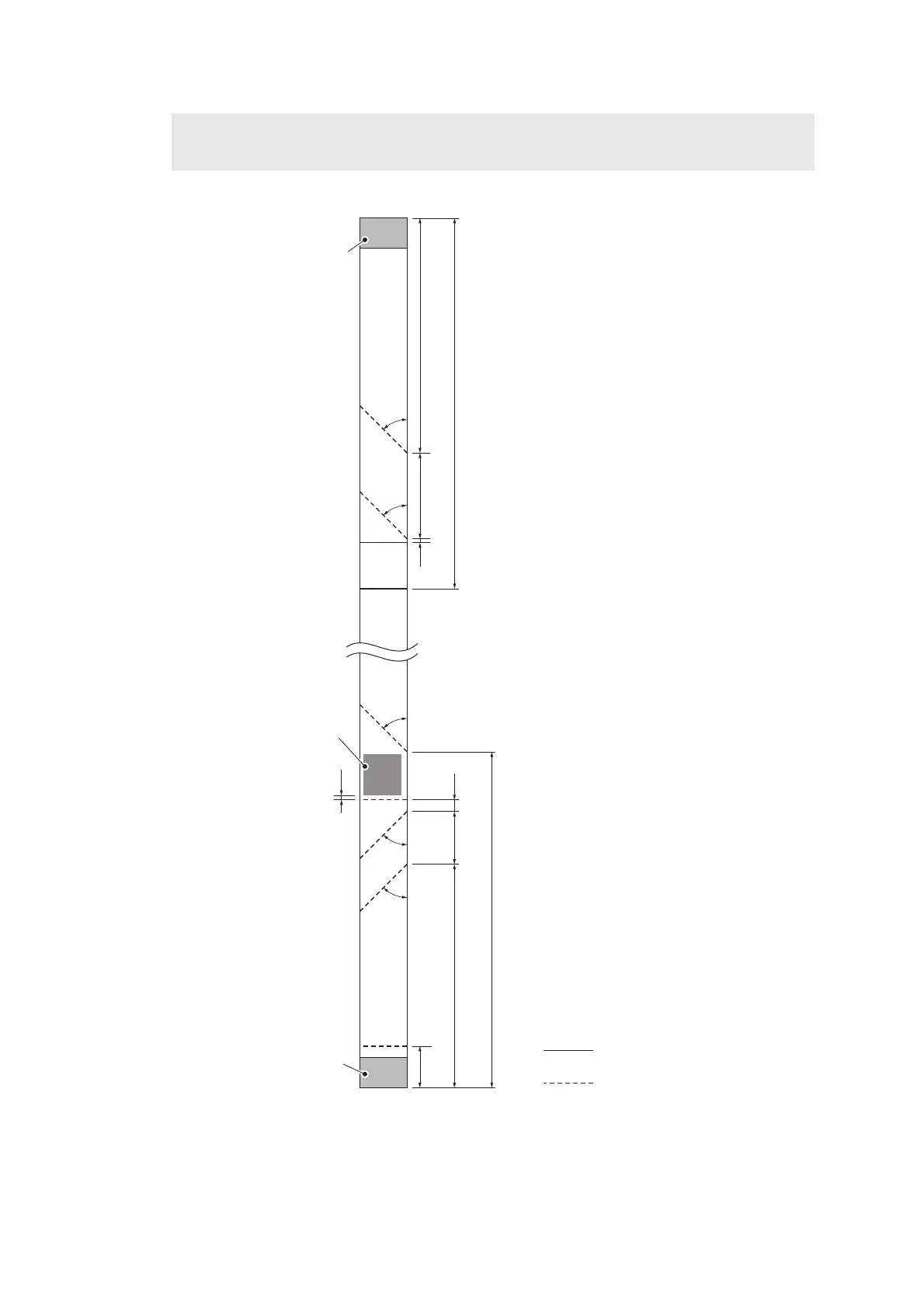

Fig. 3-39
Assembling Note:
• Fold the LED control flat cable at the positions described below.
Mountain fold
Main PCB side
LED control PCB side
45°
45°
45°
45°
45°
86±1
136±1
15±1
82±1
19±1
2±1
123±1
4±1
31±1
1±1
Valley fold
Reinforcing plate
Reinforcing plate
Double-sided tape
