3-45
Confidential
 For Non-touch panel models
(1) Release the Panel harness from the securing fixtures.
(2) Remove the tape. Release each Hook to remove the Panel PCB from the Top cover
ASSY.
(3) Release the Lock to disconnect the LCD flat cable from the Panel PCB.
(4) Release each Hook to remove the Back light guide from the Top cover ASSY.
(5) Remove the LCD sheet from the Top cover ASSY.
(6) Remove the LCD from the Top cover ASSY.
(7) Remove the Rubber key from the Top cover ASSY.

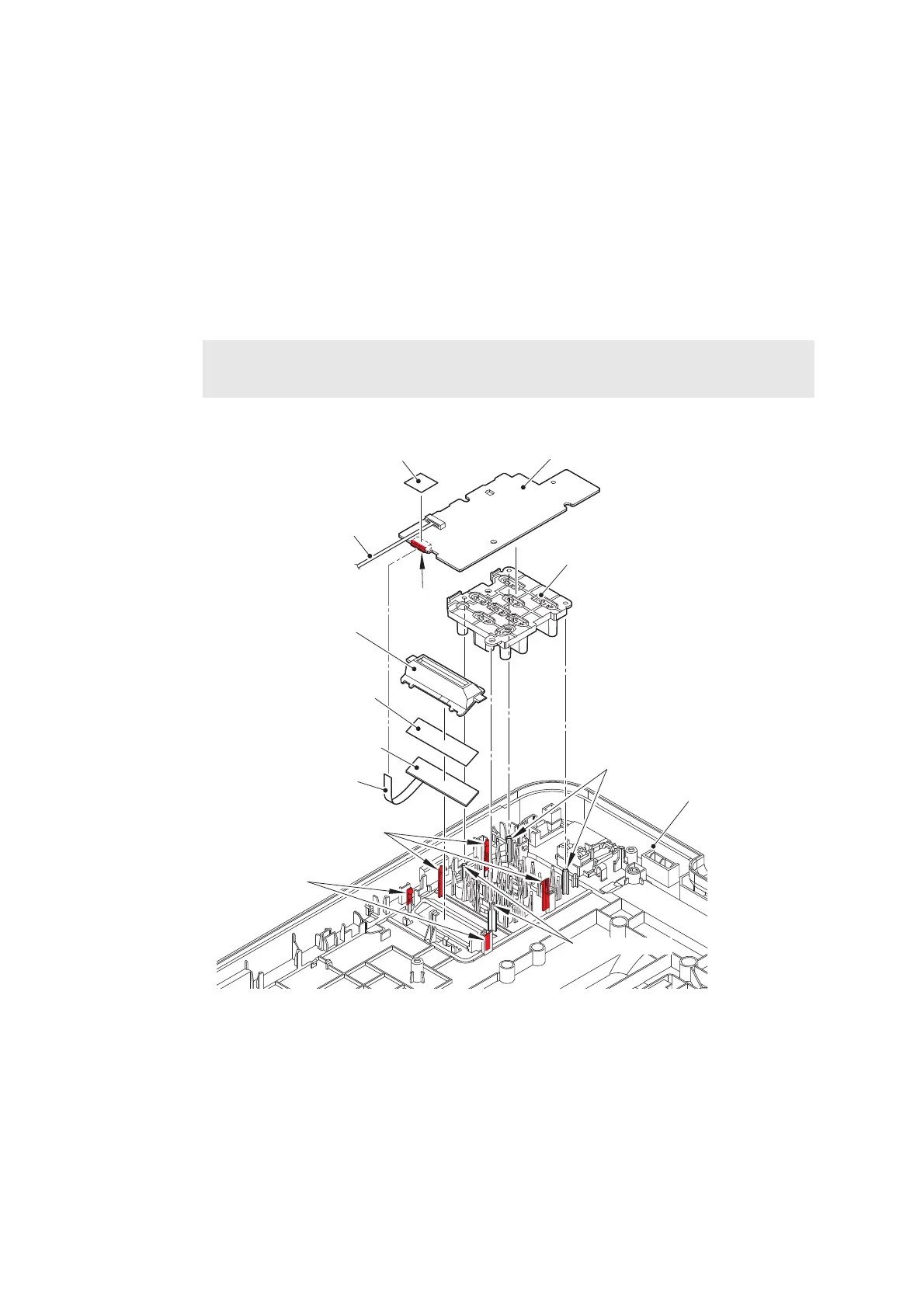

Fig. 3-36
Note:
• Make sure that the Positioning pins are inserted to the Rubber key.
Hooks
Top cover ASSY
Hooks
Panel harness
Panel PCB
Tape
LCD flat cable
Back light guide
LCD sheet
LCD
Rubber key
Positioning pins
Positioning pins
Lock
