3-44
Confidential
(16) Release each Hook to remove the LCD from the Touch panel plate.
(17) Release each Hook to remove the Touch panel plate from the LCD panel upper.
(18) Remove the LCD film from the LCD panel upper.
(19) Remove the Touch panel from the LCD panel upper.

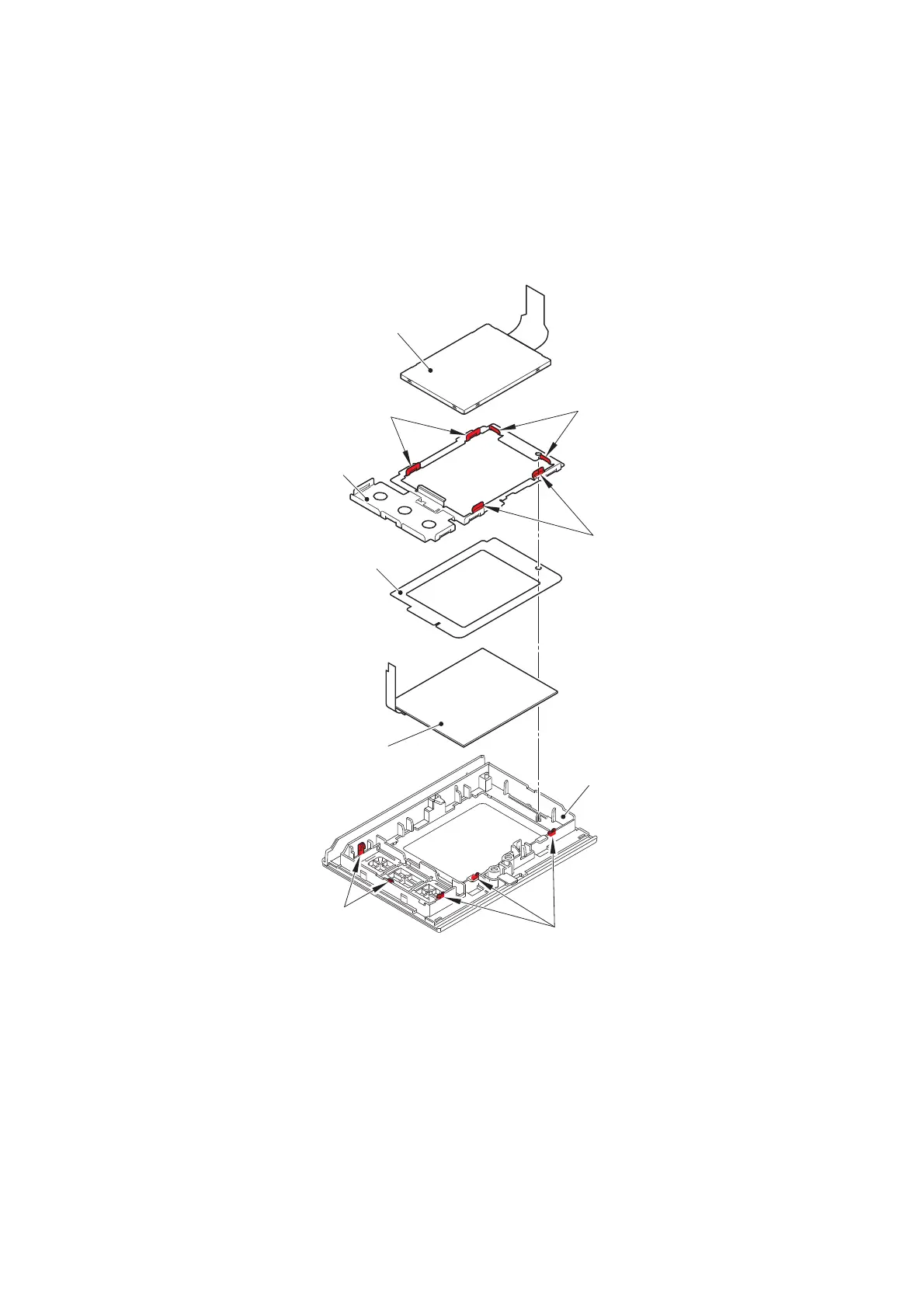

Fig. 3-35
Touch panel plate
Hooks
Hooks
Hooks
Hooks
Hooks
LCD
LCD film
LCD panel upper
Touch panel
