3-43
Confidential

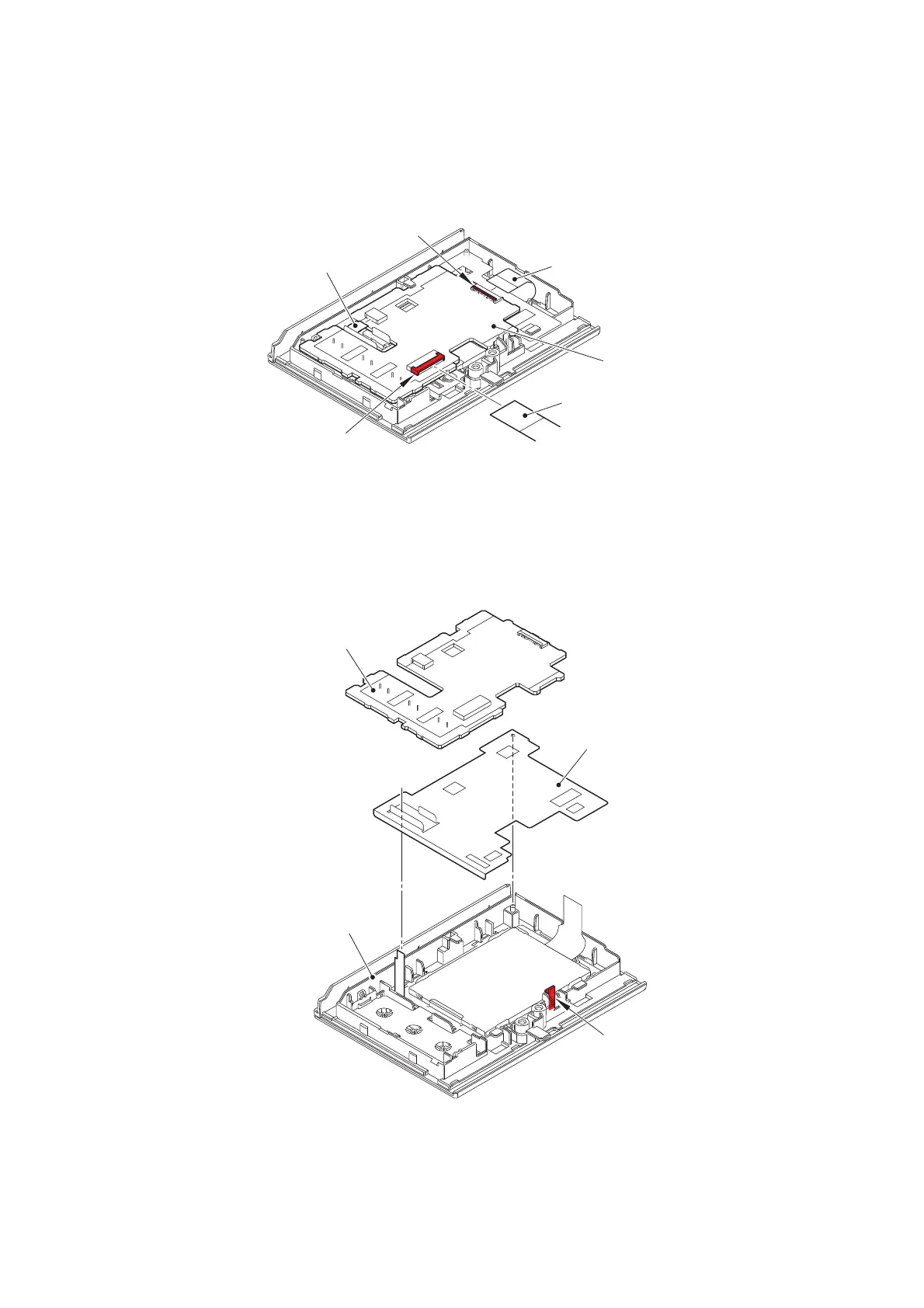

(11) Release the Lock to disconnect the Panel relay flat cable from the Panel PCB.
(12) Release the Lock to disconnect the LCD flat cable from the Panel PCB.
(13) Disconnect the Touch panel flat cable from the Panel PCB.
Fig. 3-33
(14) Release the Hook to remove the Panel PCB from the LCD panel upper.
(15) Remove the LCD back film from the LCD panel upper.
Fig. 3-34
Lock
Panel relay flat cable
Lock
Panel PCB
Touch panel flat cable
LCD flat cable
LCD panel upper
LCD back film
Panel PCB
Hook
