(8) Release the Hook to remove the LCD panel ASSY from the Panel sub ASSY.

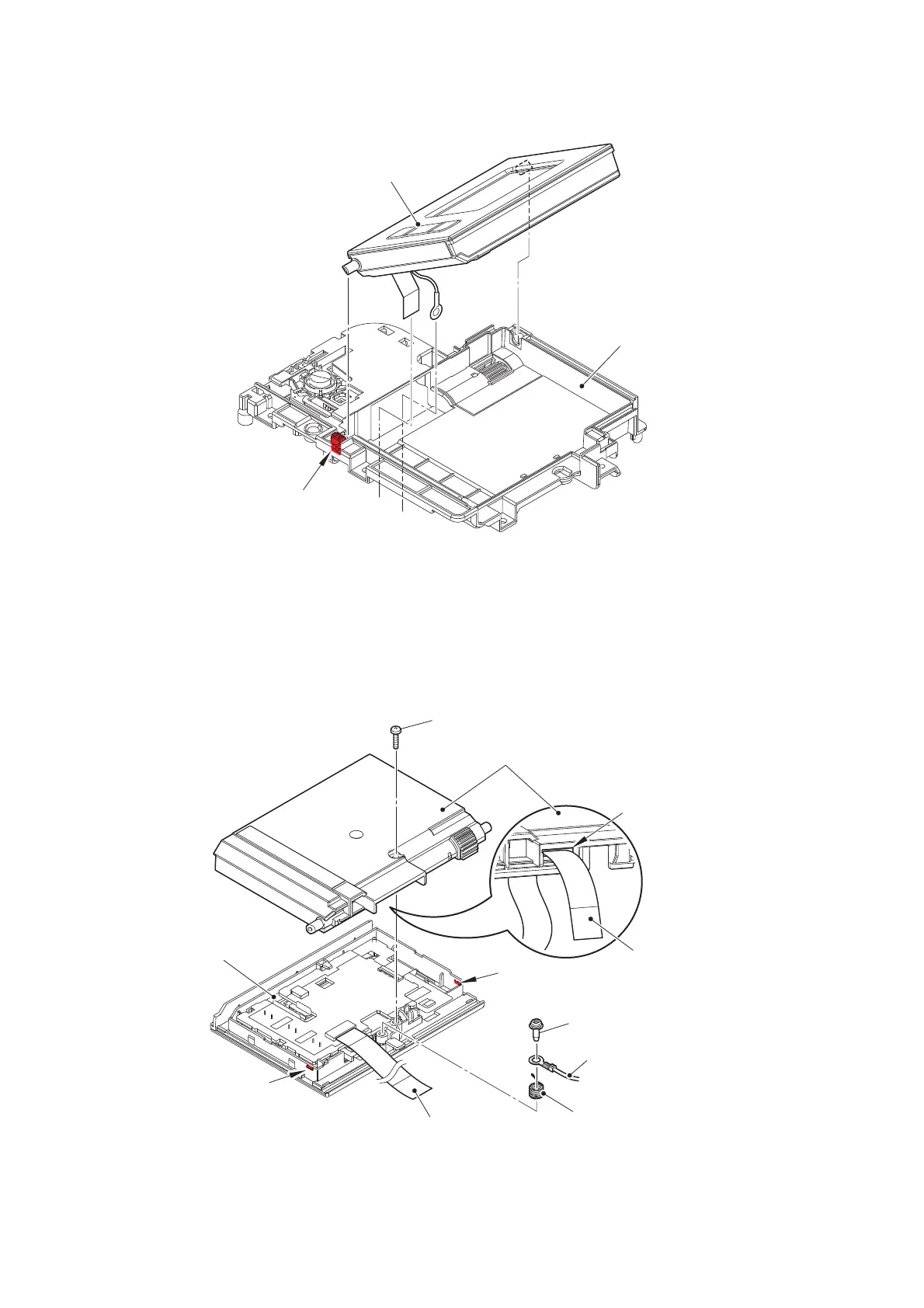

Fig. 3-31
(9) Remove the Taptite bind B M3x10 screw. Release each Hook to remove the Panel lower
from the LCD panel upper. Pull out the Panel relay flat cable through the Hole of the Panel
lower.
(10) Remove the Taptite pan (S/P washer) B M3x10 screw to remove the Panel ground wire
and the Antistatic spring 1 from the LCD panel upper.
Fig. 3-32
LCD panel ASSY
Panel sub ASSY
Hook
Taptite bind B M3x10
Hook
Hook
Panel lower
LCD panel upper
Taptite pan (S/P washer) B M3x10
Panel ground wire
Antistatic spring 1
Panel relay flat cable
Panel relay flat cable
Hole
