3-41
Confidential

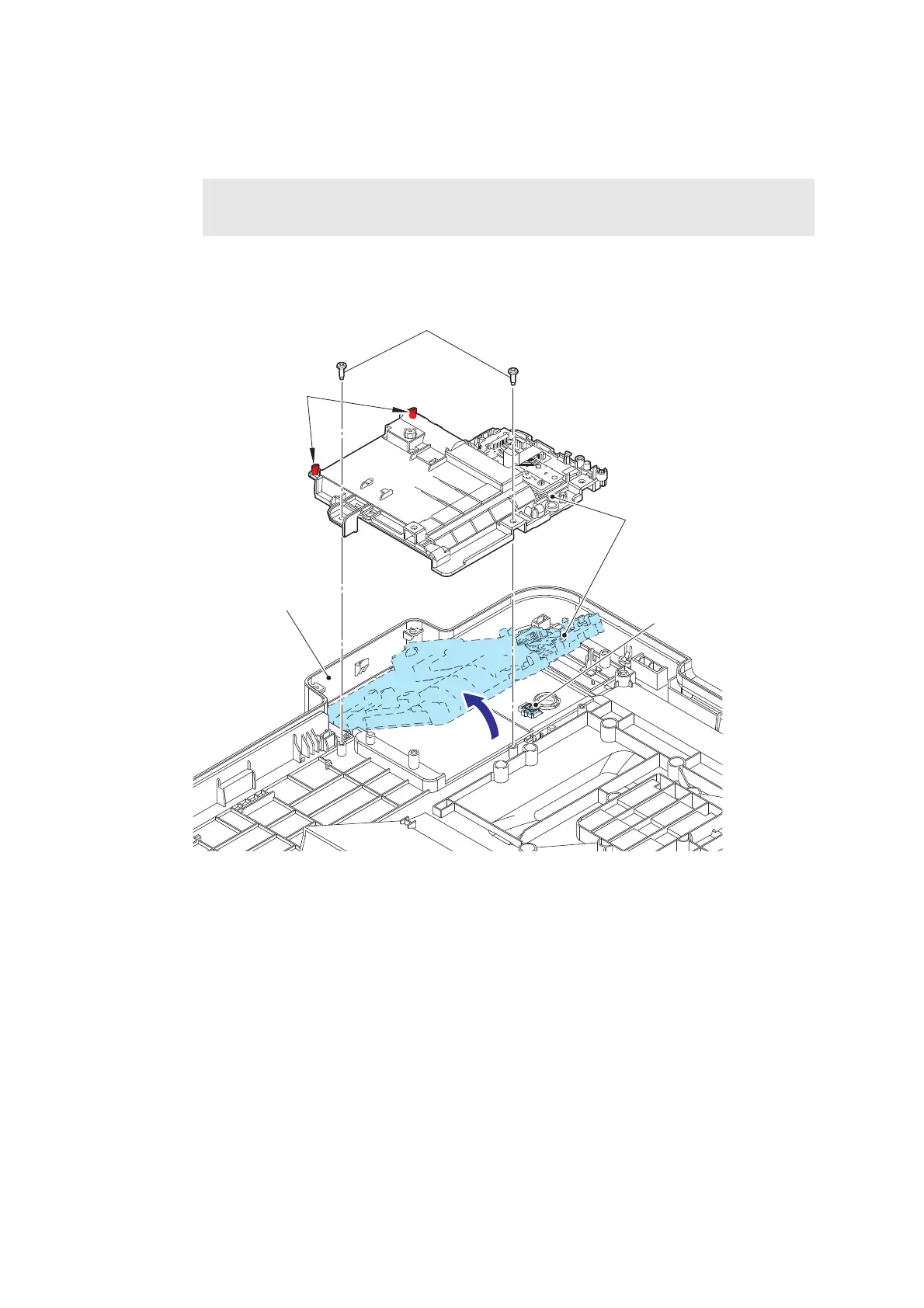

(7) Remove the two Taptite bind B M3x10 screws. Open the Panel sub ASSY in the direction
of the arrow. Release each Boss to remove the Panel sub ASSY from the Top cover
ASSY.
Fig. 3-30
Note:
• As the Power light guide tends to come off, be careful not to lose it.
Top cover ASSY
Panel sub ASSY
Power light guide
Bosses
Taptite bind B M3x10
