3-61
Confidential
(3) Release the Duplex clutch harness, the Develop release clutch harness, the HVPS
harness, the T1 pick-up clutch harness, and the Registration clutch harness from the Line
holder lower.

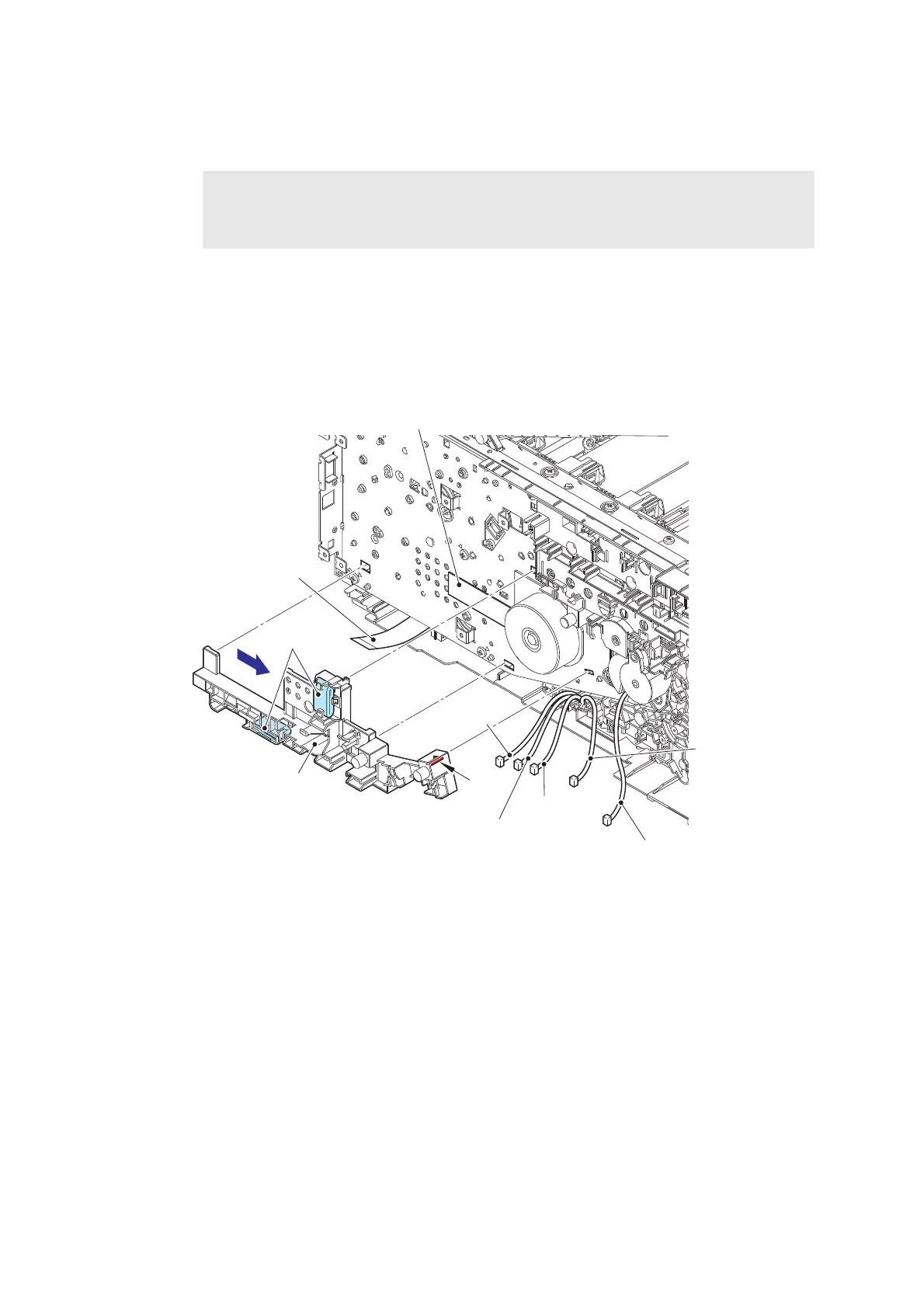

(4) Release the Hook to remove the Line holder lower in the direction of the arrow. Pull out
the Process motor flat cable and the Paper feed motor flat cable through each Flat core
on the Line holder lower.
Fig. 3-52
Harness routing: Refer to “2. Main PCB, Cartridge sensor relay PCB”.
Assembling Note:
• When wiring the Duplex clutch harness, make sure that the clutch connection part of
the Duplex clutch harness does not stretch by pulling too much.
HookLine holder lower
Process motor flat cable
Paper feed motor flat cable
HVPS harness
Duplex clutch
harness
Registration clutch harness
T1 pick-up
clutch harness
Develop release clutch harness
Flat cores
