3-62
Confidential

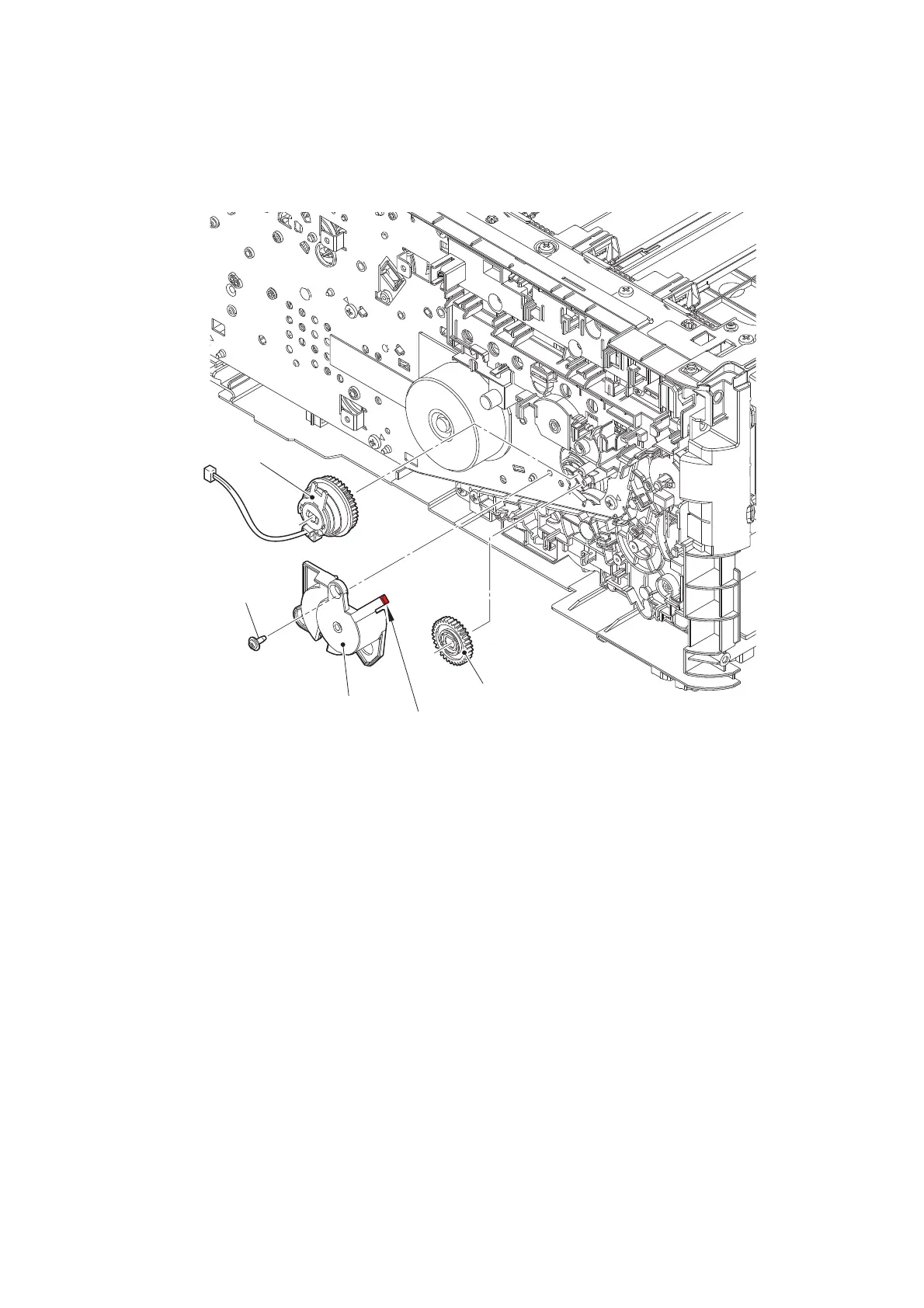

(5) Remove the Taptite cup S M3x8 SR screw. Release the Hook to remove the DEV clutch
cover. Remove the DEV release drive gear Z33 and the Develop release clutch.
Fig. 3-53
DEV release drive gear Z33
Develop release clutch
Taptite cup S
M3x8 SR
DEV clutch cover
Hook
