Brother HL-L3210CW - Page 154

3-16
Confidential
9

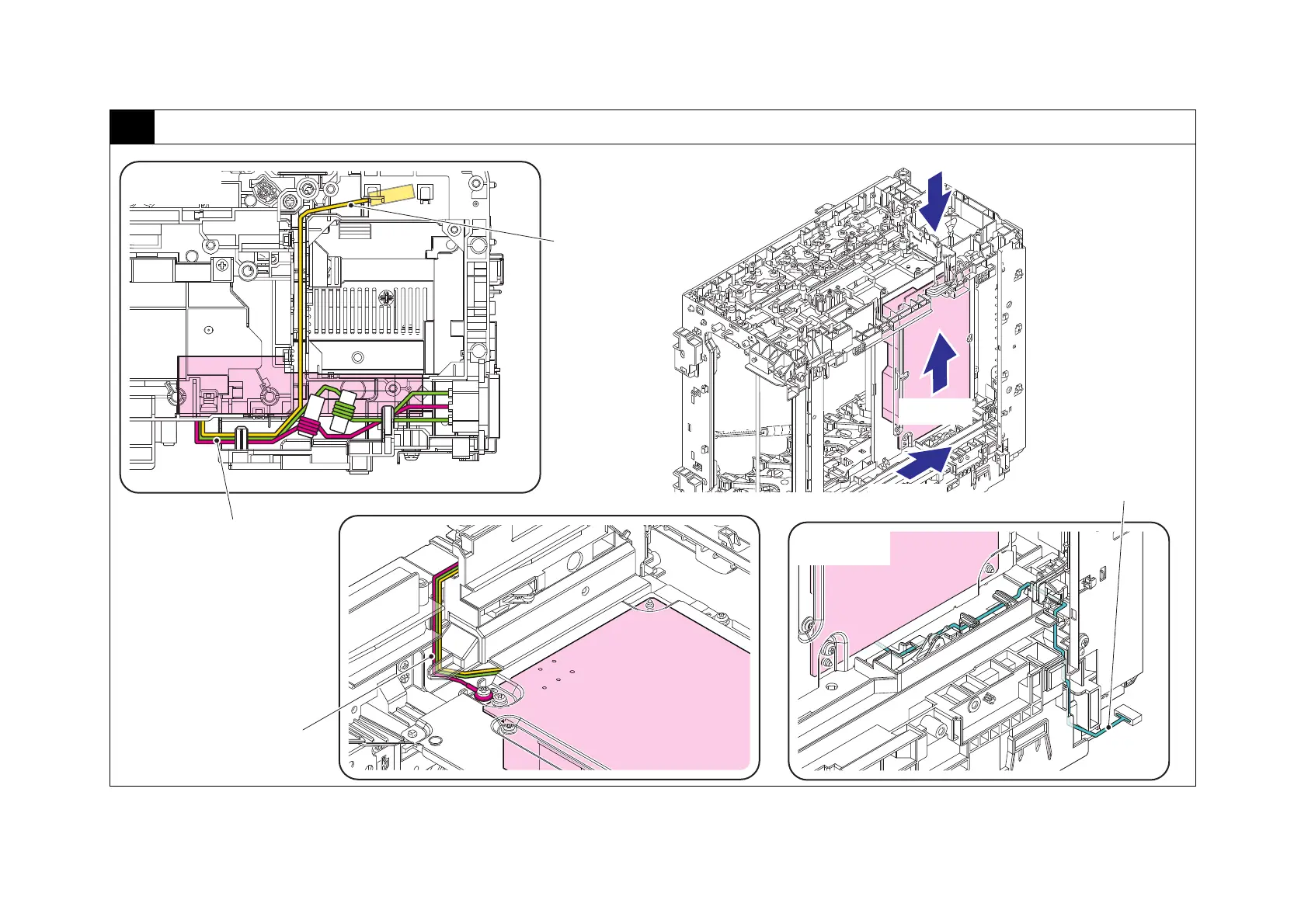

LVPS
Harness colors are subject to change for some reason.
LVPS heater harness
(BK, YW, WH)
<A view>
<B view>
<C view>
Inlet harness ASSY (BL, BR)
LVPS ground wire (YW/GR)
Low-voltage power
supply harness (WH)
<C view>
<B view>
<A view>
