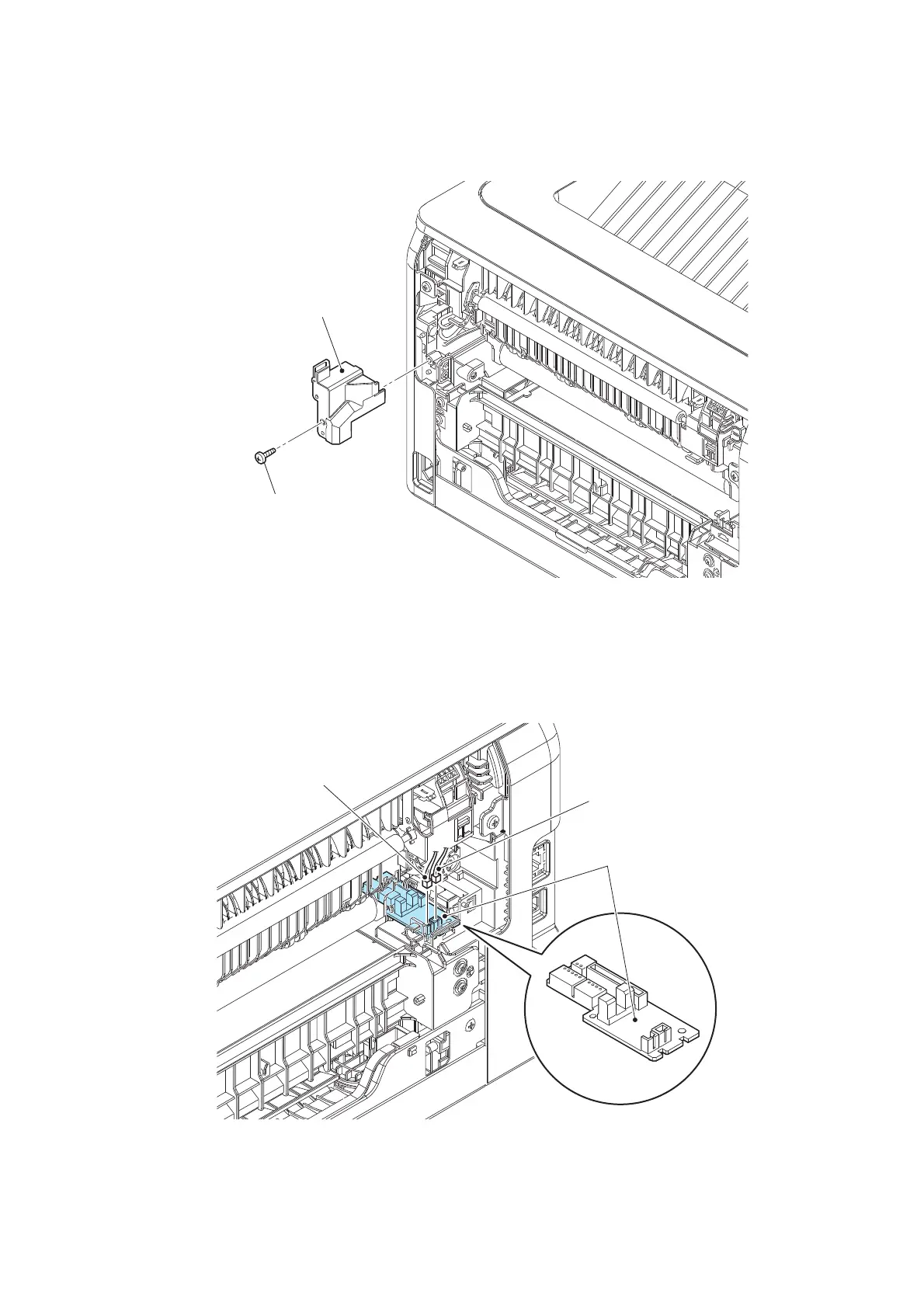

(4) Remove the Taptite bind B M3x10 screw to remove the Fuser cover R.
Fig. 3-11
(5) Disconnect the Center thermistor harness and the Side thermistor harness from the Eject
sensor PCB.
Fig. 3-12
Fuser cover R
Taptite bind B M3x10
<Back side>
Center thermistor harness
Side thermistor harness
Eject sensor PCB
<Back side>
