(5) Slide the Registration sensor film in the direction of the arrow to remove it from the
Registration mark sensor ASSY.
(6) Release the Registration mark sensor L harness from the securing fixtures. Slide the
Registration mark sensor L PCB in the direction of the arrow while pushing the Boss to
remove it from the Registration mark sensor ASSY.
(7) Release the Registration mark sensor R harness from the securing fixtures. Slide the
Registration mark sensor R PCB in the direction of the arrow while pushing the Boss to
remove it from the Registration mark sensor ASSY.

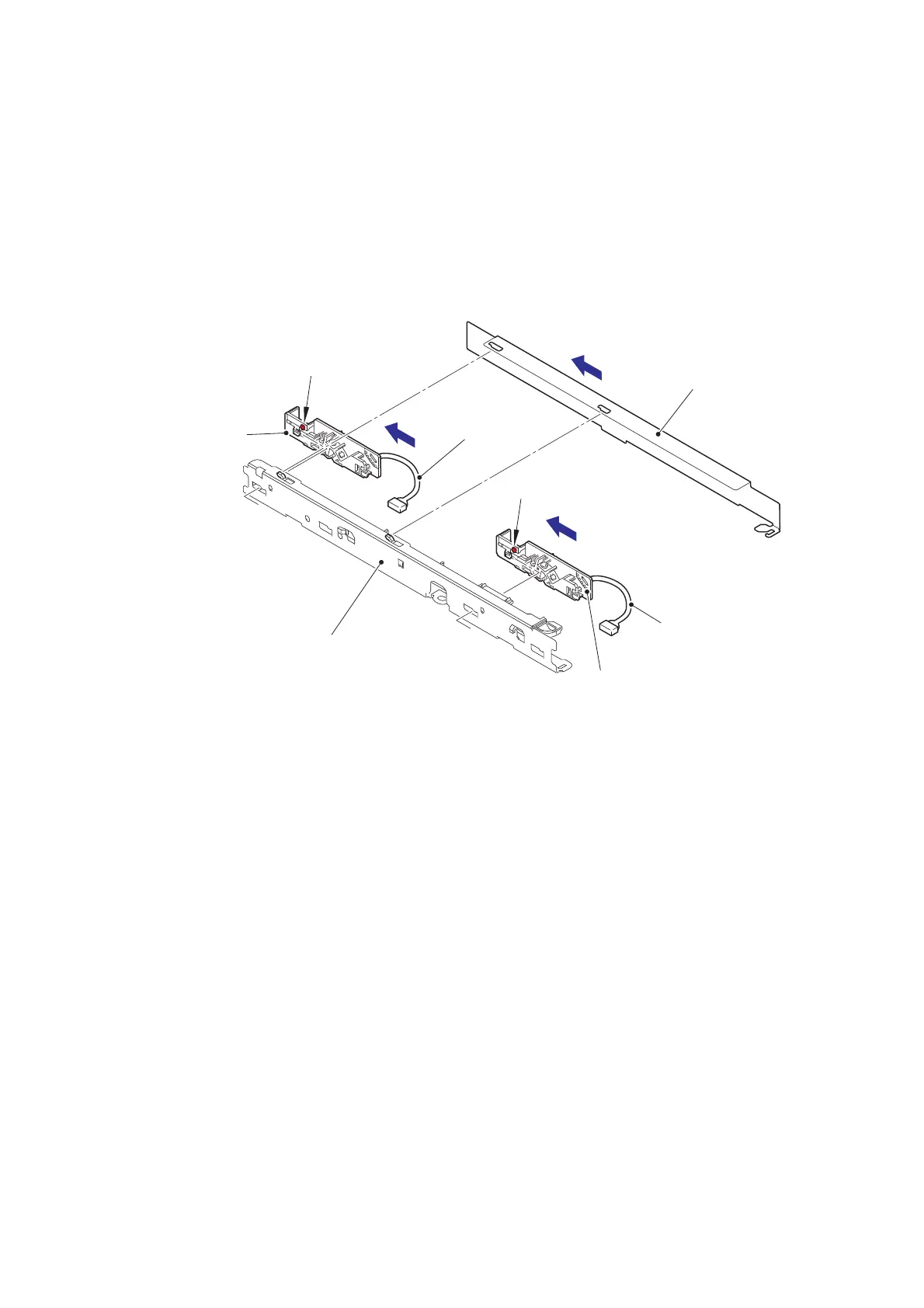

Fig. 3-75
Harness routing: Refer to “7. Registration mark sensor ASSY, Eject sensor PCB”.
Registration mark
sensor L harness
Registration sensor film
Registration mark
sensor R PCB
Registration mark
sensor R harness
Registration mark sensor L PCB
Registration mark sensor ASSY
Boss
Boss
