■ Printing of misregistration correction chart
< Operating Procedure >
(1) For models with touch panel
Press the [6] twice in the initial state of the maintenance mode. “REGISTRATION” is
displayed on the LCD.
For models without touch panel
Press the [▲] or [▼] in the initial state of maintenance mode to display
“MAINTENANCE 66” on the LCD, and press the [OK]. “REGISTRATION” is displayed
on the LCD.
(2) Press the [▲] or [▼] to display “PRINT CHART” on the LCD.
(3) Press the [SET] or [OK]. “PRINTING” is displayed on the LCD, and misregistration
correction chart (see the figure below) is printed. When printing is finished, “PRINT
CHART” is displayed on the LCD.
(4) Press the [X] or [Cancel], and the machine returns to the initial state of maintenance
mode.

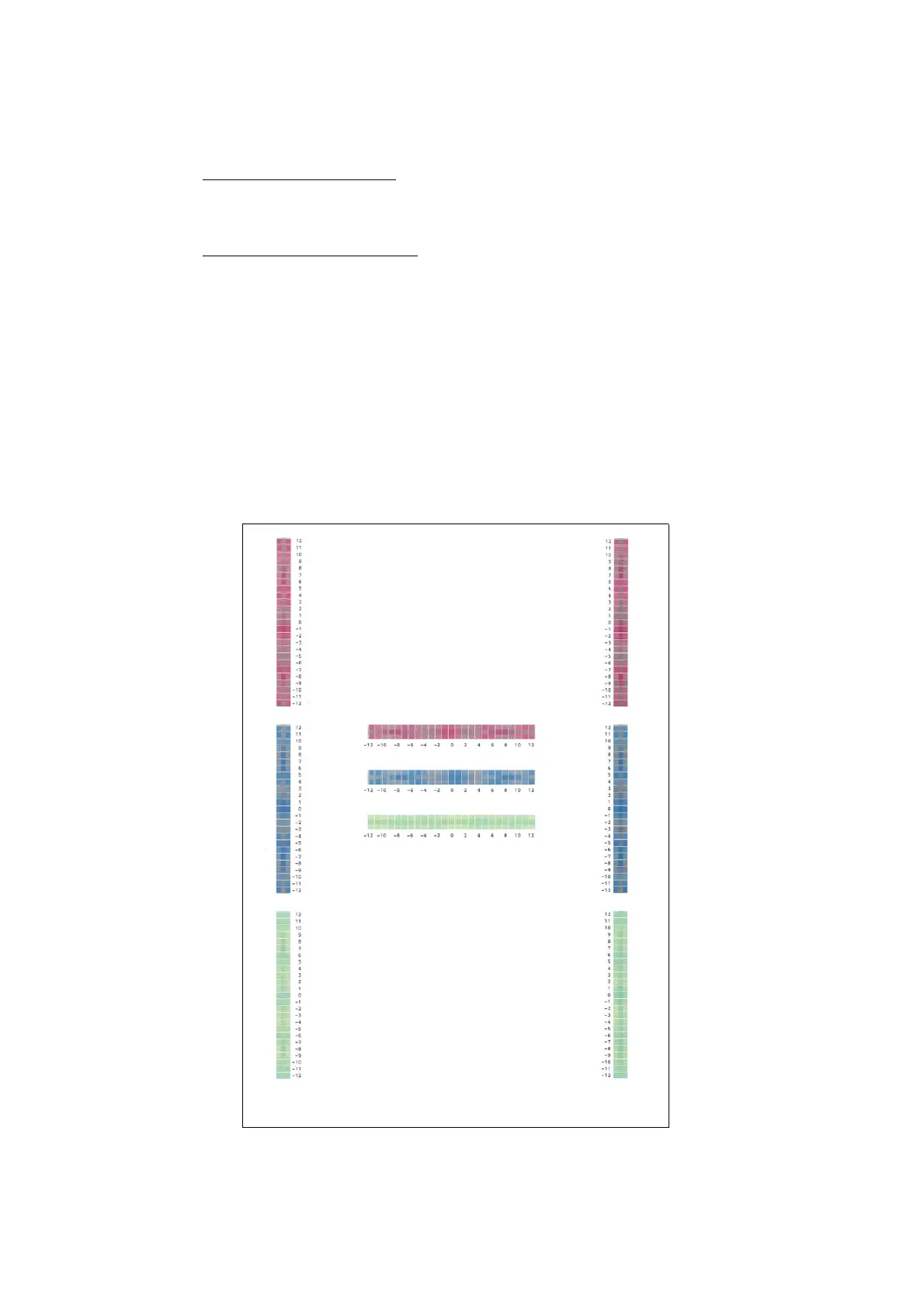

■ Misregistration correction chart
Fig. 5-9
17
28
39
4
5
6
