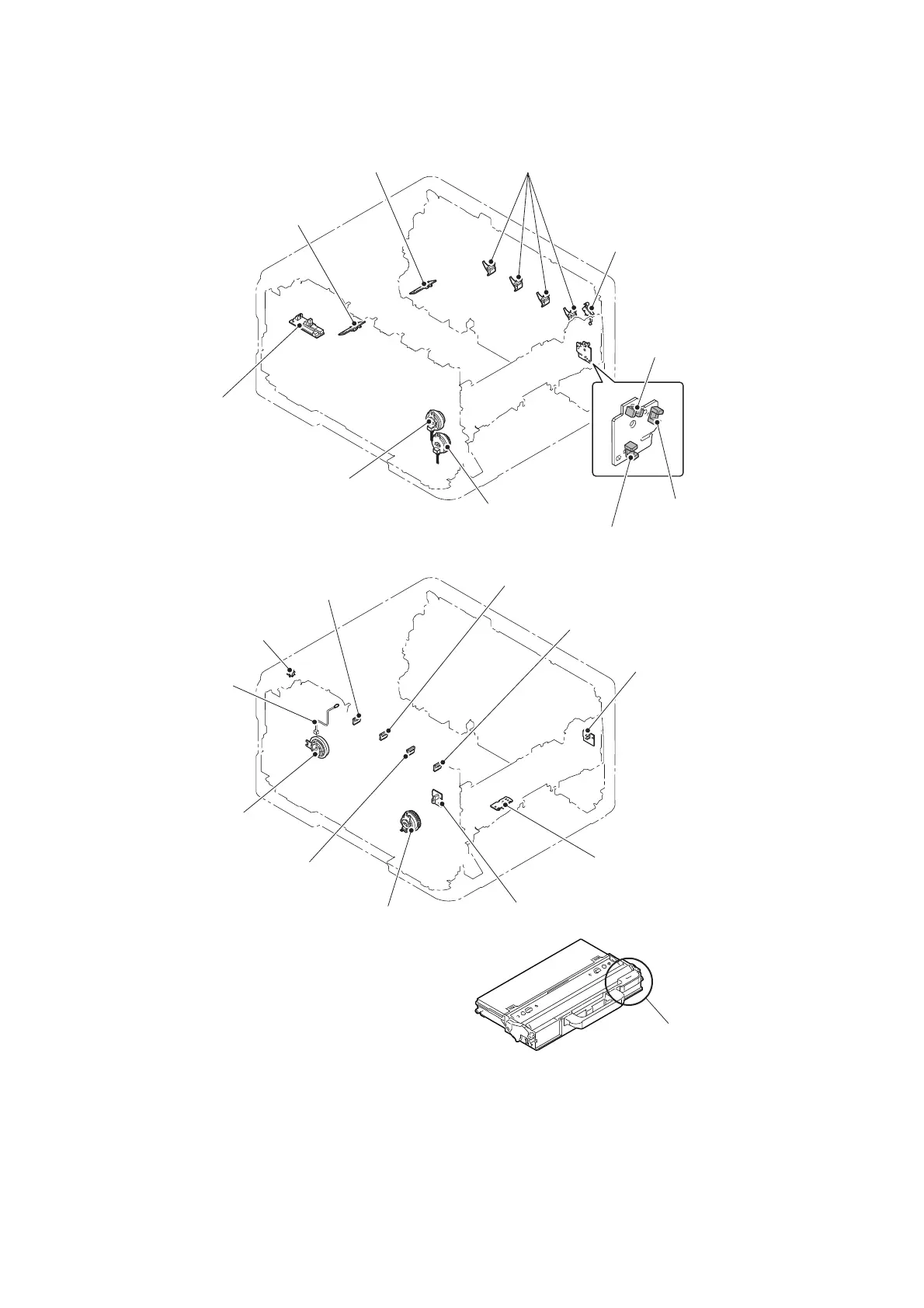

■ Location of sensors and clutches
Fig. 2-3
Top cover sensor
Develop release sensor
T1 paper feed sensor
Registration mark sensor R
Registration mark sensor L
Registration clutch
Back cover sensor
Internal temperature
sensor
Develop release clutch K
Develop release clutch
Registration front sensor
Registration rear
sensor
T1 pick-up clutch
Eject sensor /
Fuser cover sensor
Cartridge sensor C
Cartridge sensor K
Cartridge sensor Y
Cartridge sensor M
Waste toner sensor
External temperature/humidity sensor
New toner sensors
Manual feed paper empty sensor
(Not used in the MP models)
