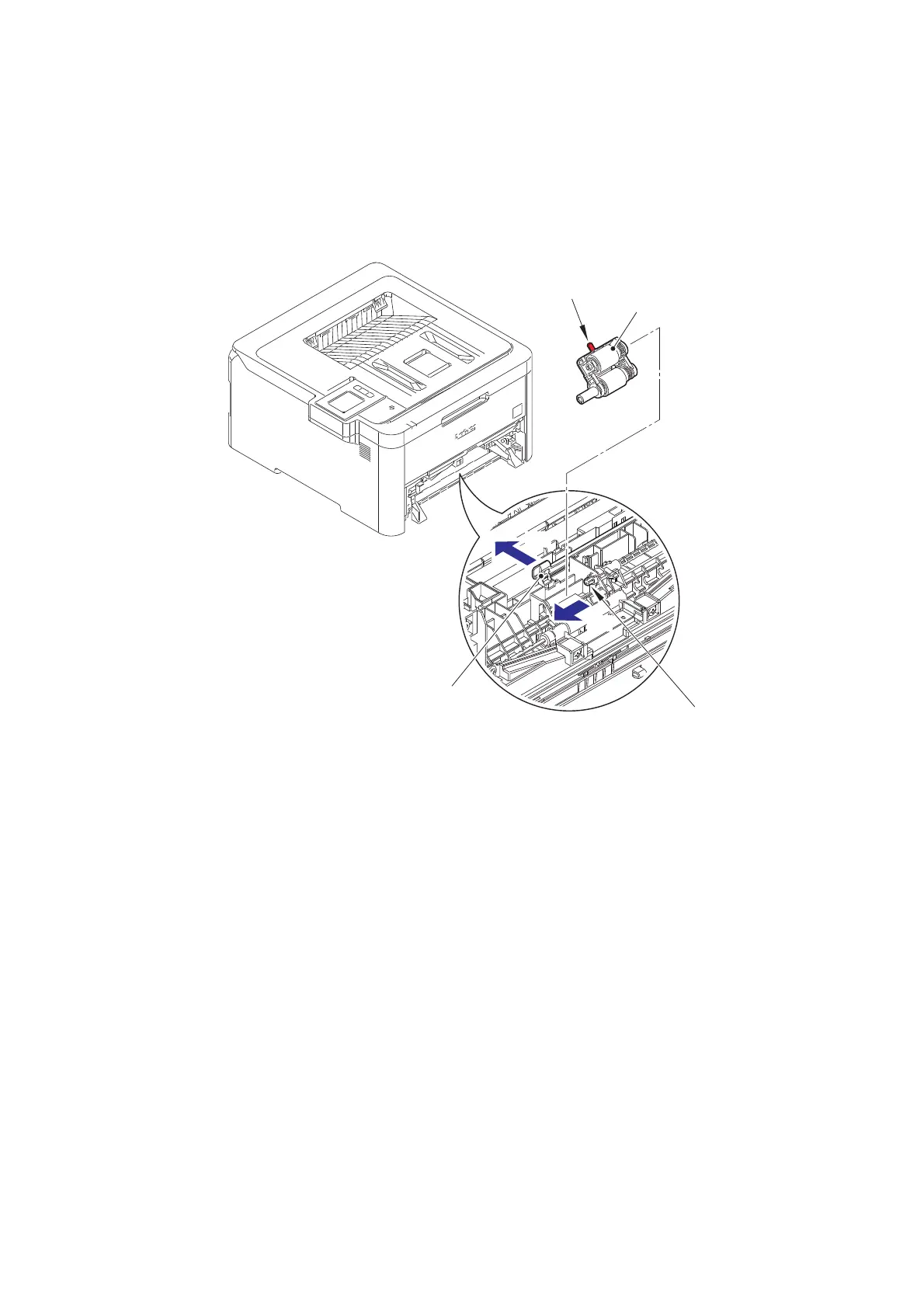

(4) Push the Lift arm in the direction of arrow A, and rotate the Roller holder ASSY to release
the Boss. Slide the Roller holder ASSY in the direction of arrow B to remove it from the
Shaft, and remove the Roller holder ASSY from the machine.
Fig. 7-14
(5) After replacing the PF kit 1, reset the counter.
(Refer to “1.3.28 Reset counters for consumable parts (Function code 88)” in Chapter 5.)
Boss
Roller holder ASSY
Shaft
Lift arm
A
B
<Bottom side>
