Setting Up the P-touch
3
1

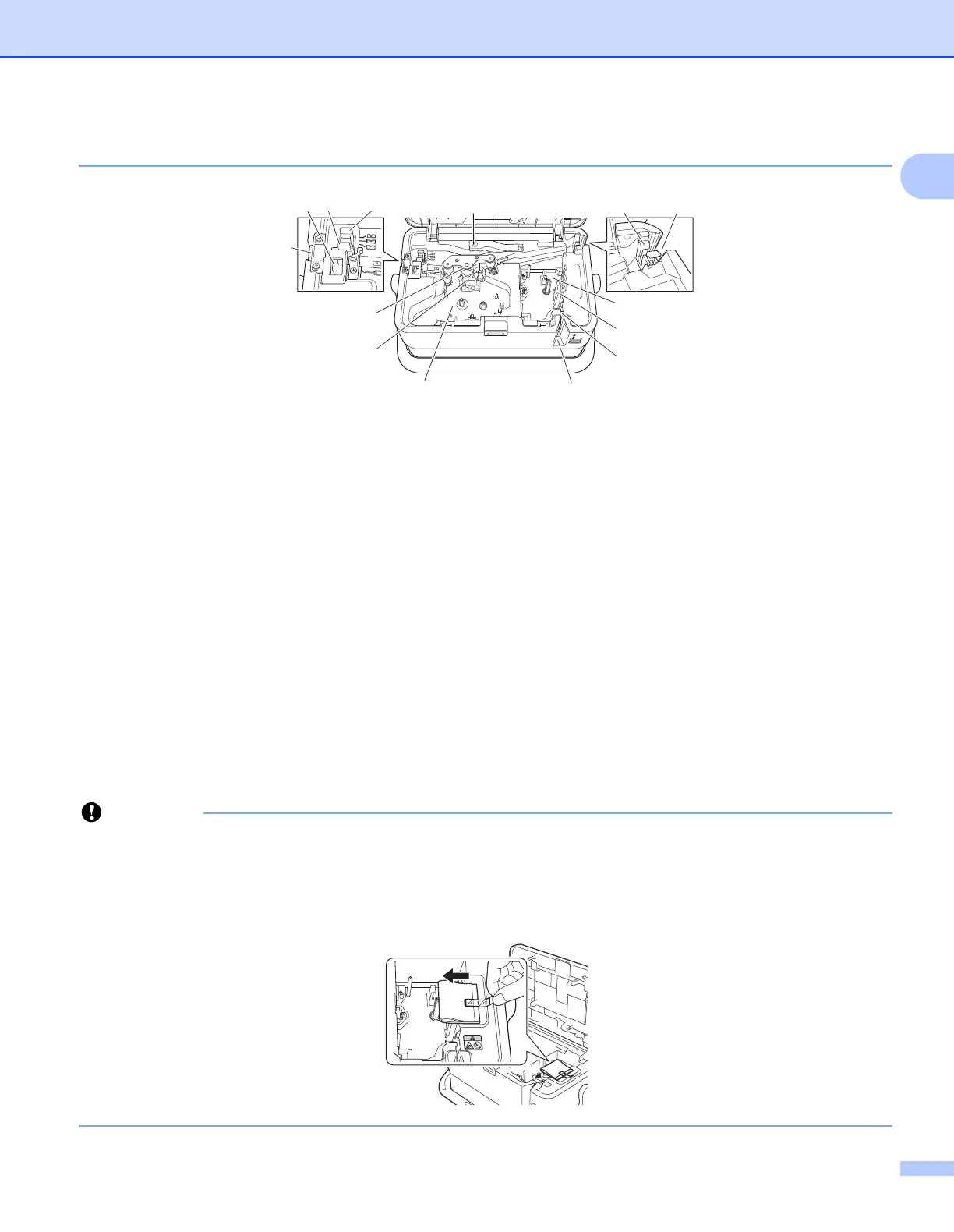

Inside 1
1 Tube release lever
2 Tube half-cut adjuster
3 Tube cutter board
4 Tube cutter
5 Tube exit slot
6 Platen roller
7 Print head (for tube)
8 Ribbon cassette compartment (for tube)
9 Tape exit slot
10 Tube cleaner
11 Tube insert slot
12 Tape cassette compartment
13 Print head (for tape)
14 Tape cutter unit
Before using the P-touch, make sure you remove the protective material according to the following
procedure.
1 Press the cover open button to open the top cover.
2 Pull the tape to remove the tape together with the protective material.
1234
5
8
6
7
9
10
13
12
14
11
