Connecting the Power Supply 1

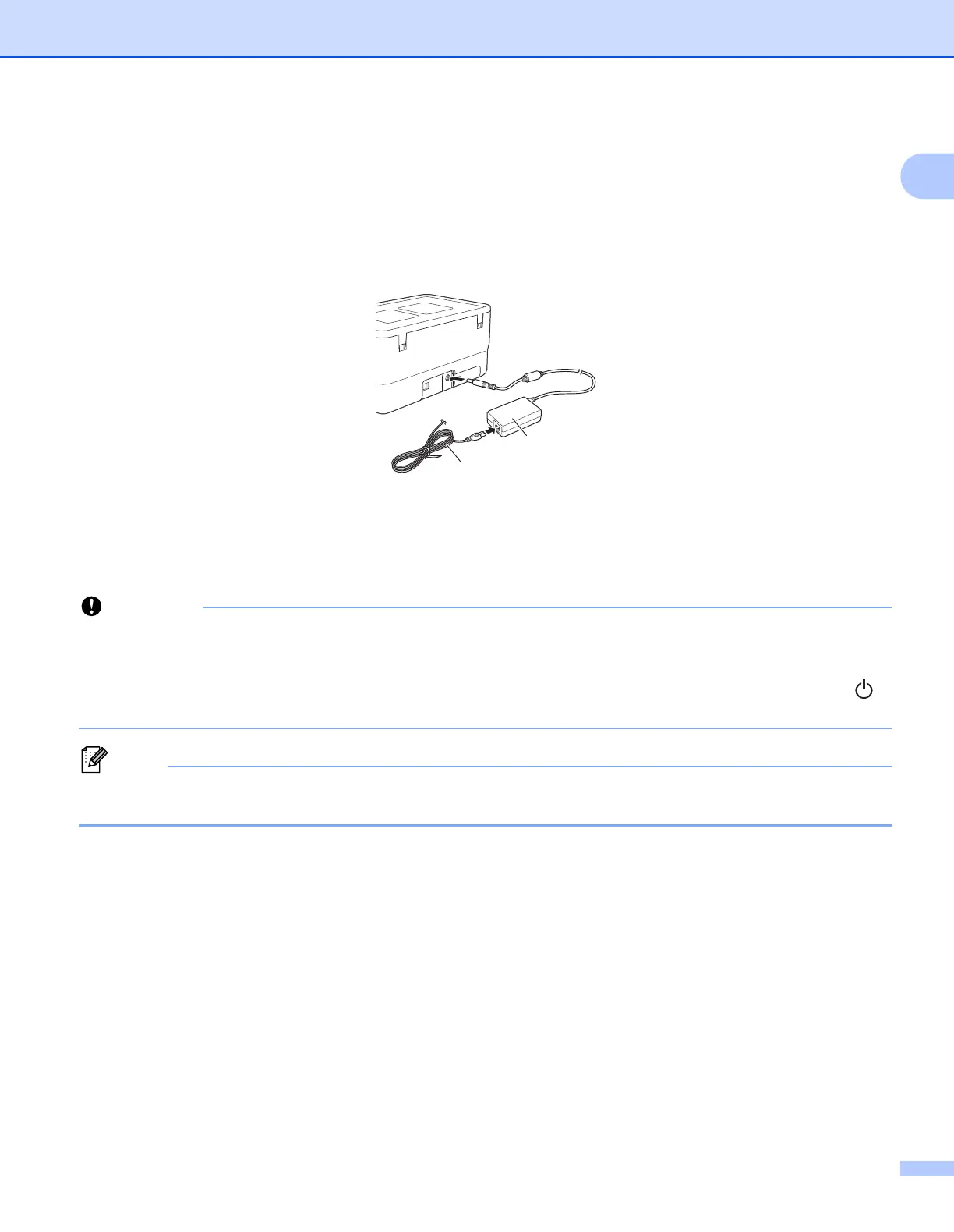

Use the AD9100ESA (AC adapter) for this P-touch. Connect the AC adapter directly to the P-touch.
a Insert the plug on the AC adapter cord into the AC adapter socket marked DC IN 24 V on the P-touch.
b Insert the plug on the power supply cord into the AC adapter.
1 AC adapter
2 Power supply cord
c Insert the power supply plug into a standard electrical socket.
• Turn the P-touch off before disconnecting the AC adapter.
• Do not pull or bend the AC adapter cord and power supply cord.
• After the power supply plug is inserted into the electrical socket, it may take a few seconds until the
(Power) button is enabled.
To safeguard and backup the P-touch memory, when the power supply is unplugged it is recommended
to leave the rechargeable Li-ion batteries (optional: PA-BT-4000LI), installed in the P-touch.
