Technical Manual Version 001 BRUKER BIOSPIN 5 (55)
1
Introduction 1
Scope of this Manual 1.1
The DPP1 (Digital Pre-emphasis Board 1) is a Customer Replaceable Unit (CRU)
used with Bruker AQS/3 type spectrometers with IPSO. This manual is intended
for trained service and technical personnel and includes instructions on the instal
-
lation and handling of the DPP1, as well as other detailed technical specifications
and information.
The DPP1, is a standard PCI expansion card. It modifies the data stream sent by
the gradient controller (G–Controller) to the gradient amplifier. The DPP1 is super
-
vised by a software driver running under LINUX and has to be mounted in an PCI
environment (see
"Installation and Handling" on page 9).

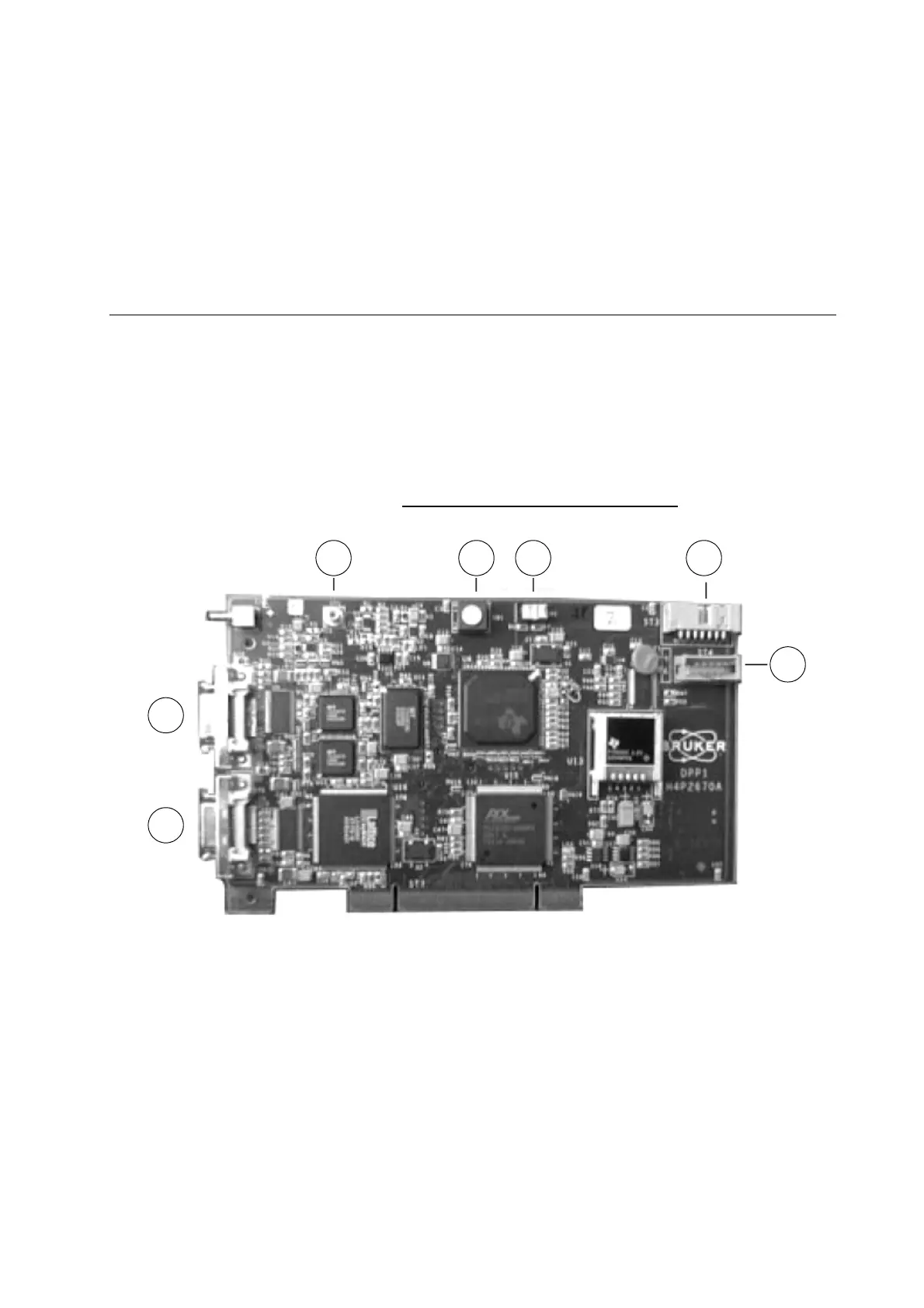

Figure 1.1. Top View of the DPP1
1. Input from the Gradient Controller
2. Output to the Gradient Amplifier
3. Next Value Clock Input
4. Reset Button
1
2
3 4 5 6
7
5. DSP Emulation Switch
6. DSP JTAG Connector
7. JTAG Programming/Test Connector
